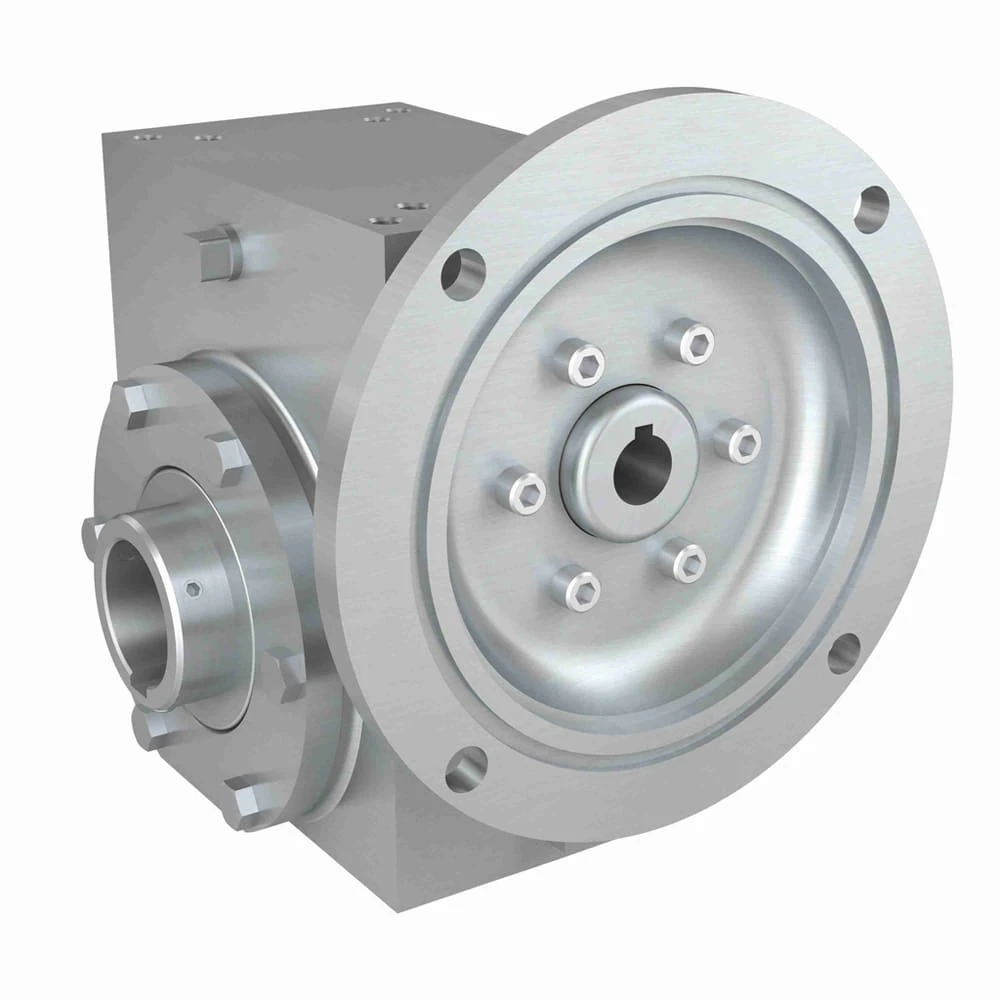

HUB CITY 0270-08301 Worm Reducer, 0.217 Hp, 1.500 Inch I.D, 0.625 Inch O.D, Stainless Steel | AY4UBT

HUB CITY 0270-08301 Worm Reducer, 0.217 Hp, 1.500 Inch I.D, 0.625 Inch O.D, Stainless Steel

Item: AY4UBT

Model: 0270-08301

In Stock

Get it by Thursday, Apr 16

£2627.93/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.06"
Center Distance Range	1" to 3 1/4"
Frame Size	56C
Gear Type	Worm Right Angle
Housing Material	Stainless Steel
Hp Range	0 hp to 1/2 hp, 1/3 hp
Input Dia.	5/8"
Input Style	C Face Quill
Keyway Size	3/16" x 3/32"
Max. Input Hp	0.217 hp
No. Of Gear Reductions	1
Output Dia.	1 1/2"

Output Rpm	17.5 RPM
Output Shaft	Hollow Bore
Output Shaft Direction	Left Or Right
Output Torque Range	250 lbs.-in. to 500 lbs.-in.
Product Line	Stainless Steel Worm Gear Drive
Product Type	Right Angle
Ratio	100:1
Ratio Range	100:1 to 250:1
Service Factor	1
Style	A
Torque Rating	439 lbs.-in.

Product Details

Shipping Information

Height	27.94
Length	27.94

Width	22.86
Weight	13.500000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	ratio	motor frame size	output	output diameter	frame size	output rpm	gear type	Price (ex. VAT)	Cart
A	0270-08232	2.464 hp	10:1	-	-	-	56C	175 RPM	Worm Right Angle	2,085.66
B	0270-08233	1.887 hp	15:1	-	-	-	56C	116.7 RPM	Worm Right Angle	2,189.94
C	0270-08234	1.584 hp	20:1	-	-	-	56C	87.5 RPM	Worm Right Angle	2,189.94
D	0270-08236	1.129 hp	30:1	-	-	-	56C	58.3 RPM	Worm Right Angle	2,085.66
E	0270-08237	0.916 hp	40:1	-	-	-	56C	-	Worm Right Angle	2,189.94
F	0270-08238	0.769 hp	50:1	-	-	-	56C	35 RPM	Worm Right Angle	2,189.94
G	0270-08239	0.674 hp	60:1	-	-	-	56C	29.2 RPM	Worm Right Angle	2,189.94
