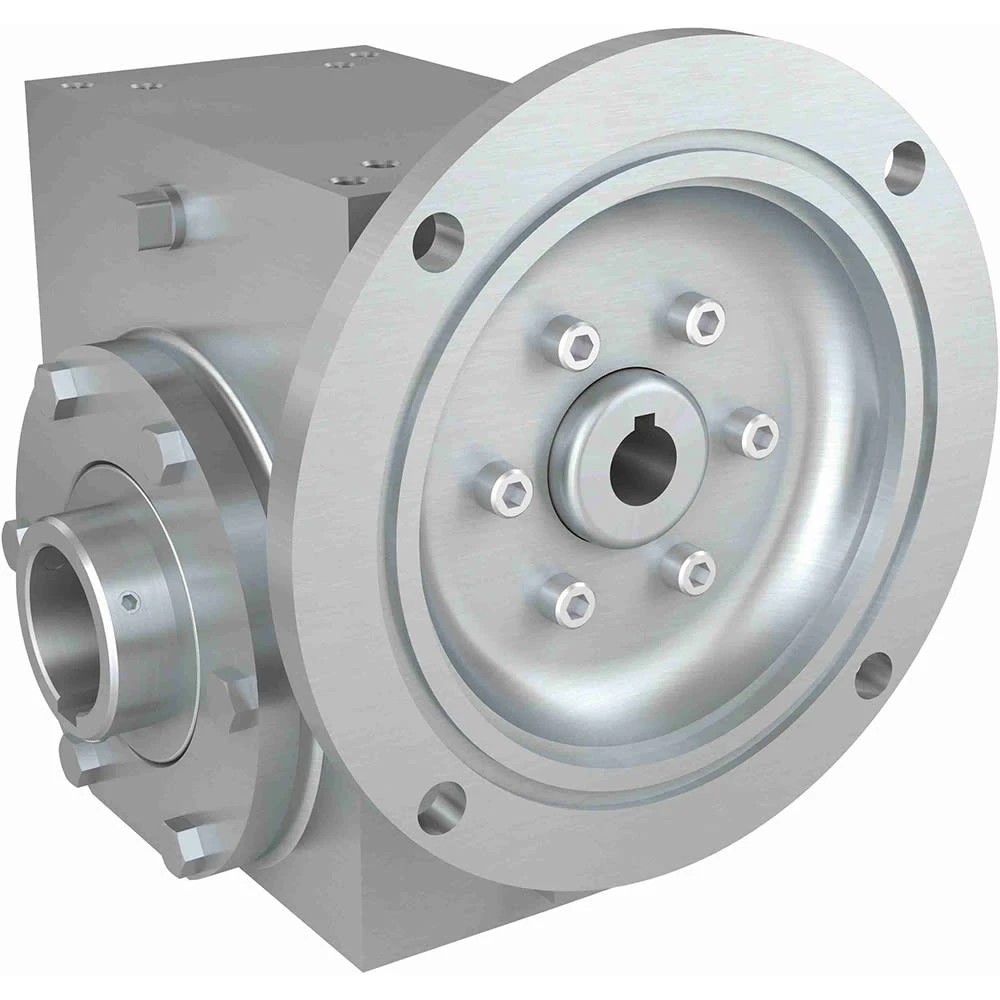

HUB CITY 0270-08275 Worm Reducer, 0.674 Hp, 1.250 Inch I.D, 0.625 Inch O.D, Stainless Steel

Item: AN8AQZ
Model: 0270-08275
In Stock

Get it by Friday, Apr 17

£2627.93/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Center Distance 2.06"
Center Distance Range 1" to 3 1/4"
Efficiency 64.5%
Finish Polished
Frame Size 56C
Gear Ratio 60:1
Gear Type Worm Right Angle
Housing Material Stainless Steel
Hp Range 1/2 hp to 1 hp
Input Dia. 5/8"
Input Hp 337/500 hp
Input Keyway Size 3/16" x 3/32"
Input Max. Speed 1750 RPM
Input Style C Face Quill
Input Type C Face Quill
Keyway Size 3/16" x 3/32"
Lubrication Type PAG Synthetic Oil
Material Stainless Steel
Material Grade Grade 316
Max. Input Hp 0.674 hp
No. Of Gear Reductions 1
Output Dia. 1 1/4"
Output Keyway Size 1/4" x 1/8"
Output Max. Speed 29.2 RPM
Output Rpm 29.2 RPM
Output Shaft Hollow Bore
Output Shaft Direction Left Or Right
Output Torque Range 500 lbs.-in. to 1000 lbs.-in.
Output Torque Rating 940 lbs.-in.
Output Type Hollow Bore
Product Line Stainless Steel Worm Gear Drive
Product Type Right Angle
Ratio 60:1
Series SSW210 Series
Service Factor 1
Style A
Torque Rating 940 lbs.-in.
Type Right Angle Single Reduction Style A

Product Details

Shipping Information

Height 27.94
Length 27.94
Width 22.86
Weight 13.500000
