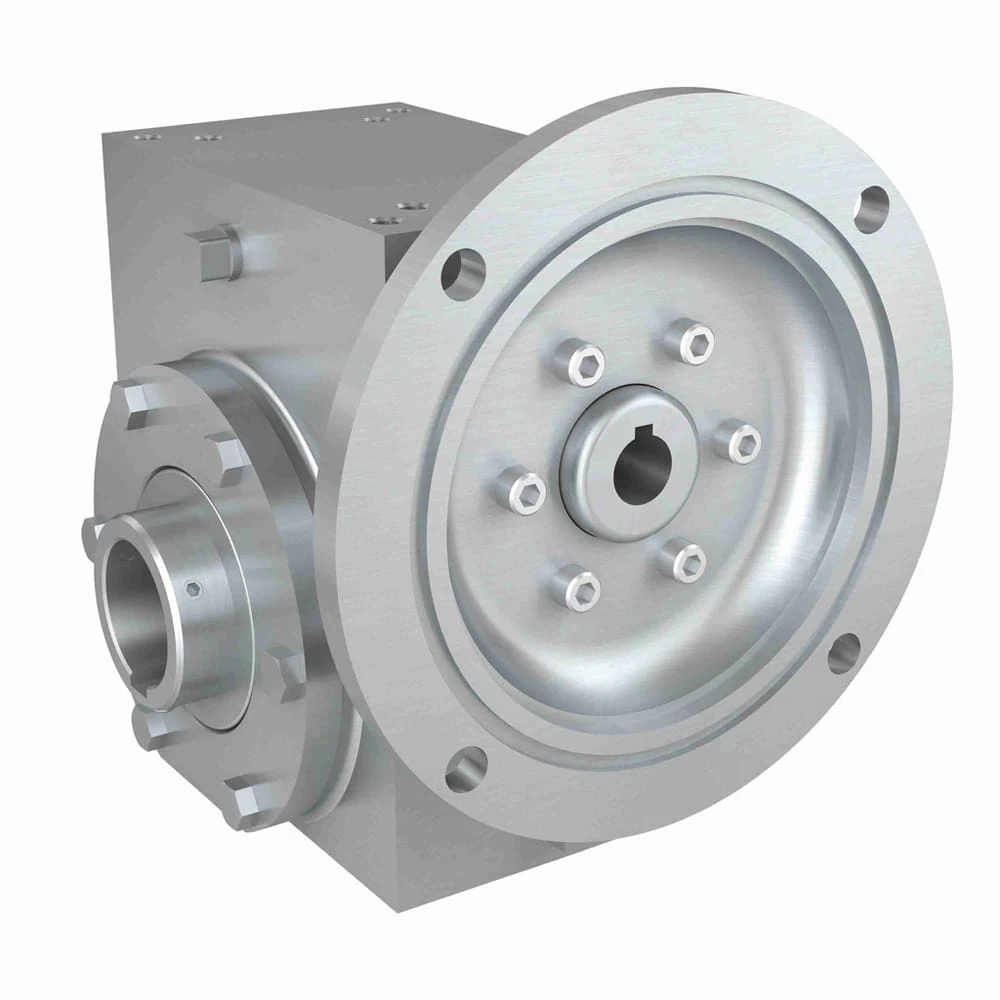

HUB CITY 0270-08257 Worm Reducer, 1.887 Hp, 1.188 Inch I.D, 0.625 Inch O.D, Stainless Steel
Item: AX9KJN
Model: 0270-08257
In Stock
Get it by Wednesday, Apr 15
£2627.93/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.06" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 1.887 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1.188" |
| Output Rpm | 116.7 RPM |
|---|---|
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left Or Right |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 897 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 27.94 |
| width | 22.86 |
|---|---|
| weight | 13.500000 |
Related Products
| Style | Model | max. input hp | ratio | motor frame size | output | output diameter | frame size | output rpm | gear type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-08232 | 2.464 hp | 10:1 | - | - | - | 56C | 175 RPM | Worm Right Angle | 2,085.66 | |
| B | 0270-08233 | 1.887 hp | 15:1 | - | - | - | 56C | 116.7 RPM | Worm Right Angle | 2,189.94 | |
| C | 0270-08234 | 1.584 hp | 20:1 | - | - | - | 56C | 87.5 RPM | Worm Right Angle | 2,189.94 | |
| D | 0270-08236 | 1.129 hp | 30:1 | - | - | - | 56C | 58.3 RPM | Worm Right Angle | 2,085.66 | |
| E | 0270-08237 | 0.916 hp | 40:1 | - | - | - | 56C | - | Worm Right Angle | 2,189.94 | |
| F | 0270-08238 | 0.769 hp | 50:1 | - | - | - | 56C | 35 RPM | Worm Right Angle | 2,189.94 | |
| G | 0270-08239 | 0.674 hp | 60:1 | - | - | - | 56C | 29.2 RPM | Worm Right Angle | 2,189.94 |
