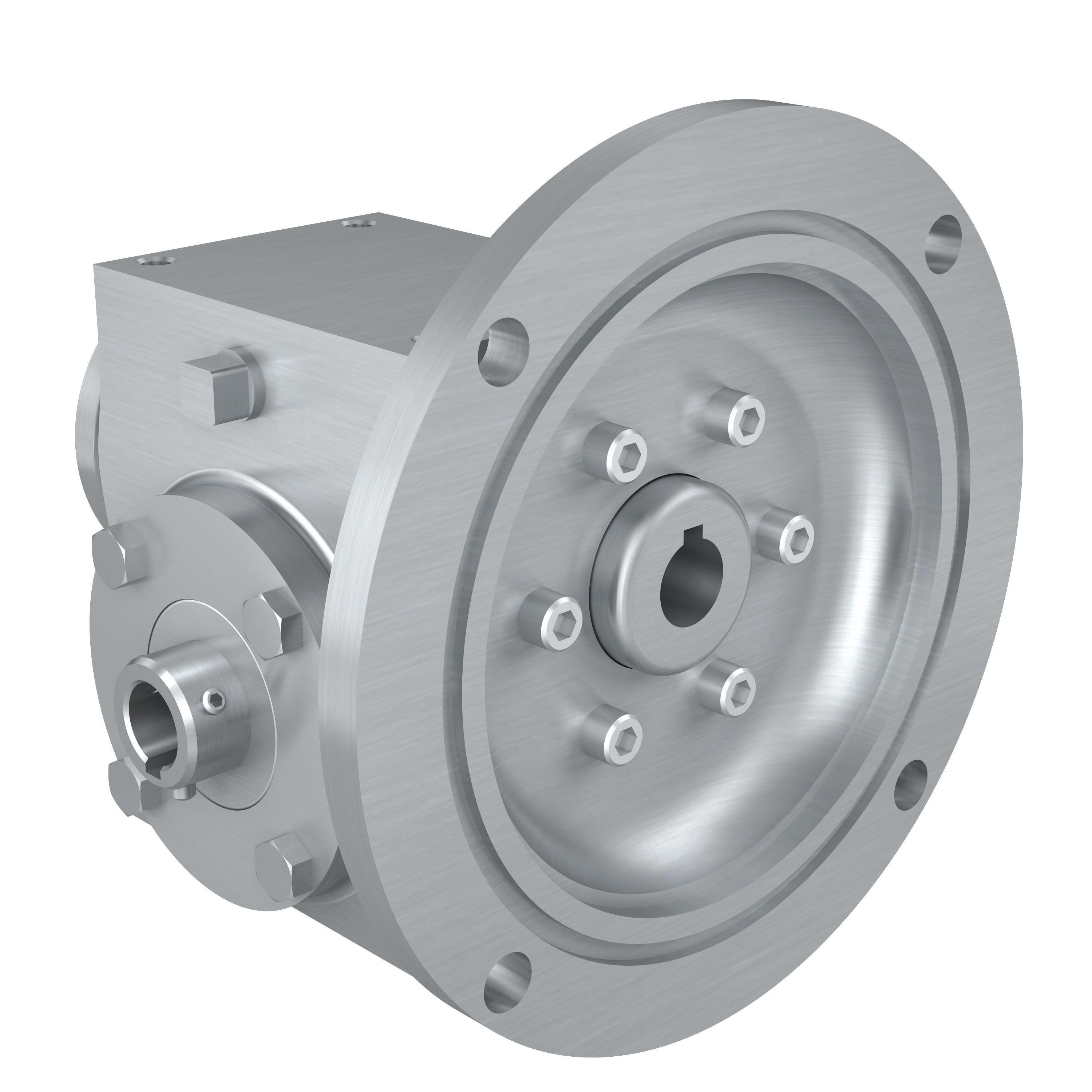

HUB CITY 0270-07275 Worm Reducer, 0.445 Hp, 0.625 Inch I.D, 0.625 Inch O.D, Stainless Steel
Item: AX6KHR
Model: 0270-07275
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 1.33" |
|---|---|
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Input Diameter | 5/8" |
| Input Hp | 89/200 hp |
| Input Style | C Face Quill |
| Keyway | 3/16" x 3/32" |
| Motor Frame Size | 56C |
| Mounting Style | A |
| Output | 70 RPM |
| Output Diameter | 5/8" |
|---|---|
| Output Shaft | Hollow Bore |
| Output Shaft Direction | Left, Right |
| Output Torque Rating | 309 lbs.-in. |
| Ratio | 25:1 |
| Reduction | Single |
| Service Factor | 1 |
| Standard_logo | Ip69K.Png, Usda.Png |
| Style | A |
Product Details
Speed Reducer
Shipping Information
| height | 27.94 |
|---|---|
| length | 27.94 |
| width | 22.86 |
|---|---|
| weight | 8.100000 |
Related Products
| Style | Model | ratio | motor frame size | output | gear type | max. input hp | center distance | input style | housing material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-07270 | 5:1 | 56C | 350 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | 1,638.77 | |
| B | 0270-07277 | 40:1 | 56C | 43.75 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | 1,638.77 | |
| C | 0270-07314 | 50:1 | 56C | 35 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | 1,638.77 | |
| D | 0270-07282 | 5:1 | 140TC | 350 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | 1,529.52 | |
| E | 0270-07315 | 60:1 | 56C | 29.2 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | - |
RFQ
|
| F | 0270-07280 | 80:1 | 56C | 21.9 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | - |
RFQ
|
| G | 0270-07325 | 40:1 | 140TC | 43.75 RPM | Worm Right Angle | - | 1.33" | C Face Quill | Stainless Steel | - |
RFQ
|
