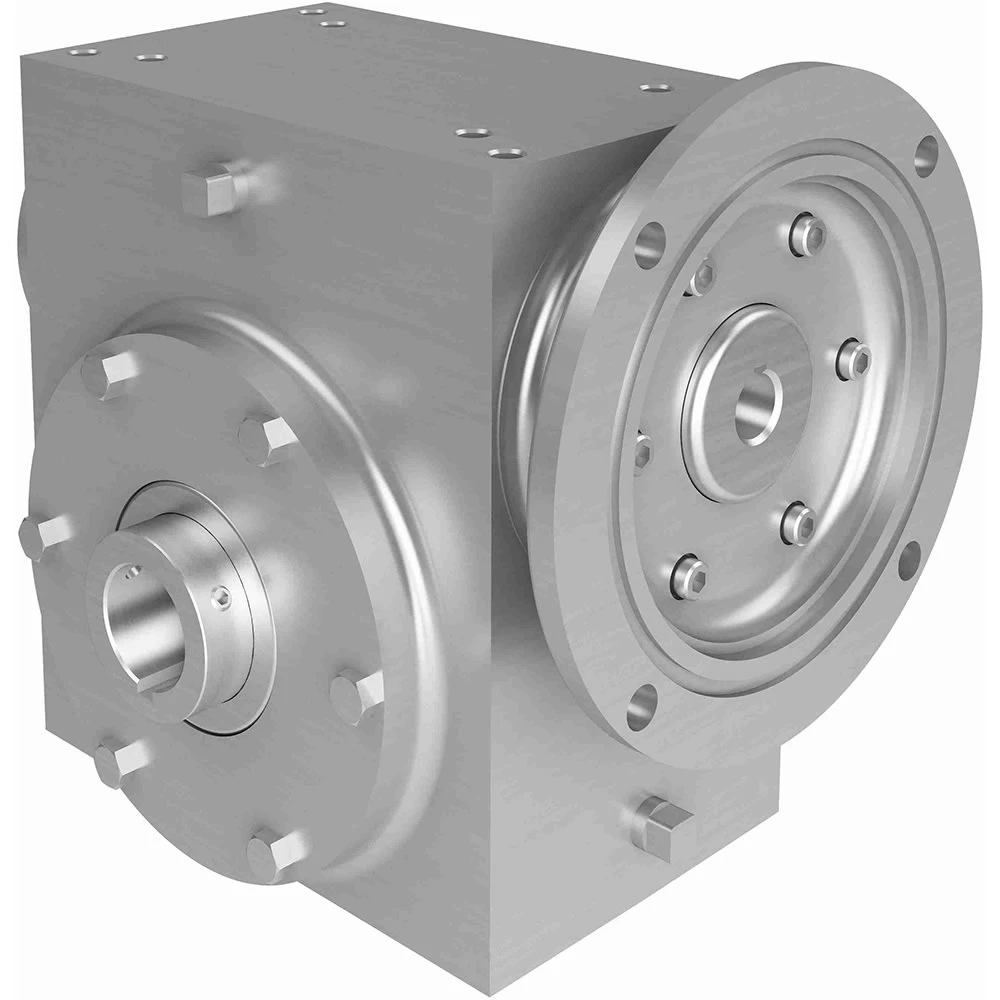

HUB CITY 0270-06766 Worm Reducer, 1.216 Hp, 0.625 Inch I.D, 1.438 Inch O.D, Stainless Steel
Item: AY2HJA
Model: 0270-06766
In Stock
Get it by Friday, Apr 17
£3,653.47/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.63" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Frame Size | 56C |
| Gear Type | Worm Right Angle |
| Housing Material | Stainless Steel |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 1.216 hp |
| Output Dia. | 1.438" |
| Output Rpm | 29.2 RPM |
|---|---|
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | Stainless Steel Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 60:1 |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 1805 lbs.-in. |
Shipping Information
| Height | 30.48 |
|---|---|
| Length | 40.64 |
| Width | 30.48 |
|---|---|
| Weight | 24.750000 |
Related Products
| Style | Model | max. input hp | ratio | motor frame size | output | output diameter | output rpm | frame size | gear type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-06763 | 2.145 hp | 30:1 | - | - | - | 58.3 RPM | 56C | Worm Right Angle | 2,635.96 | |
| B | 0270-06752 | 1.695 hp | 40:1 | - | - | - | 43.75 RPM | 56C | Worm Right Angle | 3,044.56 | |
| C | 0270-06760 | 3.614 hp | 15:1 | - | - | - | 116.7 RPM | 56C | Worm Right Angle | 3,044.56 | |
| D | 0270-06761 | 2.965 hp | 20:1 | - | - | - | 87.5 RPM | 56C | Worm Right Angle | 3,044.56 | |
| E | 0270-06753 | 1 21/50 hp | 50:1 | - | - | - | 35 RPM | 56C | Worm Right Angle | 2,635.96 | |
| F | 0270-06751 | 2.145 hp | 30:1 | - | - | - | 58.3 RPM | 56C | Worm Right Angle | 2,635.96 | |
| G | 0270-06714 | 2.487 hp | 25:1 | - | - | - | 70 RPM | 56C | Worm Right Angle | 3,044.56 |
