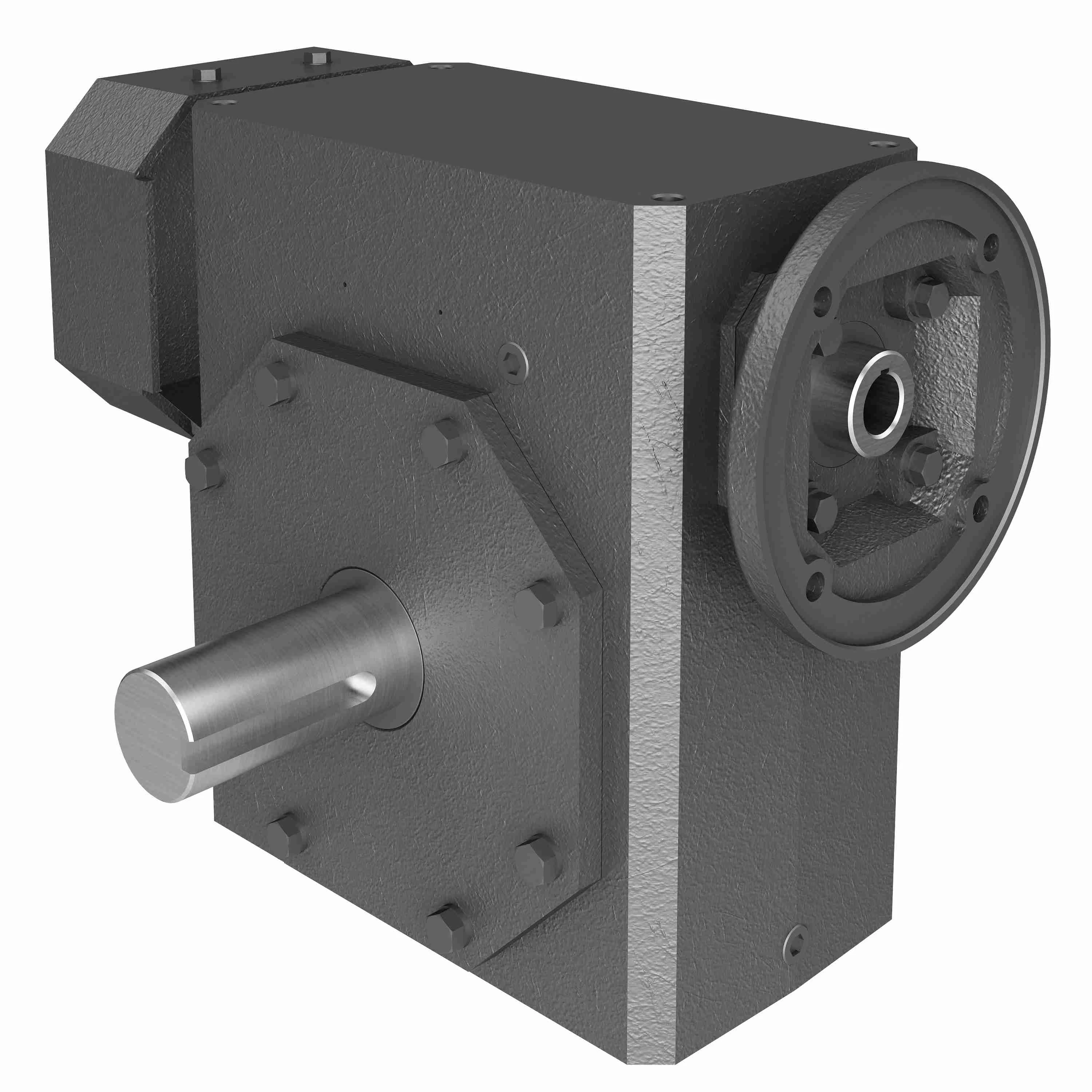

HUB CITY 0270-05250 Worm Reducer, 6.15 Hp, 1.125 Inch I.D, 2.500 Inch O.D, Cast Iron
Item: AY9LDH
Model: 0270-05250
In Stock
Get it by Thursday, Apr 16
£6881.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 6" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 180TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1 1/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 6 3/20 hp |
| Output Dia. | 2 1/2" |
| Output Rpm | 29.2 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Direction | Left |
| Output Torque Range | 5000 lbs.-in. to 10000 lbs.-in. |
| Product Datasheet | hub-city-0229-02480.pdf |
| Product Line | Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 60:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 9808 lbs.-in. |
Product Details
Shipping Information
| Height | 76.2 |
|---|---|
| Length | 121.92 |
| Width | 60.96 |
|---|---|
| Weight | 145.800000 |
