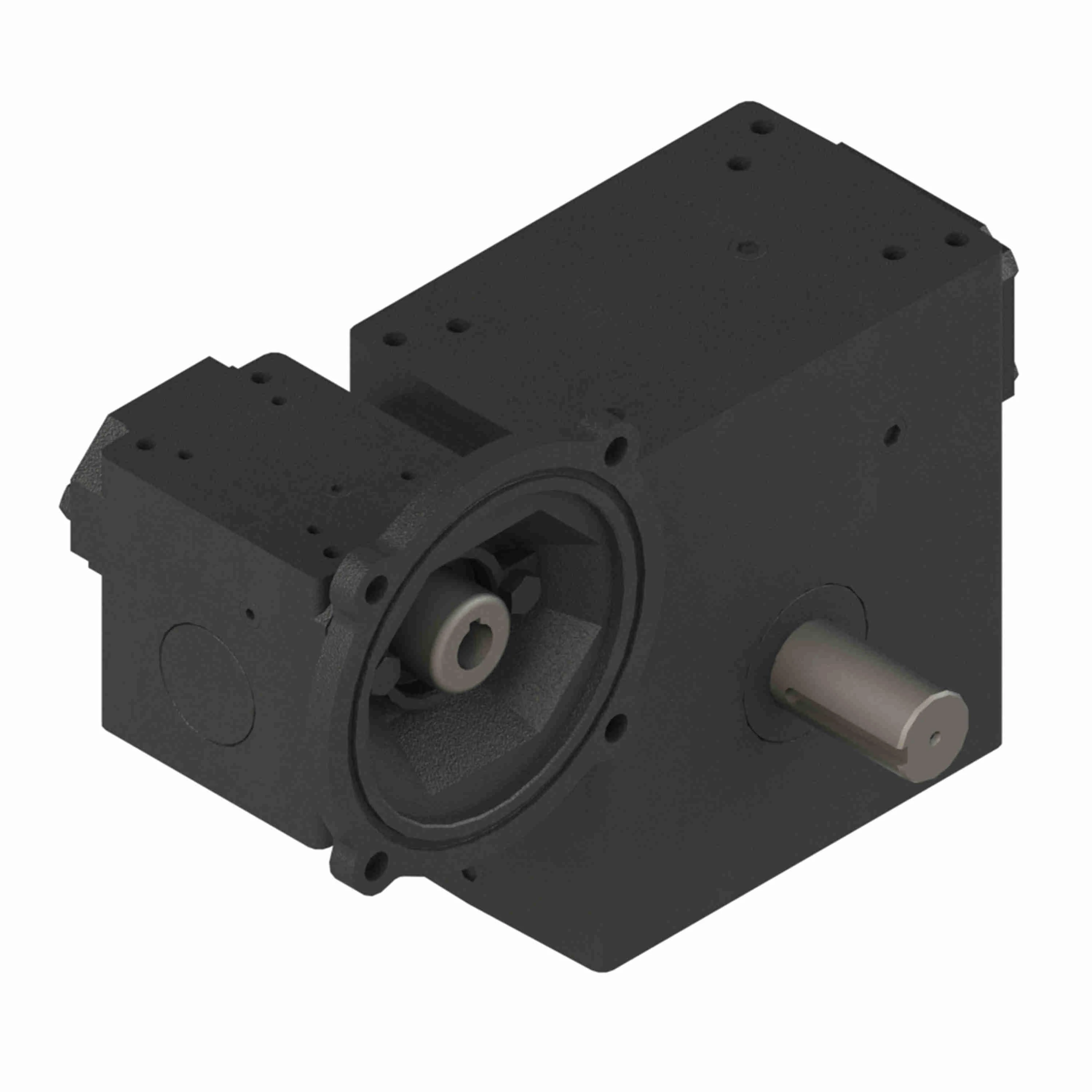

HUB CITY 0270-02598 Worm Reducer, 2.13 Hp, 2.750 Inch I.D, 1.125 Inch O.D, Cast Iron
Item: AY8FYE
Model: 0270-02598
In Stock
Get it by Friday, Apr 17
£11,072.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 7" |
|---|---|
| Center Distance Range | Above 3.25" |
| Gear Type | Double Worm |
| Height | 30 |
| Input Diameter | 1 1/8" |
| Input Style | C-Face Quill |
| Length | 48 |
| Material | Cast Iron |
| Max. Input Hp | 2.13 hp |
| Motor Frame Size | 180TC |
| Output Diameter | 2 3/4" |
| Output Rpm | 2.4 RPM |
|---|---|
| Output Torque | 33.682 lbs.-in. |
| Output Torque Range | 30 lbs.-in. to 40 lbs.-in. |
| Output Type | Shaft |
| Ratio | 750:01:00 |
| Ratio Range | 750:1 to 1000:1 |
| Series | GW7000 Series |
| Service Factor | 1 |
| Width | 24 |
| Ratio | 750:1 |
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 2.54 |
| Width | 2.54 |
|---|---|
| Weight | 216.900000 |
Related Products
| Style | Model | max. input hp | output torque | input style | output rpm | ratio | motor frame size | series | gear type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0270-02529 | 7.25 hp | 30.621 lbs.-in. | Shaft | 11.4 RPM | 150:01:00 | - | GW7000 Series | Double Worm | 9,027.61 | |
| B | 0270-02501 | 7.25 hp | 30.621 lbs.-in. | C-Face Quill | 11.4 RPM | 150:01:00 | 180TC | GW7000 Series | Double Worm | - |
RFQ
|
| B | 0270-02527 | 1.28 hp | 34.325 lbs.-in. | C-Face Quill | 1.2 RPM | 1500:01:00 | 56C | GW7000 Series | Double Worm | - |
RFQ
|
