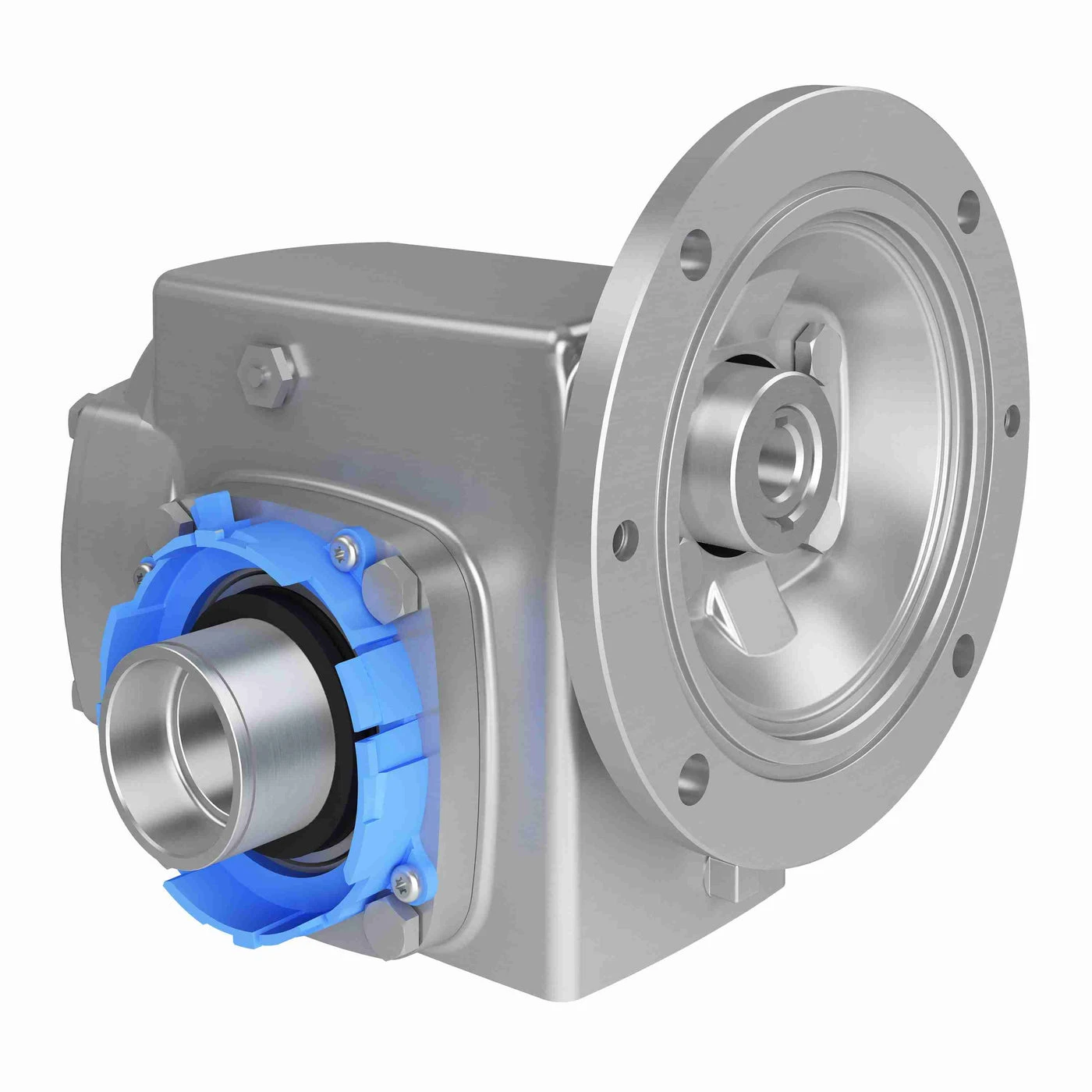

HUB CITY 0250-61113 Helical Hypoid Reducer, 1.17 HP, 0.876 Inch I.D, EK Mounting Type, Stainless Steel
Item: AY9LXL
Model: 0250-61113
In Stock
Get it by Thursday, Apr 16
£3107.83/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.509" |
|---|---|
| Frame Size | 140TC |
| Gear Drive Size | SSHERA35 |
| Housing Height | 5.93" |
| Housing Length | 7 1/5" |
| Housing Material | Stainless Steel |
| Housing Width | 6" |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 0.876" |
| Input Hp | 1 17/100 hp |
| Input Hp @ 1750 Rpm | 1.17 hp |
| Input Style | C Face Quill |
| Length Through Bore | 6" |
| Max. Input Hp | 1.17 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 30:1 |
| Output Rpm | 60.1 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Datasheet | hub-city-0250-61114.pdf |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 29.1:1 |
| Service Factor | 1 |
| Style | Ek |
| Torque Rating | 1100 lbs.-in. |
Product Details
Shipping Information
| Height | 27.94 |
|---|---|
| Length | 30.48 |
| Width | 25.4 |
|---|---|
| Weight | 15.750000 |
Related Products
| Style | Model | max. input hp | center distance | frame size | ratio | output rpm | input style | housing material | no. of gear reductions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-61163 | 5 7/50 hp | 3.263" | 56C | 15.6:1 | 112.2 RPM | C Face Quill | Stainless Steel | 2 | 3,458.69 | |
| B | 0250-61104 | 1 7/10 hp | 2.509" | 56C | 19.93:1 | 87.8 RPM | C Face Quill | Stainless Steel | 2 | 2,589.86 | |
| C | 0250-61105 | 1.17 hp | 2.509" | 56C | 29.1:1 | 60.1 RPM | C Face Quill | Stainless Steel | 2 | 3,053.93 | |
| D | 0250-61107 | 13/20 hp | 2.509" | 56C | 52.5:1 | 33.3 RPM | C Face Quill | Stainless Steel | 2 | 2,352.35 | |
| E | 0250-61167 | 1.53 hp | 3.263" | 56C | 52.5:1 | 33.3 RPM | C Face Quill | Stainless Steel | 2 | 3,141.50 | |
| F | 0250-61114 | 39/50 hp | 2.509" | 140TC | 43.53:1 | 40.2 RPM | C Face Quill | Stainless Steel | 2 | 2,589.86 | |
| G | 0250-61115 | 13/20 hp | 2.509" | 140TC | 52.5:1 | 33.3 RPM | C Face Quill | Stainless Steel | 2 | 2,589.86 |
