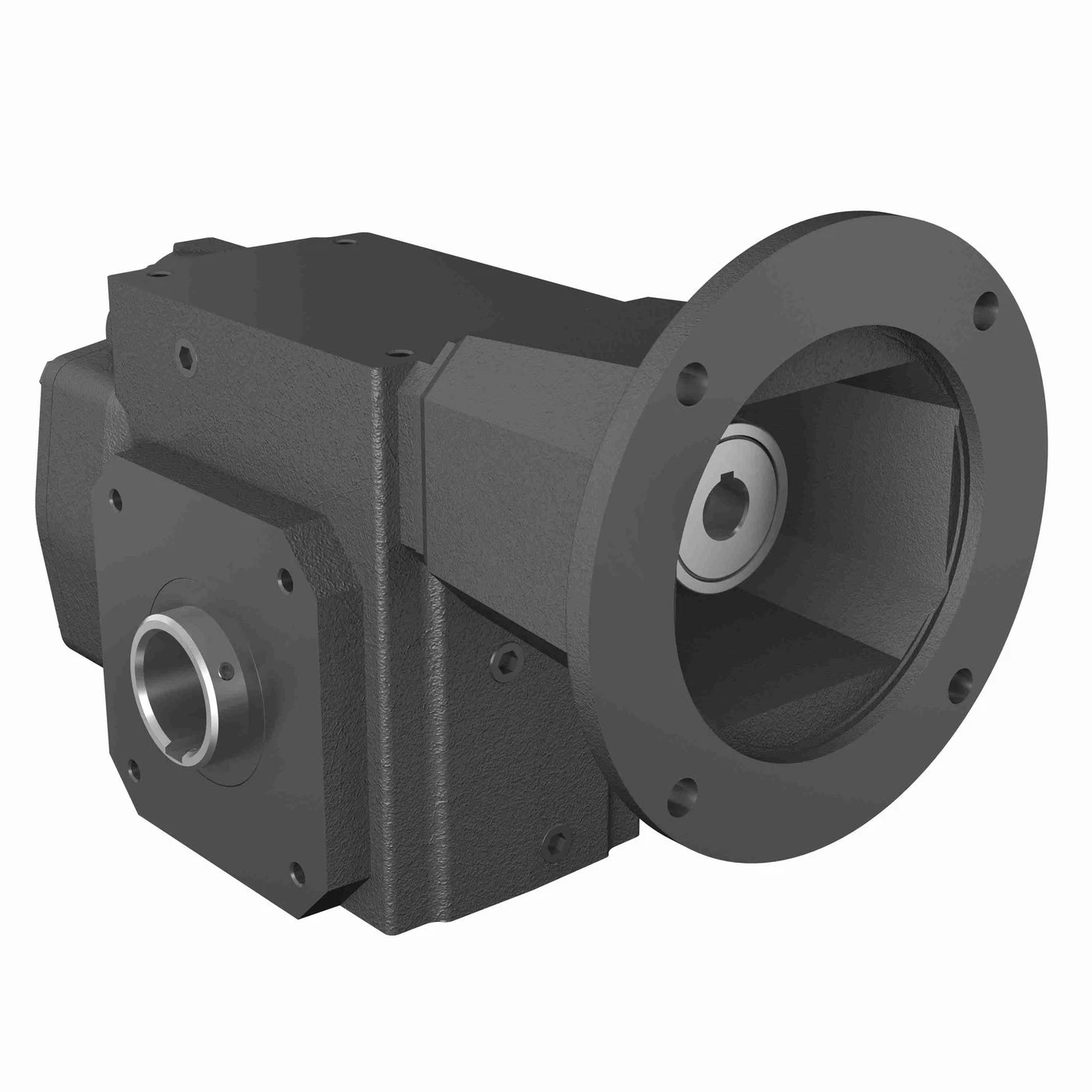

HUB CITY 0250-56608 Helical Hypoid Reducer, 0.58 HP, 0.876 Inch I.D, 1.188 Inch O.D, Cast Iron | AY9AYB

HUB CITY 0250-56608 Helical Hypoid Reducer, 0.58 HP, 0.876 Inch I.D, 1.188 Inch O.D, Cast Iron

Item: AY9AYB

Model: 0250-56608

In Stock

Get it by Thursday, Apr 16

£1473.04/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.509"
Frame Size	140TC
Gear Drive Size	HERA35
Housing Height	5 3/4"
Housing Length	7.19"
Housing Material	Cast Iron
Housing Width	5 1/2"
Hp Range	1/2 hp to 1 hp
Input Dia.	0.876"
Input Hp	29/50 hp
Input Hp @ 1750 Rpm	29/50 hp
Input Style	C Face Coupled
Length Through Bore	5 1/2"
Max. Input Hp	29/50 hp

No. Of Gear Reductions	2
Nominal Ratio	60:1
Output Dia.	1.188"
Output Rpm	30 RPM
Output Shaft	Hollow Bore
Output Torque Range	1000 lbs.-in. to 2500 lbs.-in.
Product Datasheet	hub-city-0250-56568.pdf
Product Line	HERA
Product Type	Right Angle
Ratio	58.33:1
Service Factor	1
Style	PS
Torque Rating	1100 lbs.-in.

Product Details

Shipping Information

Height	27.94
Length	30.48

Width	25.4
Weight	13.500000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	output rpm	frame size	ratio	center distance	input style	housing material	no. of gear reductions	Price (ex. VAT)	Cart
A	0250-56617	4.23 hp	218.2 RPM	140TC	8.02:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
B	0250-56535	13/20 hp	33.3 RPM	56C	52.5:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
C	0250-56536	29/50 hp	30 RPM	56C	58.33:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
D	0250-56563	2 9/50 hp	112.2 RPM	56C	15.6:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
E	0250-56564	1 7/10 hp	87.8 RPM	56C	19.93:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
F	0250-56519	13/20 hp	33.3 RPM	56C	52.5:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
G	0250-56604	1 7/10 hp	87.8 RPM	140TC	19.93:1	2.509"	C Face Coupled	Cast Iron	2	1,227.53
