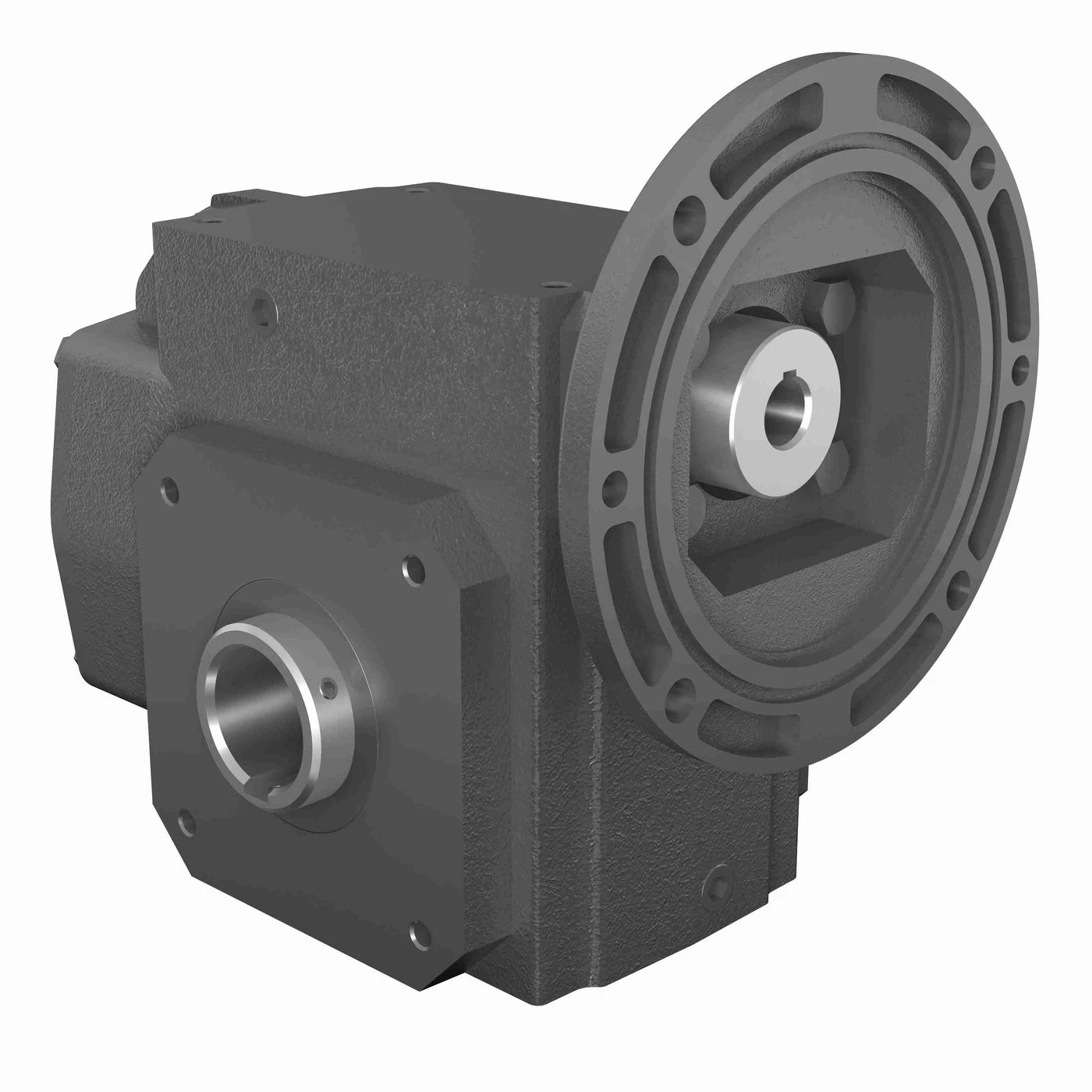

HUB CITY 0250-56422 Helical Hypoid Reducer, 0.78 HP, 0.626 Inch I.D, 1 Inch O.D, Cast Iron
Item: AN4LWM
Model: 0250-56422
In Stock
Get it by Thursday, Apr 16
£1473.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.509" |
|---|---|
| Frame Size | 56C |
| Gear Drive Size | HERA35 |
| Housing Height | 5 3/4" |
| Housing Length | 7.19" |
| Housing Material | Cast Iron |
| Housing Width | 5 1/2" |
| Hp Range | 1/2 hp to 1 hp |
| Input Dia. | 0.626" |
| Input Hp | 39/50 hp |
| Input Hp @ 1750 Rpm | 39/50 hp |
| Input Style | C Face Quill |
| Length Through Bore | 5 1/2" |
| Max. Input Hp | 39/50 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 40:1 |
| Output Dia. | 1" |
| Output Rpm | 40.2 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 43.53:1 |
| Service Factor | 1 |
| Style | ES |
| Torque Rating | 1100 lbs.-in. |
Product Details
Shipping Information
| Height | 27.94 |
|---|---|
| Length | 30.48 |
| Width | 25.4 |
|---|---|
| Weight | 13.500000 |
Related Products
| Style | Model | max. input hp | input style | ratio | output rpm | frame size | series | gear ratio | mounting type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-56474 | 2.97 hp | C Face Quill | 11.42:1 | 153.2 RPM | 140TC | - | - | - | 1,227.53 | |
| B | 0250-56475 | 2 9/50 hp | C Face Quill | 15.6:1 | 112.2 RPM | 140TC | - | - | - | 1,227.53 | |
| C | 0250-56478 | 39/50 hp | C Face Quill | 43.53:1 | 40.2 RPM | 140TC | - | - | - | 1,227.53 | |
| D | 0250-56500 | 1 7/10 hp | C Face Quill | 19.93:1 | 87.8 RPM | 140TC | - | - | - | 1,227.53 | |
| E | 0250-56504 | 29/50 hp | C Face Quill | 58.33:1 | 30 RPM | 140TC | - | - | - | 1,227.53 | |
| F | 0250-56506 | 2.97 hp | C Face Quill | 11.42:1 | 153.2 RPM | 140TC | HERA 35 Series | 11.42:1 | - | 1,114.94 | |
| G | 0250-56507 | 2 9/50 hp | C Face Quill | 15.6:1 | 112.2 RPM | 140TC | - | - | - | 1,227.53 |
