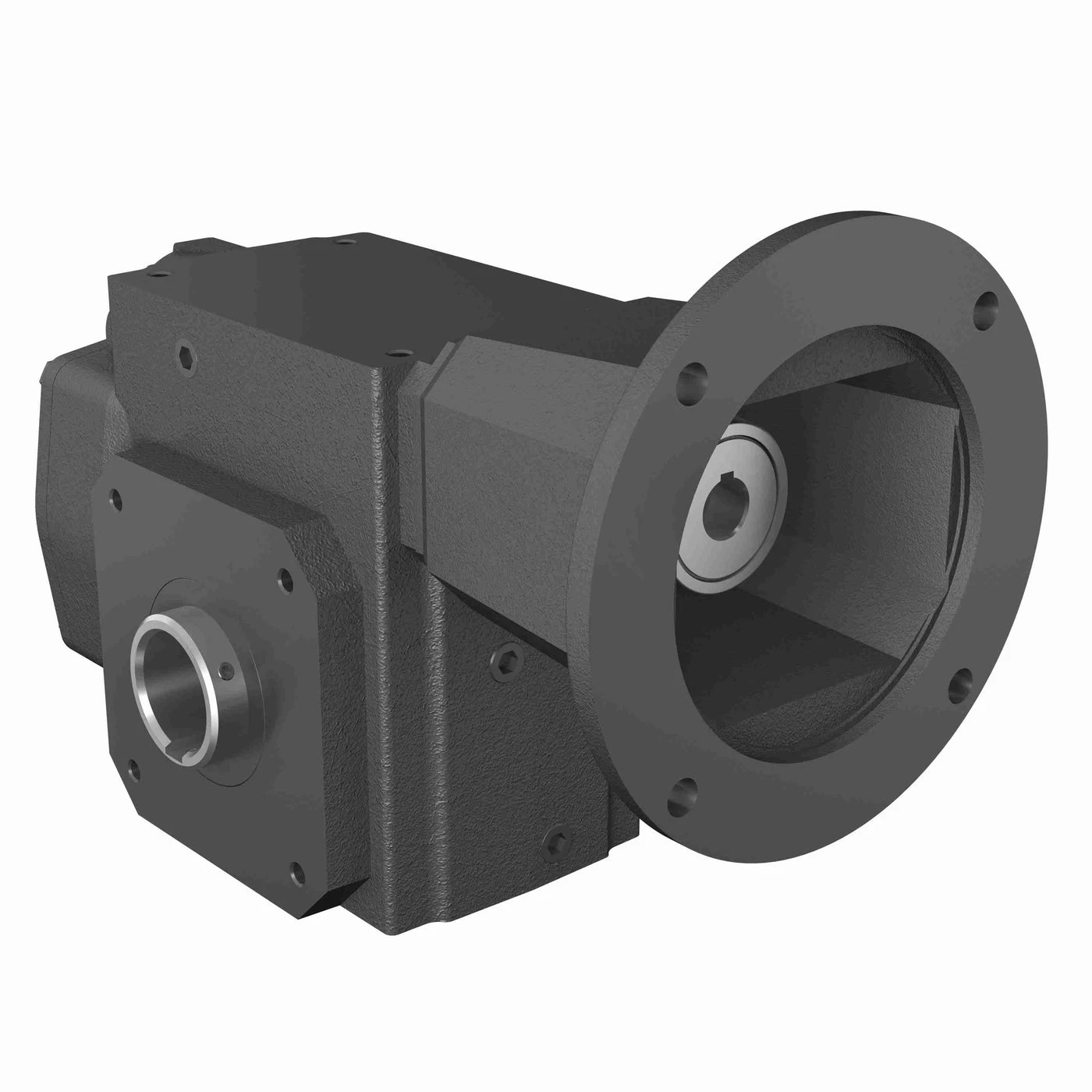

HUB CITY 0250-55216 Helical Hypoid Reducer, 6.56 HP, 1.376 Inch I.D, 1.250 Inch O.D, Cast Iron
Item: AX7YGB
Model: 0250-55216
In Stock
Get it by Wednesday, Apr 15
£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3.675" |
|---|---|
| Frame Size | 210TC |
| Gear Drive Size | HERA55 |
| Housing Height | 9 3/8" |
| Housing Length | 10 13/25" |
| Housing Material | Cast Iron |
| Housing Width | 7 1/2" |
| Hp Range | 5 hp to 7 1/2 hp |
| Input Dia. | 1.376" |
| Input Hp | 6 14/25 hp |
| Input Hp @ 1750 Rpm | 6 14/25 hp |
| Input Style | C Face Coupled |
| Length Through Bore | 7 1/2" |
| Max. Input Hp | 6 14/25 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 20:1 |
| Output Dia. | 1 1/4" |
| Output Rpm | 82.7 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 21.15:1 |
| Service Factor | 1 |
| Style | PS |
| Torque Rating | 4500 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 34.29 |
|---|---|
| length | 35.56 |
| width | 31.12 |
|---|---|
| weight | 42.750000 |
Related Products
| Style | Model | max. input hp | ratio | motor frame size | output | output diameter | frame size | output rpm | mounting type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-55097 | - | 30.14:1 | 140TC | 58.1 RPM | 1.938" | - | - | PS | 3,092.81 | |
| B | 0250-55185 | 4.61 hp | 30.14:1 | - | - | - | 180TC | 58.1 RPM | - | 3,092.81 | |
| C | 0250-55099 | - | 53.03:1 | 140TC | 33 RPM | 1.938" | - | - | PS | 2,080.29 | |
| D | 0250-55186 | 3 4/25 hp | 43.97:1 | - | - | - | 180TC | 39.8 RPM | - | 3,092.81 | |
| E | 0250-55135 | - | 15.05:1 | 180TC | 116.3 RPM | 1.438" | - | - | PS | 3,092.81 | |
| F | 0250-55071 | 9 11/50 hp | 15.05:1 | - | - | - | 140TC | 116.3 RPM | - | 3,092.81 | |
| G | 0250-55094 | - | 10.77:1 | 140TC | 162.5 RPM | 1.938" | - | - | PS | 2,080.29 |
