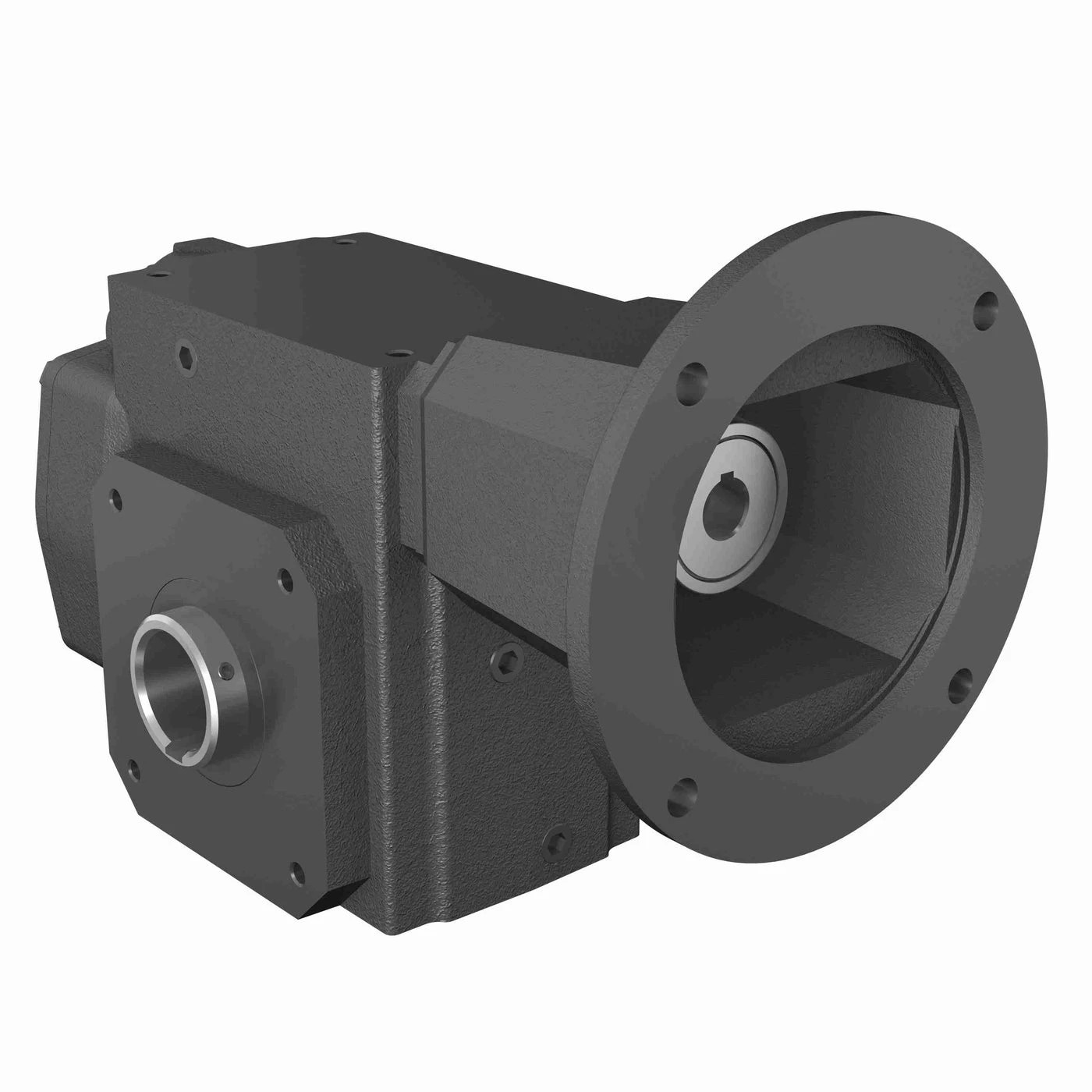

HUB CITY 0250-54275 Helical Hypoid Reducer, 5.14 HP, 1.126 Inch I.D, PS Mounting Type, Cast Iron | AY4YKN

HUB CITY 0250-54275 Helical Hypoid Reducer, 5.14 HP, 1.126 Inch I.D, PS Mounting Type, Cast Iron

Item: AY4YKN

Model: 0250-54275

In Stock

Get it by Thursday, Apr 16

£1842.31/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	3.263"
Frame Size	180TC
Gear Drive Size	HERA45
Housing Height	6.938"
Housing Length	8"
Housing Material	Cast Iron
Housing Width	6 1/4"
Hp Range	5 hp to 7 1/2 hp
Input Dia.	1.126"
Input Hp	5 7/50 hp
Input Hp @ 1750 Rpm	5 7/50 hp
Input Style	C Face Coupled
Length Through Bore	6 1/4"

Max. Input Hp	5 7/50 hp
No. Of Gear Reductions	2
Nominal Ratio	15:1
Output Dia.	1.438"
Output Rpm	112.2 RPM
Output Shaft	Hollow Bore
Output Torque Range	2500 lbs.-in. to 5000 lbs.-in.
Product Line	HERA
Product Type	Right Angle
Ratio	15.6:1
Service Factor	1
Style	PS
Torque Rating	2600 lbs.-in.

Product Details

Shipping Information

Height	34.29
Length	35.56

Width	31.12
Weight	18.900000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	frame size	ratio	output rpm	input style	housing material	output shaft	no. of gear reductions	Price (ex. VAT)	Cart
A	0250-54197	2 43/50 hp	140TC	28.01:1	62.5 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
B	0250-54200	1 17/50 hp	140TC	59.79:1	29.3 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
C	0250-54227	5 7/50 hp	140TC	15.6:1	112.2 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
D	0250-54229	2 43/50 hp	140TC	28.01:1	62.5 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
E	0250-54232	1 17/50 hp	140TC	59.79:1	29.3 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
F	0250-54259	5 7/50 hp	180TC	15.6:1	112.2 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,535.26
G	0250-54274	7 3/50 hp	180TC	11.36:1	154 RPM	C Face Coupled	Cast Iron	Hollow Bore	2	1,103.65
