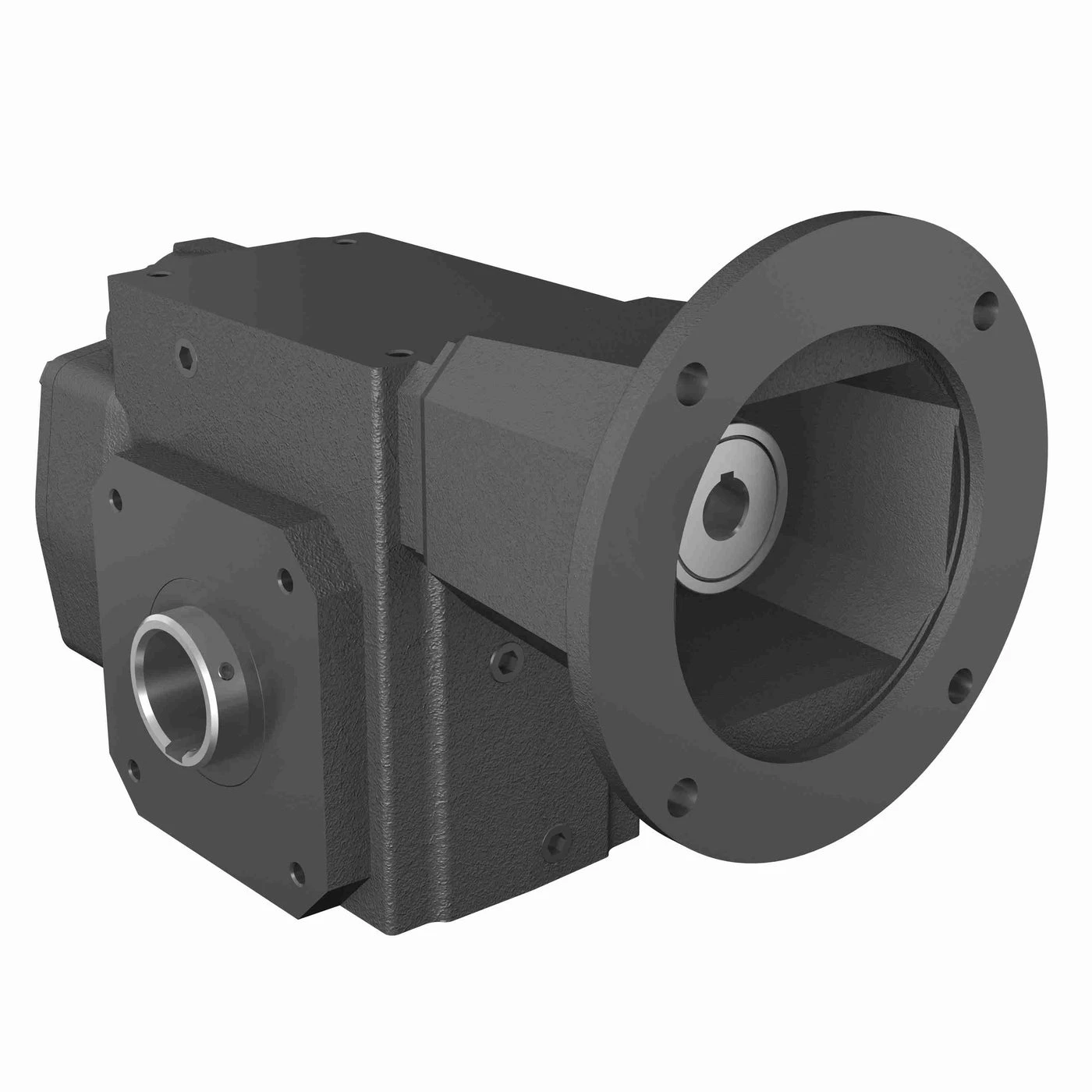

HUB CITY 0250-54196 Helical Hypoid Reducer, 4.11 HP, 0.876 Inch I.D, PS Mounting Type, Cast Iron
Item: AY6QEX
Model: 0250-54196
In Stock
Get it by Wednesday, Apr 15
£1842.31/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3.263" |
|---|---|
| Frame Size | 140TC |
| Gear Drive Size | HERA45 |
| Housing Height | 6.938" |
| Housing Length | 8" |
| Housing Material | Cast Iron |
| Housing Width | 6 1/4" |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 0.876" |
| Input Hp | 4 11/100 hp |
| Input Hp @ 1750 Rpm | 4.11 hp |
| Input Style | C Face Coupled |
| Length Through Bore | 6 1/4" |
| Max. Input Hp | 4.11 hp |
|---|---|
| No. Of Gear Reductions | 2 |
| Nominal Ratio | 20:1 |
| Output Dia. | 1" |
| Output Rpm | 89.7 RPM |
| Output Shaft | Hollow Bore |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | HERA |
| Product Type | Right Angle |
| Ratio | 19.5:1 |
| Service Factor | 1 |
| Style | PS |
| Torque Rating | 2600 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 34.29 |
|---|---|
| length | 35.56 |
| width | 31.12 |
|---|---|
| weight | 18.900000 |
Related Products
| Style | Model | max. input hp | frame size | ratio | output rpm | input style | housing material | output shaft | no. of gear reductions | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-54197 | 2 43/50 hp | 140TC | 28.01:1 | 62.5 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| B | 0250-54200 | 1 17/50 hp | 140TC | 59.79:1 | 29.3 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| C | 0250-54227 | 5 7/50 hp | 140TC | 15.6:1 | 112.2 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| D | 0250-54229 | 2 43/50 hp | 140TC | 28.01:1 | 62.5 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| E | 0250-54232 | 1 17/50 hp | 140TC | 59.79:1 | 29.3 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| F | 0250-54259 | 5 7/50 hp | 180TC | 15.6:1 | 112.2 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,535.26 | |
| G | 0250-54274 | 7 3/50 hp | 180TC | 11.36:1 | 154 RPM | C Face Coupled | Cast Iron | Hollow Bore | 2 | 1,103.65 |
