HUB CITY 0250-54139 Helical Hypoid Reducer, 5.14 HP, 1.126 Inch I.D, ES Mounting Type, Cast Iron | AM9FDN

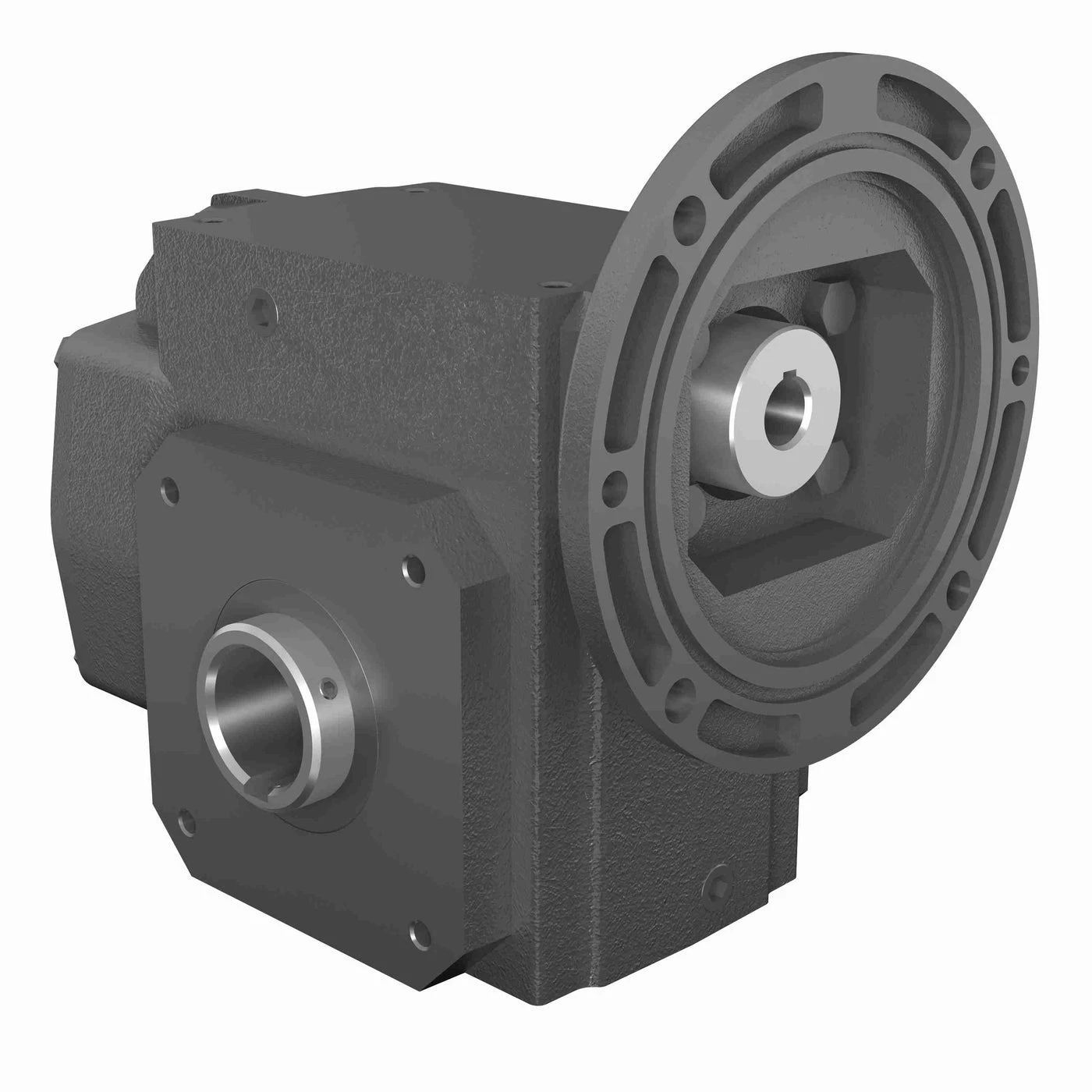

HUB CITY 0250-54139 Helical Hypoid Reducer, 5.14 HP, 1.126 Inch I.D, ES Mounting Type, Cast Iron

Item: AM9FDN

Model: 0250-54139

In Stock

Get it by Friday, Apr 17

£1842.31/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	3.263"
Frame Size	180TC
Gear Drive Size	HERA45
Housing Height	6.938"
Housing Length	8"
Housing Material	Cast Iron
Housing Width	6 1/4"
Hp Range	5 hp to 7 1/2 hp
Input Dia.	1.126"
Input Hp	5 7/50 hp
Input Hp @ 1750 Rpm	5 7/50 hp
Input Style	C Face Quill
Length Through Bore	6 1/4"

Max. Input Hp	5 7/50 hp
No. Of Gear Reductions	2
Nominal Ratio	15:1
Output Dia.	1 1/2"
Output Rpm	112.2 RPM
Output Shaft	Hollow Bore
Output Torque Range	2500 lbs.-in. to 5000 lbs.-in.
Product Line	HERA
Product Type	Right Angle
Ratio	15.6:1
Service Factor	1
Style	ES
Torque Rating	2600 lbs.-in.

Product Details

Shipping Information

Height	34.29
Length	35.56

Width	31.12
Weight	18.900000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	input style	ratio	output rpm	frame size	motor frame size	output	output diameter	Price (ex. VAT)	Cart
A	0250-54037	2 43/50 hp	C Face Quill	28.01:1	62.5 RPM	56C	-	-	-	1,394.47
B	0250-54052	-	C Face Quill	19.51	-	-	140TC	89.7 RPM	1"	1,535.26
C	0250-54053	-	C Face Quill	28.01:1	-	-	140TC	62.5 RPM	1"	1,535.26
D	0250-54055	-	C Face Quill	52.51	-	-	140TC	33.3 RPM	1"	1,535.26
E	0250-54079	1.53 hp	C Face Quill	52.5:1	33.3 RPM	140TC	-	-	-	1,535.26
F	0250-54080	1 17/50 hp	C Face Quill	59.79:1	29.3 RPM	140TC	-	-	-	1,535.26
G	0250-54082	7 3/50 hp	C Face Quill	11.36:1	154 RPM	140TC	-	-	-	1,535.26
