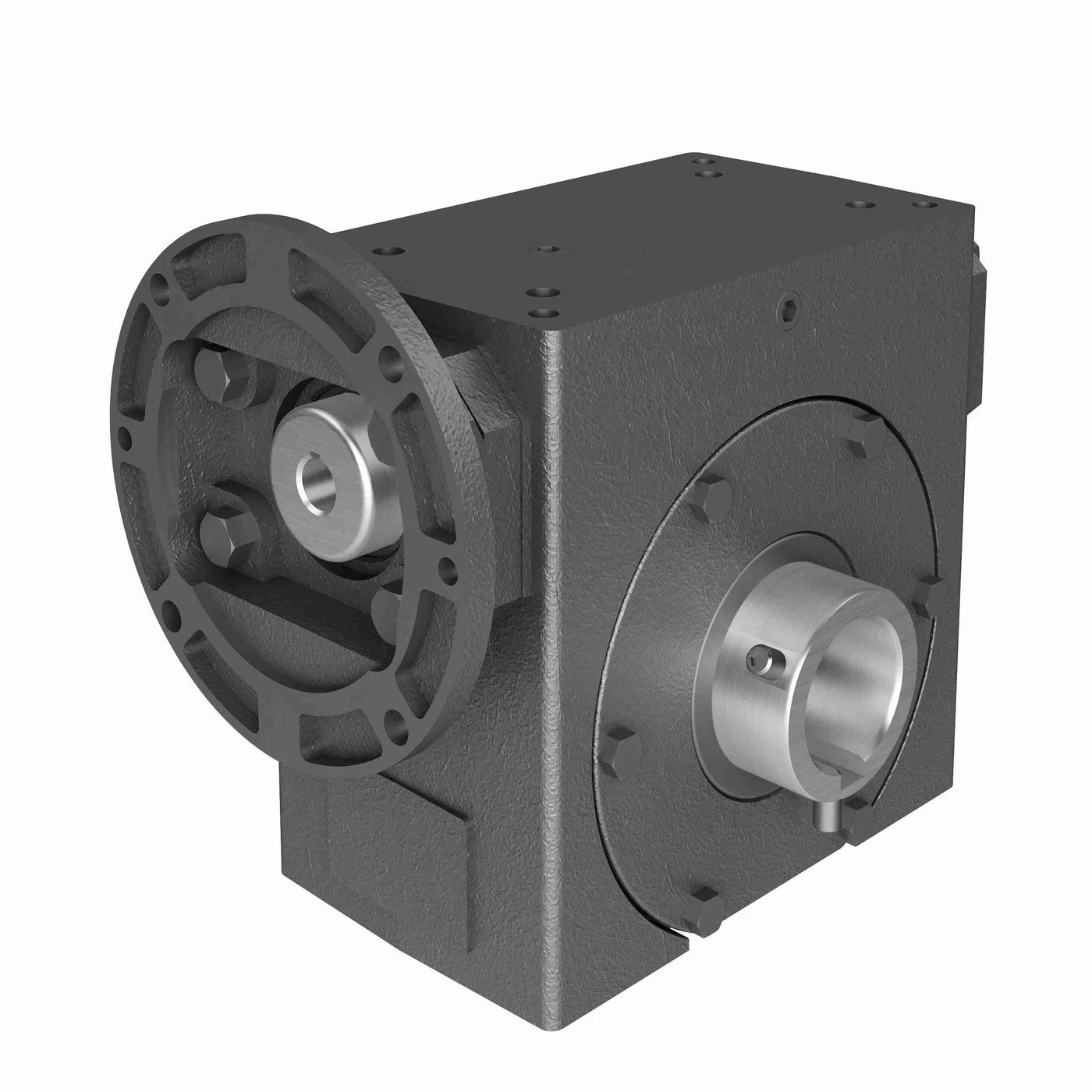

HUB CITY 0230-47547 Worm Reducer, 3.56 Hp, 1.438 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY9MUZ
Model: 0230-47547
In Stock
Get it by Wednesday, Apr 15
£2531.47/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 3 hp to 5 hp |
| Input Dia. | 5/8" |
| Input Style | C Face Quill |
| Max. Input Hp | 3 14/25 hp |
| Output Dia. | 1.438" |
| Output Rpm | 58.3 RPM |
|---|---|
| Output Shaft | Hollow Bore |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 30:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 2943 lbs.-in. |
Product Details
Speed Reducer
Shipping Information
| height | 34.29 |
|---|---|
| length | 35.56 |
| width | 31.12 |
|---|---|
| weight | 31.500000 |
Related Products
| Style | Model | max. input hp | input style | output shaft | ratio | output rpm | frame size | motor frame size | output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-15015 | 3 14/25 hp | C Face Quill | Hollow Bore | 30:1 | 58.3 RPM | 140TC | - | - | 2,109.56 | |
| B | 0230-14850 | 1 17/20 hp | C Face Quill | Shaft | 60:1 | 29.2 RPM | 140TC | - | - | 1,439.77 | |
| C | 0230-14737 | 4.59 hp | Shaft | Hollow Bore | 20:1 | 87.5 RPM | - | - | - | 1,876.77 | |
| D | 0230-14901 | 10 hp | C Face Quill | Shaft | 5:1 | 350 RPM | 180TC | - | - | 1,662.93 | |
| E | 0230-14631 | 3 14/25 hp | Shaft | Shaft | 30:1 | 58.3 RPM | - | - | - | 1,423.32 | |
| F | 0230-15047 | 6 19/25 hp | C Face Quill | Hollow Bore | 10:1 | 175 RPM | 180TC | - | - | 2,109.56 | |
| G | 0230-14978 | 3 23/25 hp | C Face Quill | Hollow Bore | 25:1 | 70 RPM | 140TC | - | - | 2,109.56 |
