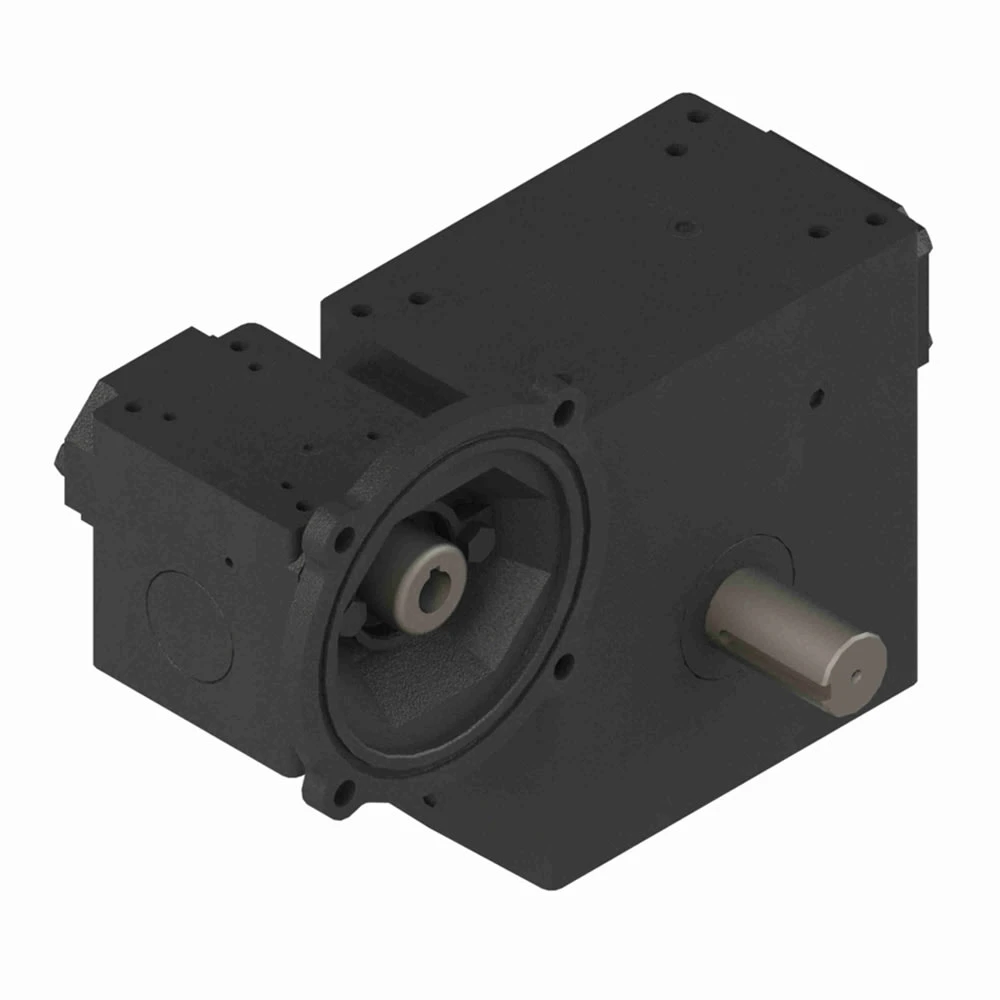

HUB CITY 0230-30363 Worm Reducer, 1.96 Hp, 1.375 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY9NMG
Model: 0230-30363
In Stock
Get it by Thursday, Apr 16
£3070.16/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 3 1/4" |
|---|---|
| Center Distance Range | Above 3.25" |
| Frame Size | 56C |
| Gear Type | Worm |
| Height | 12 |
| Input Diameter | 5/8" |
| Input Type | C Face Quill |
| Length | 20.5 |
| Material | Cast Iron |
| Max. Input Hp | 1.96 hp |
| Output Diameter | 1 3/8" |
|---|---|
| Output Rpm | 17.5 RPM |
| Output Torque Range | 2500 lbs.-in. to 5000 lbs.-in. |
| Output Torque Rating | 4472 lbs.-in. |
| Output Type | Shaft |
| Ratio | 100:1 |
| Series | 3200 Series |
| Service Factor | 1 |
| Style | Single Output |
| Width | 12.25 |
Product Details
Speed Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 38.250000 |
Related Products
| Style | Model | gear type | max. input hp | gear ratio | output rpm | ratio | frame size | output diameter | motor frame size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-30415 | Worm | 0.27 hp @ 1750 RPM | - | 1.17 RPM | 1500:1 | 143TC | 1 3/8" | 140TC | 2,215.13 | |
| B | 0230-30343 | Worm | 1.96 hp | - | 17.5 RPM | 100:1 | 56C | 1 3/8" | - | 2,558.47 | |
| C | 0230-30515 | Double Worm | 0.27 hp | - | 1.17 RPM | 1500:01:00 | 56C | 1.438" | 56C | - |
RFQ
|
| D | 0230-30342 | Worm | 2.45 hp | - | 23.3 RPM | 75:1 | 56C | 1 3/8" | - | 2,558.47 | |
| E | 0230-30773 | Double Worm | 0.31 hp | - | 1.75 RPM | 1000:1 | 56C | - | - | 2,701.58 | |
| F | 0230-30365 | Worm | 1.12 hp | - | 8.75 RPM | 200:1 | 56C | 1 3/8" | - | 2,558.47 | |
| G | 0230-30346 | Worm | 0.94 hp | - | 7 RPM | 250:1 | 56C | 1 3/8" | - | 2,558.47 |
