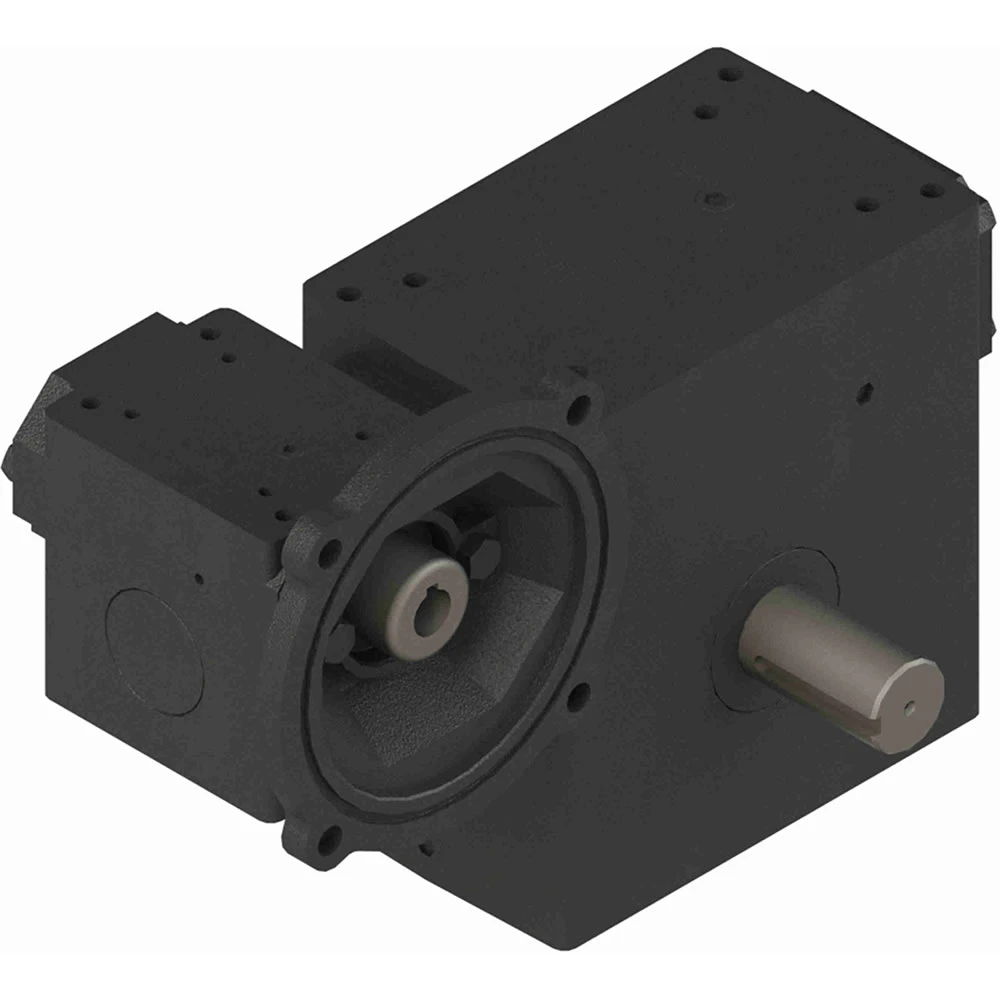

HUB CITY 0230-19751 Worm Reducer, 0.112 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY8VPG
Model: 0230-19751
In Stock
Get it by Thursday, Apr 16
£1782.6/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.06" |
|---|---|
| Center Distance Range | 1" Thru 3.25" |
| Frame Size | 56C |
| Gear Type | Worm |
| Height | 13.5 |
| Input Diameter | 5/8" |
| Input Type | C Face Quill |
| Length | 14 |
| Material | Cast Iron |
| Max. Input Hp | 0.112 hp |
| Output Diameter | 7/8" |
|---|---|
| Output Rpm | 2.33 RPM |
| Output Torque Range | 1000 lbs.-in. to 2500 lbs.-in. |
| Output Torque Rating | 1238 lbs.-in. |
| Output Type | Shaft |
| Ratio | 750:1 |
| Series | 2100 Series |
| Service Factor | 1 |
| Style | Single Output |
| Width | 12.25 |
Product Details
Speed Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 17.550000 |
Related Products
| Style | Model | gear type | max. input hp | ratio | output rpm | output diameter | series | center distance | service factor | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-20307 | Double Worm | - | 300:1 | 5.83 RPM | - | - | 2.06" | 1 | 1,836.58 | |
| B | 0230-19967 | Double Worm | 0.212 hp | 300:1 | 5.83 RPM | - | - | 2.06" | 1 | 1,749.38 | |
| C | 0230-19742 | Worm | 0.66 hp @ 1750 RPM | 75:1 | 23.3 RPM | 7/8" | 2100 Series | 2.06" | 1 | 1,485.50 | |
| D | 0230-19748 | Worm | 0.173 hp | 400:1 | 4.38 RPM | 7/8" | 2100 Series | 2.06" | 1 | 1,485.50 | |
| E | 0230-19745 | Worm | 3/10 hp | 200:1 | 8.75 RPM | 7/8" | 2100 Series | 2.06" | 1 | 1,374.56 | |
| F | 0230-19756 | Worm | 0.063 hp | 1800:1 | 0.97 RPM | 7/8" | 2100 Series | 2.06" | 1 | 1,485.50 | |
| G | 0230-19726 | Worm | 0.238 hp @ 1750 RPM | 250:1 | 7 RPM | 7/8" | 2100 Series | 2.06" | 1 | 1,485.50 |
