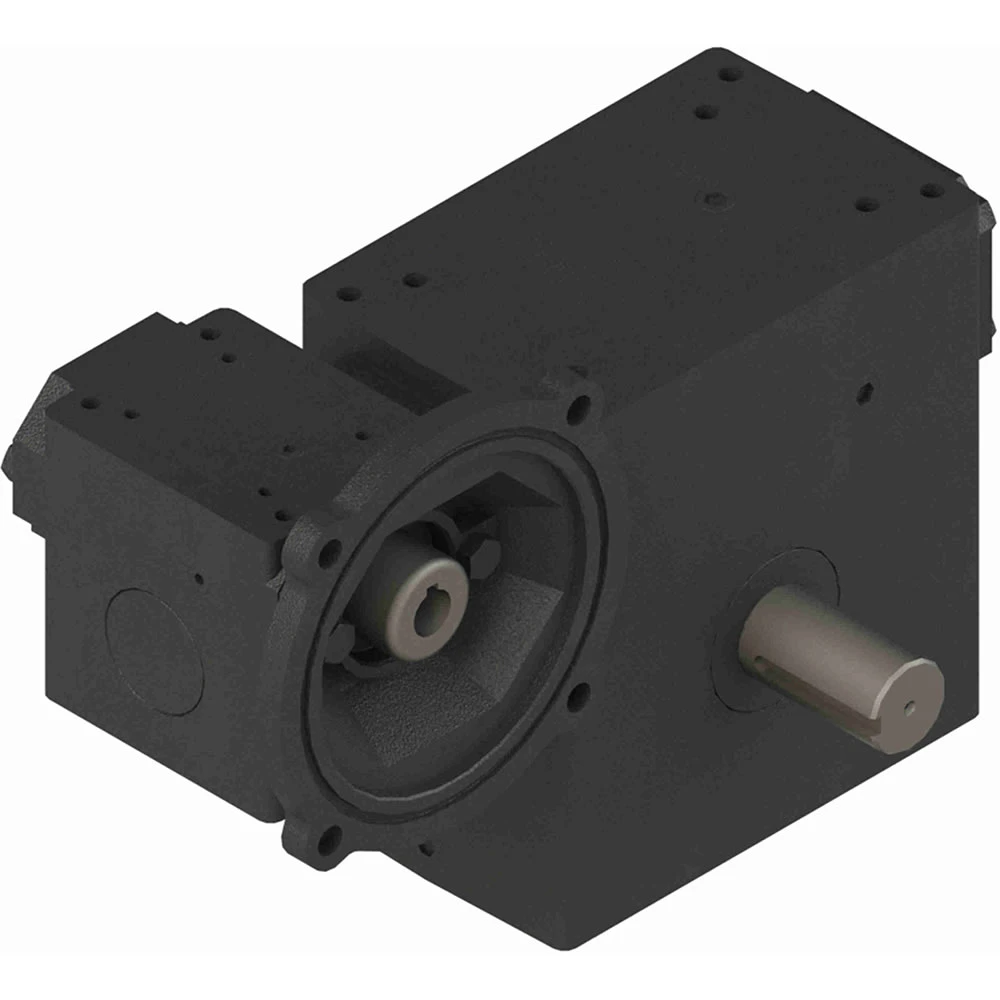

HUB CITY 0230-18587 Worm Reducer, 0.143 Hp, 0.750 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY9NAK
Model: 0230-18587
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£1632.56/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 1 3/4" |
|---|---|
| Center Distance Range | 1" Thru 3.25" |
| Frame Size | 56C |
| Gear Type | Worm |
| Height | 7.5 |
| Input Diameter | 5/8" |
| Input Type | C Face Quill |
| Length | 13.25 |
| Material | Cast Iron |
| Max. Input Hp | 0.143 hp |
| Output Diameter | 3/4" |
| Output Rpm | 5.83 RPM |
|---|---|
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Output Torque Rating | 788 lbs.-in. |
| Output Type | Shaft |
| Ratio | 300:1 |
| Ratio Range | 250:1 to 500:1 |
| Series | 1800 Series |
| Service Factor | 1 |
| Style | Single Output |
| Width | 12.5 |
Product Details
Speed Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 13.500000 |
Related Products
| Style | Model | gear type | max. input hp | ratio | output rpm | output shaft | series | center distance | frame size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-18584 | Worm | 0.251 hp @ 1750 RPM | 150:1 | 11.7 RPM | - | 1800 Series | 1 3/4" | 56C | 1,632.56 | |
| B | 0230-18593 | Worm | 0.056 hp @ 1750 RPM | 1000:1 | 1.75 RPM | - | 1800 Series | 1 3/4" | 56C | 1,632.56 | |
| C | 0230-18585 | Worm | 0.187 hp @ 1750 RPM | 200:1 | 8.75 RPM | - | 1800 Series | 1 3/4" | 56C | 1,632.56 | |
| D | 0230-18703 | Double Worm | - | 100:1 | 17.5 RPM | Hollow Bore | - | 1 3/4" | 56C | 1,891.25 | |
| E | 0230-18704 | Double Worm | 0.251 hp | 150:1 | 11.7 RPM | Hollow Bore | - | 1 3/4" | 56C | 1,891.25 | |
| F | 0230-18827 | Double Worm | - | 300:1 | 5.83 RPM | Hollow Bore | - | 1 3/4" | 56C | 1,724.75 | |
| G | 0230-18828 | Double Worm | 0.107 hp | 400:1 | - | Hollow Bore | - | 1 3/4" | 56C | - |
