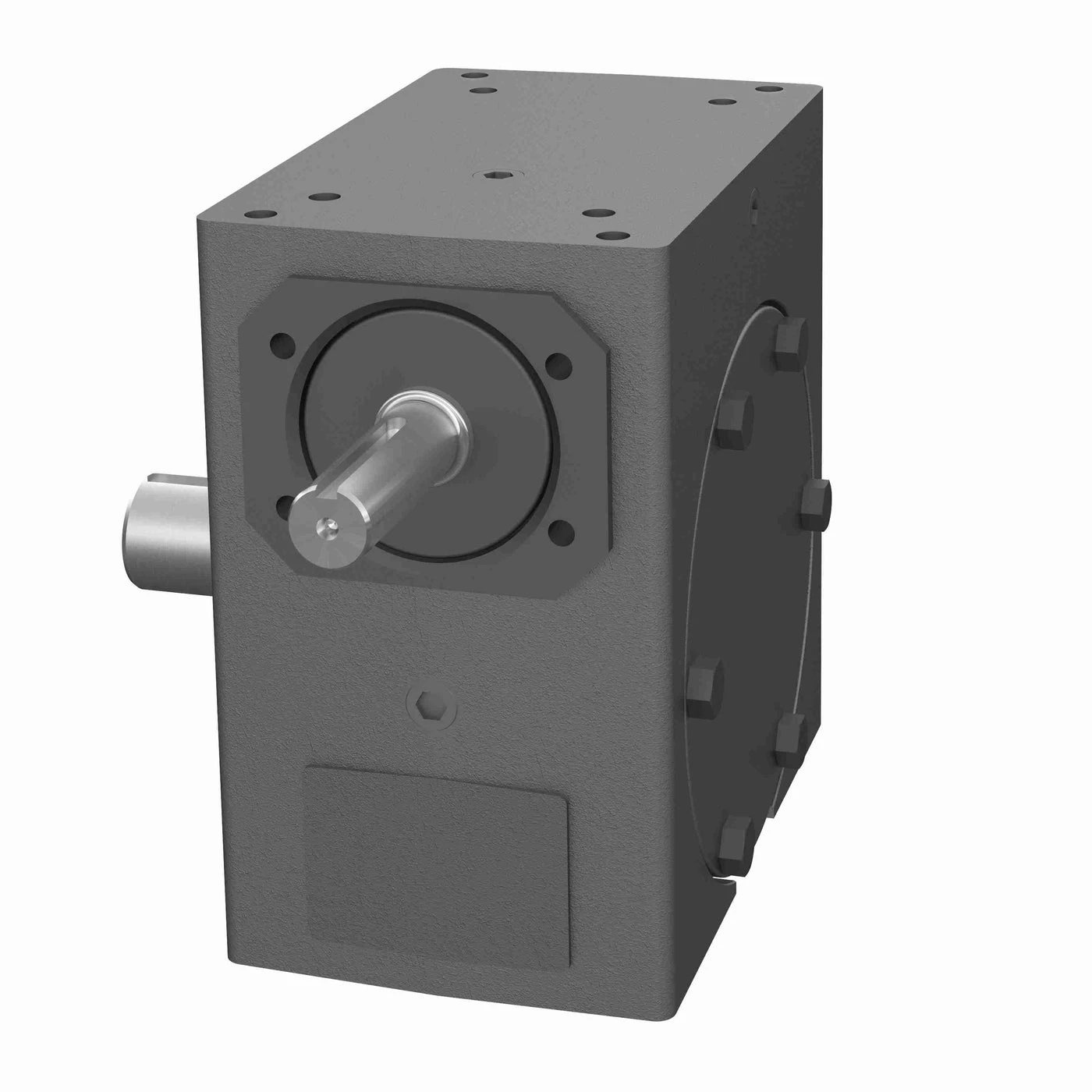

HUB CITY 0230-06967 Worm Reducer, 2.83 Hp, 1.250 Inch I.D, 0.75 Inch O.D, Cast Iron | AN8VTE

HUB CITY 0230-06967 Worm Reducer, 2.83 Hp, 1.250 Inch I.D, 0.75 Inch O.D, Cast Iron

Item: AN8VTE

Model: 0230-06967

In Stock

Get it by Thursday, Apr 16

£1188.31/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Center Distance	2.63"
Center Distance Range	1" to 3 1/4"
Gear Type	Worm
Housing Material	Cast Iron
Hp Range	2 hp to 3 hp
Input Dia.	3/4"
Input Style	Shaft
Keyway Size	3/16" x 3/32"
Max. Input Hp	2.83 hp
No. Of Gear Reductions	1
Output Dia.	1 1/4"
Output Rpm	87.5 RPM

Output Shaft	Shaft
Output Shaft Direction	Left
Output Torque Range	1000 lbs.-in. to 2500 lbs.-in.
Overhung Load	1150
Product Datasheet	hub-city-0230-06967.pdf
Product Line	Powercubex Worm Gear Drive
Product Type	Right Angle
Ratio	20:1
Service Factor	1
Style	B
Torque Rating	1640 lbs.-in.

Product Details

Shipping Information

Height	27.94
Length	30.48

Width	25.4
Weight	16.650000

Related Products

A

B

C

D

E

F

G

Style	Model	max. input hp	input style	output shaft	ratio	output rpm	frame size	output	output diameter	Price (ex. VAT)	Cart
A	0230-07306	1 29/50 hp	C Face Quill	Hollow Bore	40:1	43.8 RPM	56C	-	-	1,373.46
B	0230-07330	-	C Face Quill	Hollow Bore	40:1	-	-	43.8 RPM	1 1/2"	1,586.35
C	0230-07637	5 hp	C Face Quill	Hollow Bore	10:1	175 RPM	56C	-	-	1,478.50
D	0230-06955	2.83 hp	Shaft	Shaft	20:1	87.5 RPM	-	-	-	1,276.16
E	0230-07315	2.83 hp	C Face Quill	Hollow Bore	20:1	87.5 RPM	56C	-	-	1,373.46
F	0230-07175	1.27 hp	C Face Quill	Shaft	50:1	35 RPM	56C	-	-	1,081.96
G	0230-07304	2.31 hp	C Face Quill	Hollow Bore	25:1	70 RPM	56C	-	-	1,586.35
