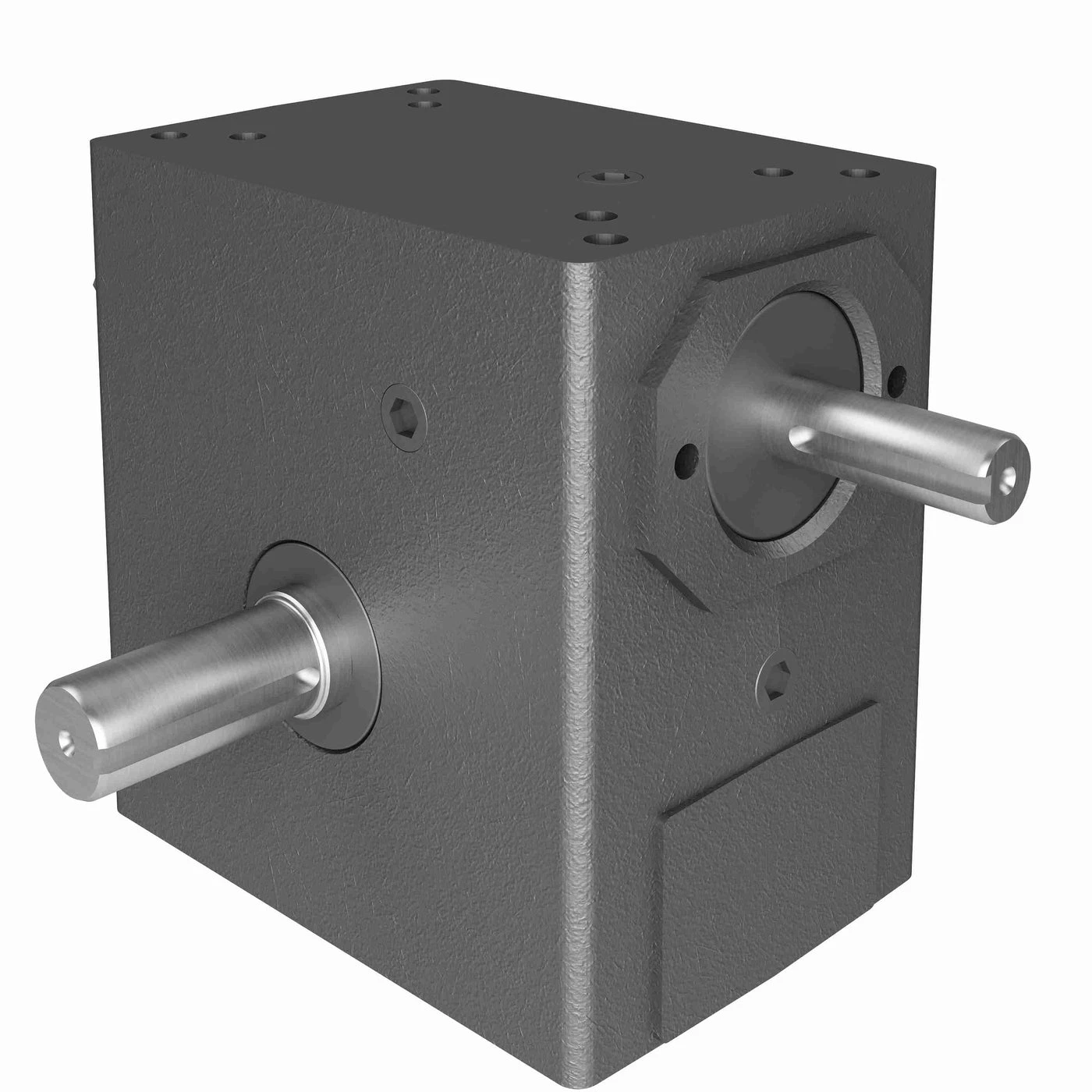

HUB CITY 0230-02316 Worm Reducer, 1.86 Hp, 0.875 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AN8DPP
Model: 0230-02316
In Stock
Get it by Friday, Apr 17
£902.50/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 2.06" |
|---|---|
| Center Distance Range | 1" to 3 1/4" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Hp Range | 1 hp to 2 hp |
| Input Dia. | 5/8" |
| Input Style | Shaft |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 1 43/50 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 7/8" |
| Output Rpm | 117 RPM |
| Output Shaft | Shaft |
|---|---|
| Output Shaft Direction | Left |
| Output Torque Range | 500 lbs.-in. to 1000 lbs.-in. |
| Overhung Load | 550 |
| Product Datasheet | hub-city-0230-02334.pdf |
| Product Line | Powercubex Worm Gear Drive |
| Product Type | Right Angle |
| Ratio | 15:1 |
| Service Factor | 1 |
| Style | B |
| Torque Rating | 819 lbs.-in. |
Shipping Information
| Height | 22.86 |
|---|---|
| Length | 26.67 |
| Width | 24.13 |
|---|---|
| Weight | 10.350000 |
Related Products
| Style | Model | max. input hp | gear ratio | output shaft | ratio | input style | output rpm | frame size | output | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0230-02577 | 3.89 hp | 5:1 | Shaft | 5:1 | C Face Quill | 350 RPM | 140TC | - | 771.13 | |
| B | 0230-03184 | 0.83 hp | - | Hollow Bore | 40:1 | C Face Quill | 43.8 RPM | 56C | - | 1,314.51 | |
| C | 0230-02569 | 1 1/2 hp | - | Shaft | 20:1 | C Face Quill | 87.5 RPM | 56C | - | 771.13 | |
| B | 0230-02963 | 2 1/2 hp | - | Hollow Bore | 10:1 | C Face Quill | 175 RPM | 56C | - | 1,314.51 | |
| D | 0230-02644 | 0.83 hp | - | Shaft | 40:1 | C Face Quill | 43.8 RPM | 56C | - | 771.13 | |
| E | 0230-02961 | 3.89 hp | - | Hollow Bore | 5:1 | C Face Quill | 350 RPM | 56C | - | 1,314.51 | |
| F | 0230-02603 | 2 1/2 hp | - | Shaft | 10:1 | C Face Quill | 175 RPM | 56C | - | 848.24 |
