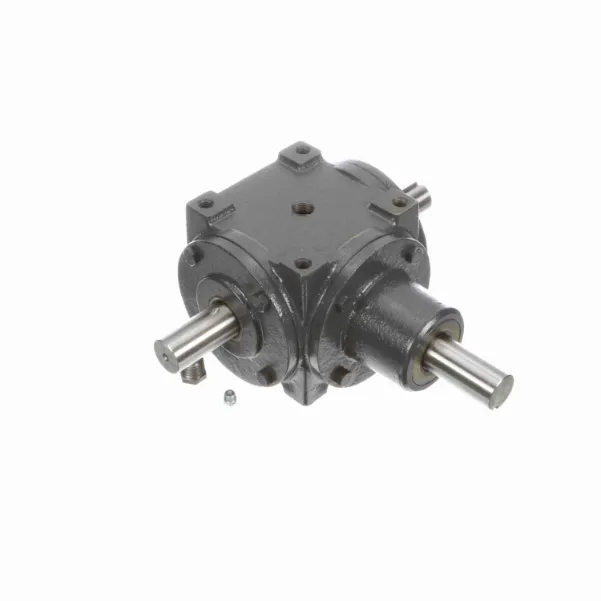

HUB CITY 0220-03513 Bevel Gear Drive, 24.2 HP, 1.250 Inch I.D, 1.250 Inch O.D, Cast Iron

Item: AK7LGZ
Model: 0220-03513
In Stock

Get it by Wednesday, Apr 15

£1272.84/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Dimensions 12 1/4" x 11 1/4" x 5 5/8"
Efficiency 97.5%
Gear Drive Size 66
Gear Ratio 1:1
Gear Type Straight Bevel
Housing Height 5 5/8"
Housing Length 8 11/16"
Housing Material Cast Iron
Housing Width 7 1/4"
Hp 24 1/5 hp
Hp Range 20 hp to 25 hp
Input Dia. 1 1/4"
Input Hp 24 1/5 hp
Input Hp @ 1750 Rpm 24 1/5 hp
Input Keyway Size 1/4" x 1/8"
Input Length 2 9/16"
Input Max. Speed 1150 RPM
Input Style Shaft
Input Type Shaft
Lubrication Type Conventional Oil
Material Cast Iron
Max. Input Hp 24 1/5 hp
Mounting Type Four Bolt Surface
No. Of Gear Reductions 1
Output Dia. 1 1/4"
Output Keyway Size 1/4" x 1/8"
Output Length 2 1/2"
Output Max. Speed 1150 RPM
Output Rpm 1150 RPM
Output Shaft Shaft
Output Shaft Direction Double
Output Torque Range 1000 lbs.-in. to 2500 lbs.-in.
Output Type Shaft
Product Line Bevel Gear Drives
Product Type Right Angle
Ratio 1:1
Series 66 Series
Service Factor 1
Style A, B
Torque Rating 1320 lbs.-in.
Type Right Angle Straight Single Reduction Style A B

Product Details

Bevel Gear Drive

Shipping Information

height 19.05
length 33.66
width 31.75
weight 19.350000
