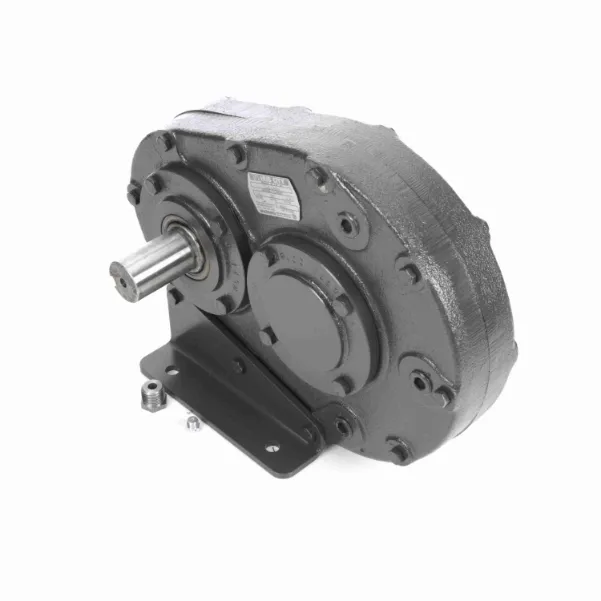

HUB CITY 0220-01004 Parallel Shaft Drive, 3:1 Ratio, 63 HP, 1.5 Inch I.D, 1.5 Inch O.D, Cast Iron
Item: AX6GWU
Model: 0220-01004
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£2224.67/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 5.424" |
|---|---|
| Dimensions | 9 3/8" x 11 3/8" x 14 27/32" |
| Efficiency | 97.5% |
| Gear Ratio | 3:1 |
| Gear Type | H |
| Housing Material | Cast Iron |
| Hp | 63 hp |
| Input Dia. | 1 1/2" |
| Input Hp | 63 hp |
| Input Hp @ 1750 Rpm | 63 hp |
| Input Style | Shaft |
| Input Type | Shaft |
| Lubrication Type | Oil |
| Material | Cast Iron |
| Mounting Type | Shaft |
| Output Dia. | 1 1/2" |
|---|---|
| Output Keyway Size | 3/8" x 3/16" |
| Output Rpm | 583 RPM |
| Output Shaft | Shaft |
| Output Torque Range | 5000 lbs.-in. to 10000 lbs.-in. |
| Output Type | Shaft |
| Product Line | Parallel Shaft Drive |
| Product Type | Parallel |
| Ratio | 3:1 |
| Series | 200 Series |
| Service Factor | 1 |
| Style | A |
| Torque Rating | 6602 lbs.-in. |
| Type | Type H Single Reduction Style A |
Product Details
Parallel Shaft Drives
Shipping Information
| height | 34.29 |
|---|---|
| length | 35.56 |
| width | 31.12 |
|---|---|
| weight | 37.350000 |
Related Products
| Style | Model | gear ratio | output rpm | output shaft | ratio | output type | gear type | series | mounting type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0220-01001 | 4:1 | 438 RPM | Shaft | 4:1 | Shaft | H | 200 Series | Shaft | 2,617.33 | |
| B | 0220-01041 | 1:1 | 1750 RPM | Hollow Bore | 1:1 | Hollow Bore | H | 200 Series | Shaft | 2,537.17 | |
| C | 0220-01013 | 1:1 | 1750 RPM | Shaft | 1:1 | Shaft | H | 200 Series | Shaft | 2,117.07 | |
| D | 0220-01014 | 1:1 | 1750 RPM | Shaft | 1:1 | Shaft | H | 200 Series | Shaft | 2,667.51 | |
| E | 0220-01057 | 2:1 | 875 RPM | Shaft | 2:1 | Shaft | H | 200 Series | Shaft | 1,888.67 | |
| F | 0220-01021 | - | 1750 RPM | Shaft | 1:1 | - | H | - | - | 2,540.49 | |
| G | 0220-01007 | 2:1 | 875 RPM | Shaft | 2:1 | Shaft | H | 200 Series | Shaft | 2,224.67 |
