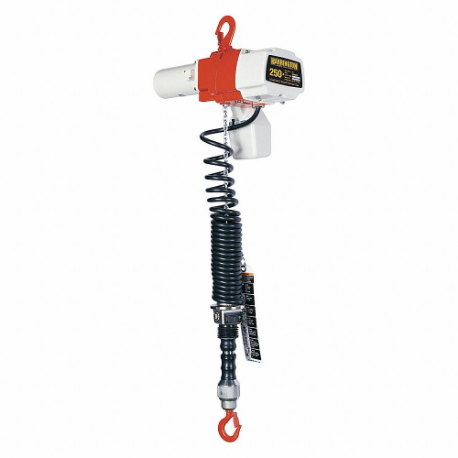

HARRINGTON ED250DA-6 Electric Chain Hoist, 250 Lb Load Capacity, 1 Speeds, 120 Volt, 26 Fpm, 0.4 Hp
Item: CR3QLK
Model: ED250DA-6
In Stock
Get it by Thursday, Apr 16
5.00% off
£5473.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Body Depth | 13 13/32" |
|---|---|
| Body Finish | Enamel |
| Body Length | 14 19/32" |
| Body Material | Aluminum |
| Body Width | 7 29/32" |
| Brake Type | Weston Style Load Brake |
| Chain Finish | Nickel Plated |
| Classification | H2 |
| Clutch | Friction Clutch |
| Clutch Type | Friction Clutch |
| Color | White |
| Control | Manipulator |
| Control Type | Manipulator |
| Controller Cord Length | 6 ft. |
| Duty Classification | H2 - Light Duty |
| Features | Easy-Touch High/Low Speed Selection, Ergonomic In-Line Handgrip Control, High Speed Motor, Quick-Switch Removable Bottom Hook, Standard Double-Braking System |
| Finish | Electrostatic Enamel |
| Fits Brand | Harrington Hoists Inc |
| For Max. Beam Height | Not Applicable |
| For Maximum Beam Flange Width | Not Applicable |
| For Minimum Beam Flange Width | Not Applicable |
| For Minimum Beam Height | Not Applicable |
| Headroom | 37 3/16" |
| Headroom Size | 37 3/16" |
| Hoist Ip Rating | IP54 |
| Housing Depth | 13 13/32" |
| Housing Length | 14 19/32" |
| Includes | Chain Container |
| Includes Brake | Brake Included |
| Includes Clutch | Clutch Included |
| Lift Speed | 10-26 FPM |
| Lifting Capacity | 250 lbs. |
|---|---|
| Lifting Hook Material | Carbon Steel |
| Lifting Hook Opening Width | 1" |
| Lifting Hook Type | Swivel Hook With Safety Latch |
| Manufacturers Warranty Length | 1 yr. |
| Material | Die Cast Aluminum |
| Maximum Lift Speed | 26 FPM |
| Maximum Lifting Length | 6 ft. |
| Maximum Pulling Capacity | Not Applicable |
| Min. Between Hooks | 37 7/32" |
| Min. Radius Curve | Not Applicable |
| Minimum Lift Speed | 10 FPM |
| Minimum Retracted Length | 37 3/16" |
| Motor Hp | 3/8 hp |
| Mount Type | Hook Mounted - No Trolley |
| Mounting Type | Hook With No Trolley |
| Number Of Load Chains | 1 |
| Number Of Reeves | 1 |
| Number Of Speeds | 2 |
| Operating Voltage | 120V AC |
| Overload Protection Included | No |
| Pendant Ip Rating | IP65 |
| Phase | 1 |
| Speed Programmability | Programmable By External Controls |
| Starts And Stops Per Hour | 120 |
| Thermal Protection | No |
| Tonnage - Lifting Capacity | 0.125 ton. |
| Trolley Wheel Dia. | Not Applicable |
| Trolley Wheel Material | Not Applicable |
| standard | ASME B30.16, ASME HST-1, NFPA 70 |
Product Details
Electric Chain Hoist
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 14.895000 |
Related Products
| Style | Model | Motor Hp | Phase | Duty Classification | Lifting Capacity | Mount Type | Mounting Type | Lift Length | Body Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ED1000V-10 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | 4,821.17 | |
| A | ED1000V-15 | 3/4 hp | 1 | H2 - Light Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Powder Coated | 5,859.36 | |
| B | NER005L-10 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | 3,496.46 | |
| B | NER005L-20 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | 3,496.46 | |
| B | NER005L-15 | 3/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | 3,496.46 | |
| B | NER005S-20 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | 4,264.59 | |
| B | NER005S-15 | 1 1/4 hp | 3 | H4 - Heavy Duty | 1000 lbs. | Hook Mounted - No Trolley | Hook With No Trolley | - | Painted | 4,264.59 |
