| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
|---|---|
| Brake Type | Side Pedal Brake |
| Caster Brake Type | Swivel Lock With Side Pedal Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Silver |
| Features | Sealed Swivel Bearing |
| Frame Finish | Enamel |
| Includes | Brake, Swivel Lock |
| Includes Thread Guards | No |
| Load Rating | 2500 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 7 3/4" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
|---|---|
| Number Of Wheels | 1 |
| Replacement Wheel | 4DU73 |
| Standard Logo | icwm.png |
| Standards | Icwm |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Single Ball |
| Tread Material, Wheel Material | Steel |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Core Material | Forged Steel |
| Wheel Diameter | 6" |
| Wheel Width | 2" |
| Wheel/tread Color | Silver |
| Wheel/tread Hardness | 179 BHN |
| Wheel/tread Hardness Rating | Extra Hard |

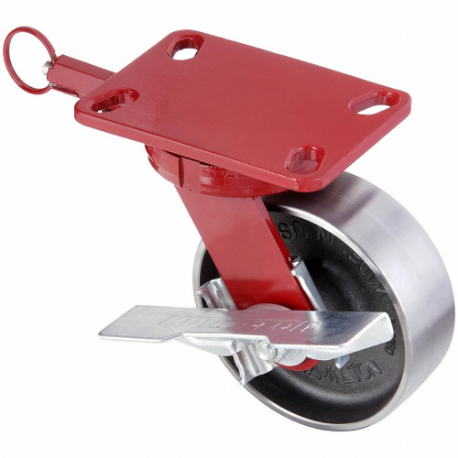

Plate Caster
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 6.772500 |
| Style | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Width | Wheel Bearing Type | Load Rating | Mounting Plate Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | S-WHK-4HFSB-H4SL-FB | Swivel | B | 2 5/8" x 3 5/8" | 3" x 3" | 2" | Precision Ball | 560 lbs. | 4" x 5" | 699.87 | |
| B | 154N26 | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | 270.76 | |
| C | S-HSK-6HMB-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Precision Ball | 600 lbs. | 4 1/2" x 6 1/2" | 626.16 | |
| B | S-HSK-6HNY-H4SL-FB | Swivel | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Plain | 1000 lbs. | 4 1/2" x 6 1/2" | 469.79 | |
| D | 154G40 | Rigid | A | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | 2" | Roller | 1000 lbs. | 4 1/2" x 6 1/2" | 178.00 | |
| E | S-SECK-63HMB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 1000 lbs. | 5 1/4" x 7 1/4" | 1,190.18 | |
| F | S-SECK-63HFSB-H4SL-FB | Swivel | A | 3 3/8" x 5 1/4" | 4 1/8" x 6 1/8" | 3" | Precision Ball | 2400 lbs. | 5 1/4" x 7 1/4" | 1,537.01 |
