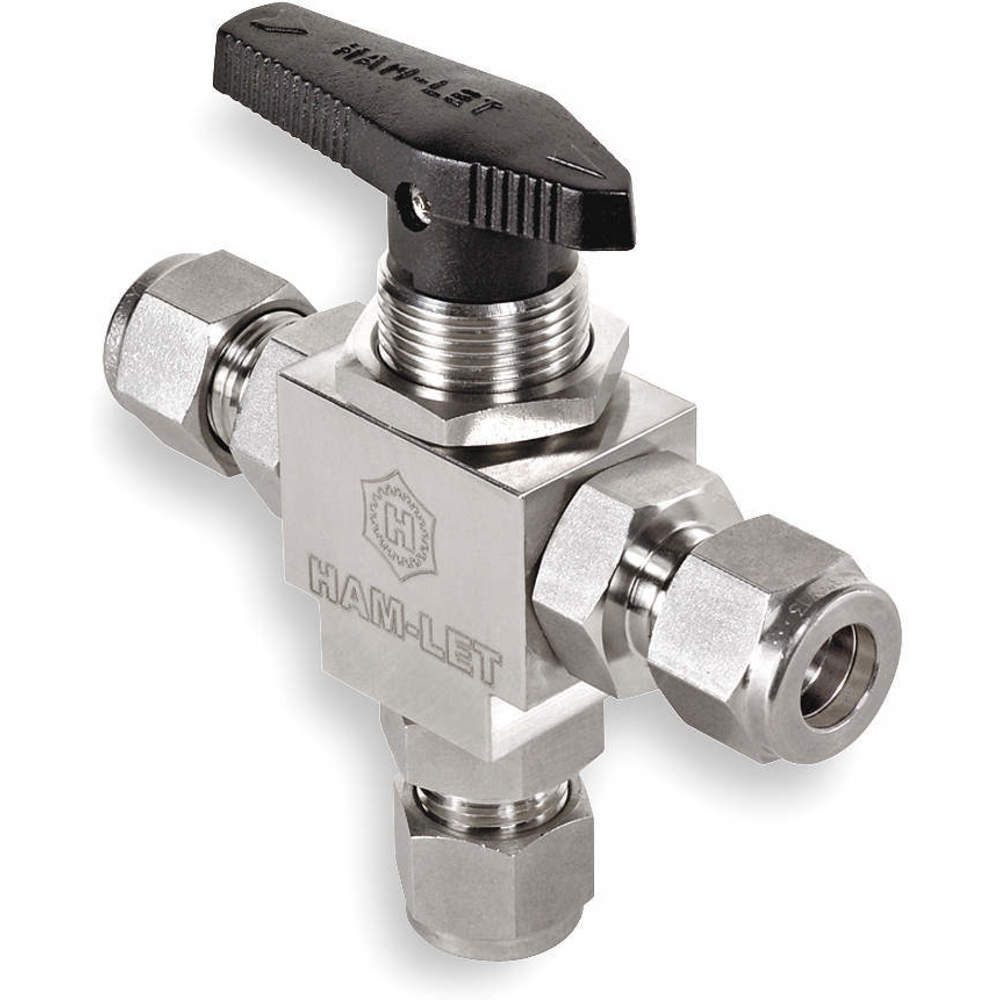

HAM-LET H-6800-SS-L-1/8-RCST Stainless Steel Ball Valve Tube x Tube x Tube 1/8 In
Item: AD3KNT
Model: H-6800-SS-L-1/8-RCST
10 In Stock
Ships within 2 days via
5.00% off
£627.32/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| 3-a Compliance | Not Rated |
|---|---|
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Coefficient Of Volume | 0.15 |
| Features | Panel Mount/1/4 Turn On/Off |
| Flow Pattern | L Flow |
| For Media | Water |
| Grade | Grade 316 |
| Handle | Wedge |
| Handle Color | Black |
| Handle Height | 1.53" |
| Handle Length | 1 24/25" |
| Handle Material | Plastic |
| Handle Type | Toggle |
| Included Mounting | Not Applicable |
| Inlet Connection Size | 1/8" |
| Inlet Connection Type | Let-Lok |
| Max. Pressure | 6000 psi WOG |
| Max. Pressure (cwp) | 6000 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Rated |
| Media Temp. Range | -20°F to +280°F |
|---|---|
| Media Temperature Range | -20°F to +280°F |
| Nominal Valve Size | 1/8" |
| Outlet Connection Size - Side 1 | 1/8" |
| Outlet Connection Size - Side 2 | 1/8" |
| Outlet Connection Type - Side 1 | Let-Lok |
| Outlet Connection Type - Side 2 | Let LOK |
| Overall Length | 3.09" |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Standard |
| Port Type | Standard |
| Pressure For Water | 6000 psi |
| Seal Material | PTFE |
| Seat Material | PCTFE |
| Special Features | Not Applicable |
| Standard Logo | sae.jpg,mil.jpg,asme.png,astm.png,ce.png |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +280°F |
| Vacuum Service Rating | Not Applicable |
| Valve Construction | Three-Piece |
| Valve Ways | 3-Way |
| Vented Ball Valve | Non Vented |
| standard | ASME, ASTM, CE, MIL-F-18866, SAE |
Product Details
Shipping Information
| Height | 8.38 |
|---|---|
| Length | 7.85 |
| Width | 5.84 |
| HS Code | 8481803070 |
|---|---|
| Country Of Origin | IL |
| Weight | 0.315000 |
Related Products
| Style | Model | Handle Material | Seal Material | Overall Length | Coefficient Of Volume | Tube Size | Body Material | Max. Pressure | Ball Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | H-6800-SS-L-1/4-CST | Plastic | PTFE | 3.29" | 0.9 | 1/4" | Stainless Steel | 6000 psi WOG | Stainless Steel | 566.04 | |
| A | H-6800-SS-L-3/8-ICST | Nylon, Metal | PCTFE | - | - | 3/8" | Stainless Steel | 6000 psi WOG | Stainless Steel | 841.78 | |
| A | H-6800-SS-L-1/2-CST | Plastic | - | 4.04" | - | - | Stainless Steel | 6000 psi WOG | Stainless Steel | 1,279.85 |
