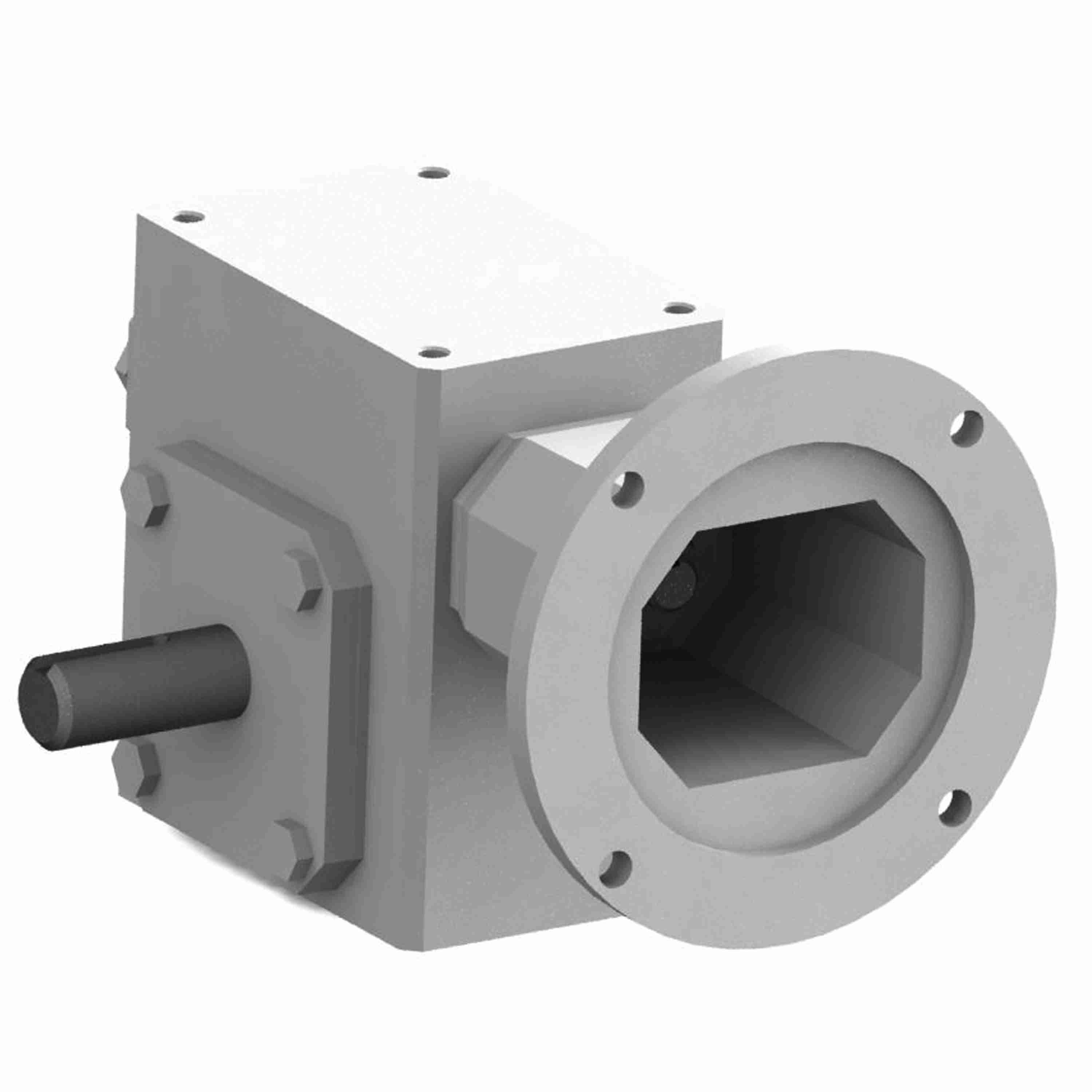

GROVE GEAR GRG8265559.00 GRG-WBM826-40-L-140 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Cast Iron
Item: AY6HEZ
Model: GRG8265559.00
In Stock
Get it by Friday, Apr 17
£1,236.12/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | WBM-L |
|---|---|
| Center Distance | 2.63" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 1.695 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/4" |
| Output Hp | 1.287 hp |
| Output Key Size | 1/4" x 1 3/4" |
| Output Rpm | 43 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 1854 lbs.-in. |
| Overhung Load | 1625 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GRG-WBM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Shipping Information
| Height | 29.84 |
|---|---|
| Length | 40.64 |
| Width | 31.12 |
|---|---|
| Weight | 25.650000 |
Related Products
| Style | Model | max. input hp | output torque | mounting type | series | gear type | gear ratio | center distance | output rpm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GRG8260151.00 | 2.145 hp | - | No Base | - | - | 30:1 | 2.63" | 58.3 RPM | 1,255.61 | |
| A | GRG8265881.00 | - | 1854 lbs.-in. | - | - | - | - | 2.6" | 43.75 RPM | 1,313.42 | |
| B | GRG8260205.00 | 6.693 hp | 1130 lbs.-in. | Base | GRG Series | Worm | - | 2.63" | 350 RPM | 1,600.10 | |
| A | GRG8264029.00 | - | - | - | - | - | - | 2.6" | - | 1,979.25 | |
| A | GRG8263822.00 | - | - | - | - | - | - | 2.6" | - | 1,567.28 | |
| A | GRG8264038.00 | - | - | - | - | - | - | 2.6" | - | 1,979.25 | |
| A | GRG8264009.00 | - | - | - | - | - | - | 2.6" | - | 1,979.25 |
