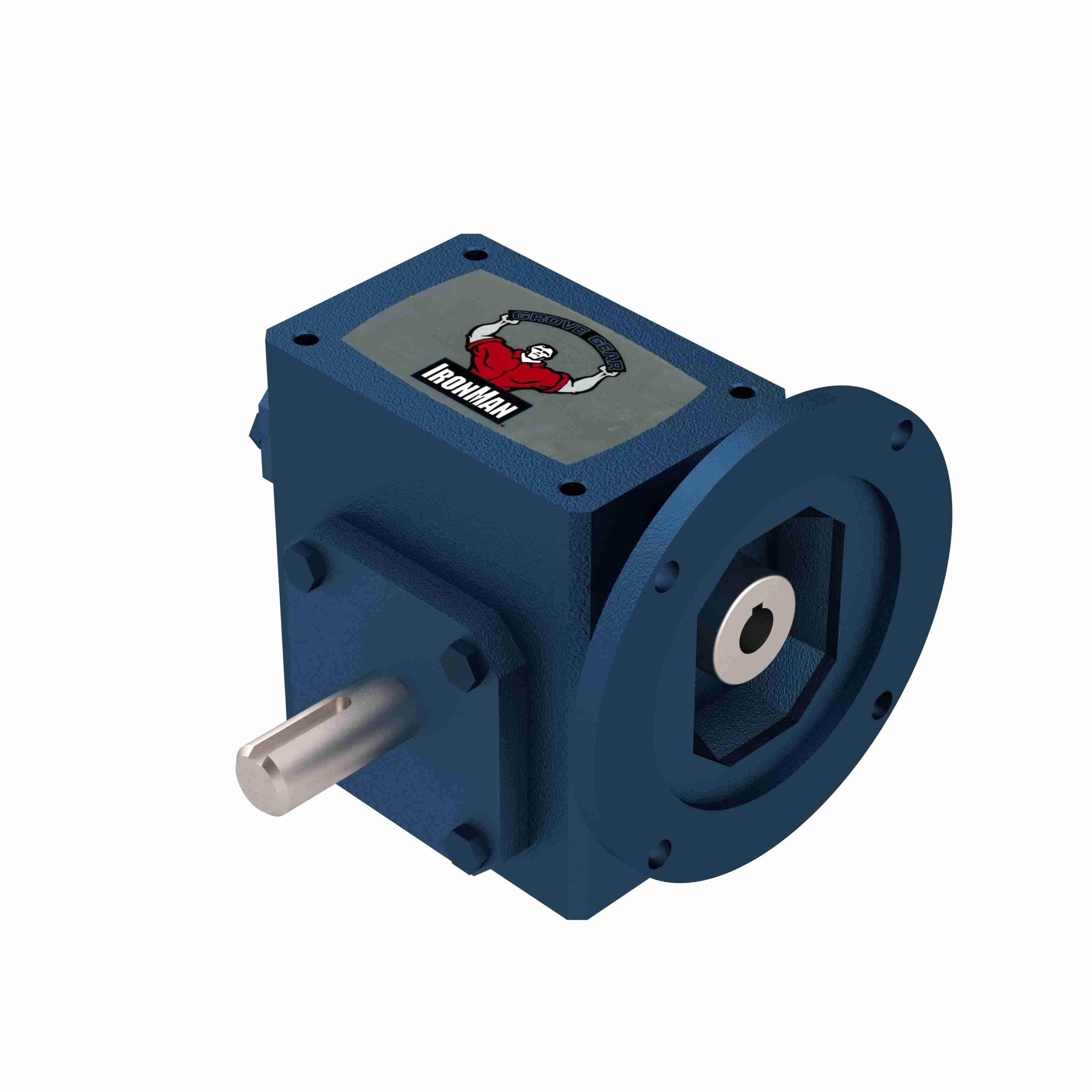

GROVE GEAR GRG8210137.00 GRG-BMQ821-20-D-56 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron
Item: AX9XKG
Model: GRG8210137.00
In Stock
Get it by Friday, Apr 17
£1135.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Case Material | Cast Iron |
|---|---|
| Center Distance | 2.06" |
| Frame Size | 56C |
| Gearbox Type | Worm |
| Hp | 1 29/50 hp |
| Input Bore Size | 5/8" |
| Material | Cast Iron |
| Max Overhung Load | 1200 lbs. |
| Output Rpm | 87.5 RPM |
| Output Shaft Dia. | 1" |
|---|---|
| Output Shaft Type | Double Shaft |
| Output Type | Double Shaft |
| Ratio | 20:1 |
| Service Factor 1 | 1.05 SF @ 1 1/2 HP |
| Service Factor 2 | 1.58 SF @ 1 HP |
| Service Factor 3 | 2.11 SF @ 3/4 HP |
| Torque Rating | 964 lbs.-in. |
Product Details
Shipping Information
| Height | 26.67 |
|---|---|
| Length | 27.15 |
| Width | 23.01 |
|---|---|
| Weight | 13.050000 |
