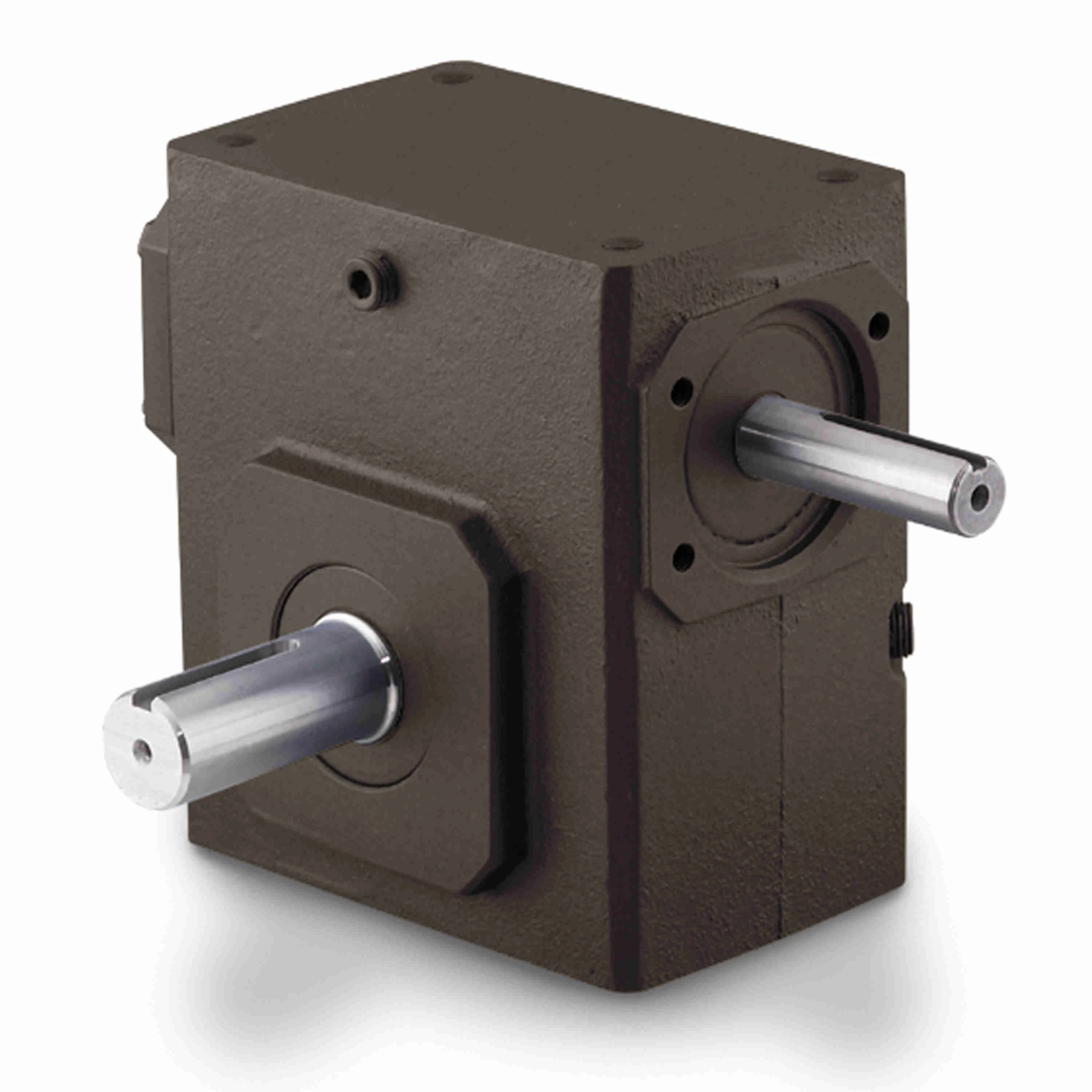

GROVE GEAR GR8600009.00 GR-B860-15-R Worm Reducer, 15:1 Ratio, 1.5 Inch I.D, 2.5 Inch O.D, Cast Iron
Item: AX9RZN
Model: GR8600009.00
In Stock
Get it by Friday, Apr 17
£9076.27/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Center Distance | 6" |
|---|---|
| Gear Ratio | 15:1 |
| Gearbox Type | Worm |
| Height | 16 1/2" |
| Input Bore Size | 1 1/2" |
| Input Dia. | 1 1/2" |
| Input Keyway Size | 3/8" x 3" |
| Input Shaft Length | 3.41" |
| Input Style | Shaft |
| Input Type | Solid Shaft |
| Lubrication | PAG Synthetic Oil |
| Material | Cast Iron |
| Max Input Hp | 19 23/100 hp |
| Max. Input Hp | 19.23 hp |
|---|---|
| Mounting Type | Base |
| Output Dia. | 2 1/2" |
| Output Hp | 17.61 hp |
| Output Keyway Size | 5/8" x 4" |
| Output Shaft Dia. | 2 1/2" |
| Output Shaft Length | 4.65" |
| Output Shaft Type | Right Handed Shaft |
| Output Type | Shaft |
| Product Series | GR Series |
| Torque Rating | 9515 lbs.-in. |
| Type | Right Angle Single Reduction |
Product Details
Shipping Information
| Height | 57.15 |
|---|---|
| Length | 101.6 |
| Width | 93.98 |
|---|---|
| Weight | 144.450000 |
Related Products
| Style | Model | output torque | max. input hp | mounting type | output rpm | output | output style | output shaft assembly code | output shaft | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR8602352.00 | - | - | - | - | Left | - | - | - | 4,672.54 | |
| A | GR8602257.00 | 27386 lbs.-in. | - | - | 2.33 RPM | - | - | - | - | 8,271.55 | |
| A | GR8602309.00 | - | - | - | - | Right | - | - | - | 8,271.55 | |
| B | GR8600572.55 | 5886 lbs.-in. | 2.571 hp | Shaft Mount | 17 RPM | - | H1 | H1 | Hollow Bore | 11,126.27 | |
| C | GR8600001.00 | 8467 lbs.-in. | 24 99/100 hp | Base | 175 RPM | - | L | L | Solid Shaft | 7,458.50 | |
| D | GR8600108.00 | 7264 lbs.-in. | 3.702 hp | Base | 21 RPM | - | R | R | Solid Shaft | 8,368.42 | |
| B | GR8600592.32 | 10203 lbs.-in. | 8.722 hp | Shaft Mount | 43 RPM | - | H1 | H1 | Hollow Bore | 11,126.27 |
