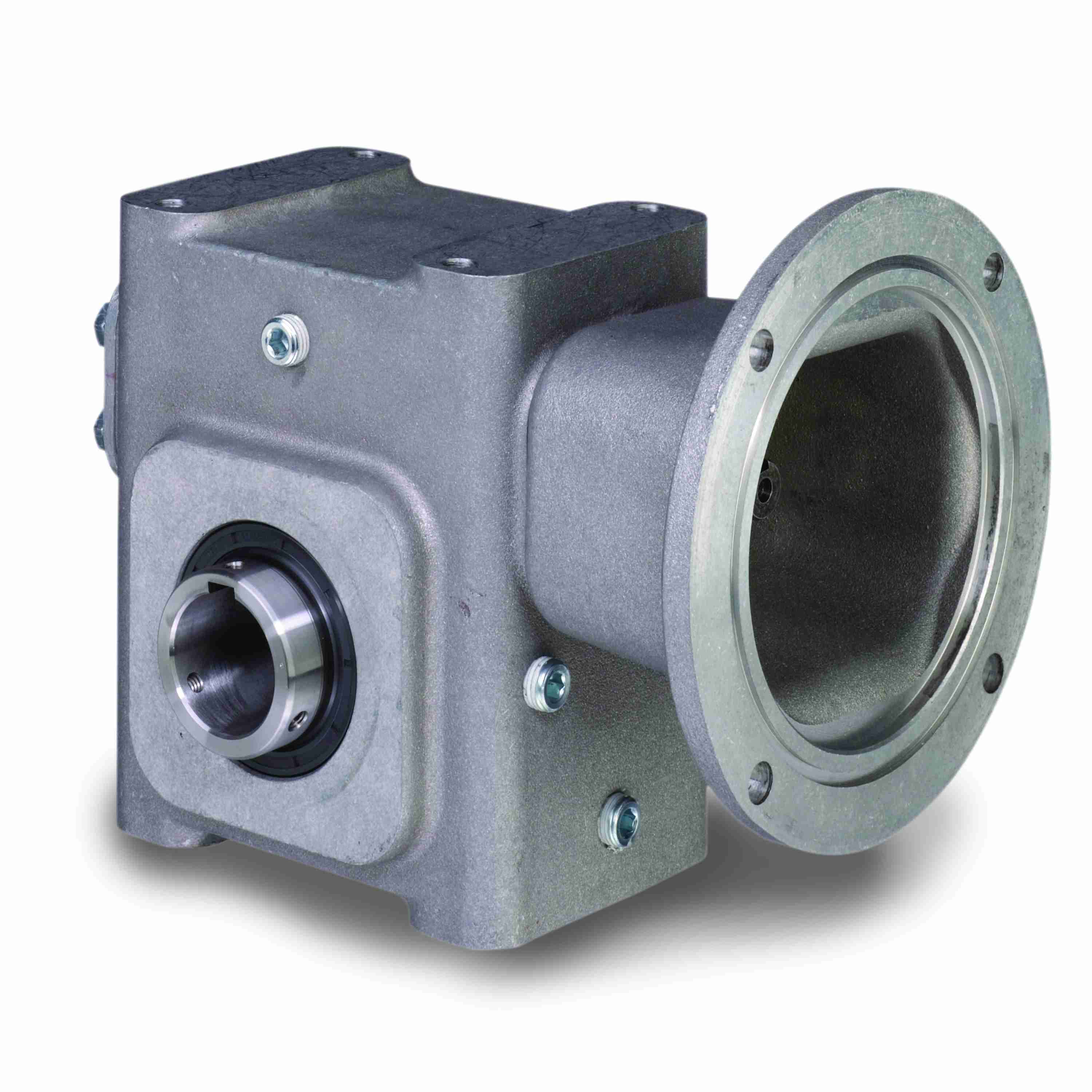

GROVE GEAR EL8210533.23 EL-HM821-50-H1-140-23 Worm Reducer, 50:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Aluminum

Item: AX8MQT
Model: EL8210533.23
In Stock

Get it by Thursday, Apr 16

£2071.02/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Assembly HM-H1
Bore Code 23
Center Distance 2.06"
Frame 140TC
Gear Type Worm
Gearbox Type Worm
Housing Material Aluminum
Input Bore (c Face) 7/8"
Input Bore Size 7/8"
Input Dia. 7/8"
Input Keyway Size 3/16" x 1/2"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Quill Dia. 7/8"
Input Rpm 1750 RPM
Input Style C Face Coupled
Keyway Size 3/16" x 3/32"
Material Aluminum
Max Input Hp 769/1000 hp
Max. Input Hp 0.769 hp
Mounting Type Shaft Mount
No. Of Gear Reductions 1
Output Diameter 1.438"
Output Hp 0.539 hp
Output Key Size 3/8" x 3"
Output Rpm 35 RPM
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Orientation H1
Output Shaft Type Hollow Shaft
Output Style H1
Output Torque 970 lbs.-in.
Product Line EL Series - Aluminum Worm Gear Reducers
Reducer Worm - Right Angle
Reduction Type Single
Series EL Series
Series Style EL-HM-H1
Service Factor 1
Shaft Seal Material Viton

Product Details

Shipping Information

Height 26.67
Length 27.15
Width 23.01
Weight 9.000000
