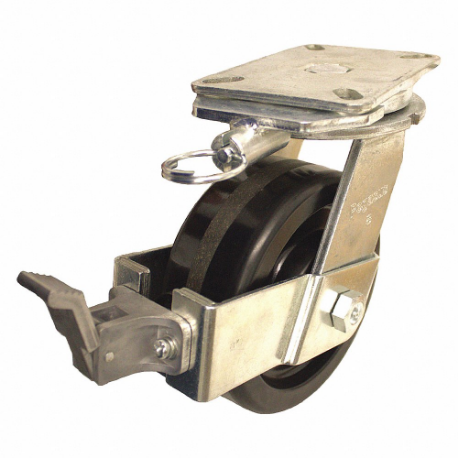

GRAINGER P29S-PH100R-18-WK-DL Standard Plate Caster, 10 Inch Dia, 12 1/2 Inch Height, Swivel
Item: CQ6YBD
Model: P29S-PH100R-18-WK-DL
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Dollies, Dough Troughs, Platform Trucks, Scrap Metal Carriers, Tooling Fixtures, Tow Line, Utility Carts |
|---|---|
| Brake Type | Face Contact Brake |
| Caster Brake Type | Swivel Lock With Face Contact Brake |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Features | Floor Protective |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Load Rating | 2900 lbs. |
| Mounting Bolt Dia. | 1/2" |
| Mounting Height | 12 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size & Bolt Hole Pattern | 5 1/4" X 7 1/4" ( A ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Positions | 4 |
| Number Of Wheels | 1 |
|---|---|
| Replacement Wheel | Mfr. No. P-PH-100X030/075R |
| Standard Logo | icwm.png |
| Standards | Icwm |
| Swivel Construction | Kingspin |
| Swivel Lock Type | Directional Lock |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 9 1/2" |
| Tread Material, Wheel Material | Phenolic |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
Product Details
Plate Caster
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 12.600000 |
