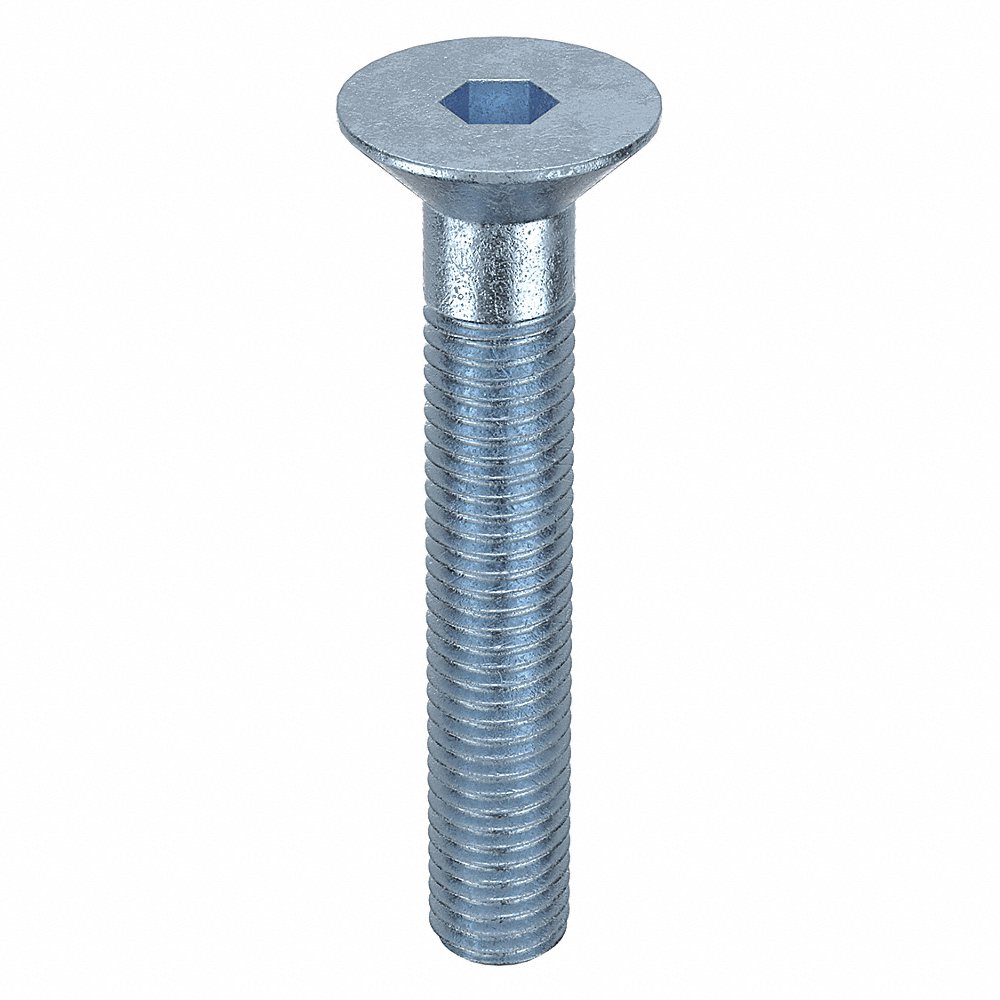

GRAINGER M07470.120.0070 Socket Flat Head Cap Screw, M12x1.75 Thread Size, Flat, 70mm Lg., 7.4mm Head Ht., 25PK
Item: AH7VBP
Model: M07470.120.0070
22 In Stock
Ships within 2 days via
5.00% off
£46.75/pkg. of 25
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 8.8 |
|---|---|
| Combined Material & Grade | Class 8 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | Iso 10642 |
| Display Qty | 25 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C22-C34 |
| Head Dia. | 26.88 mm |
| Head Height | 7.4 mm |
| Head Type | Flat |
| Length | 70 mm |
| Material | Steel |
| Material Grade/class | Class 8 |
|---|---|
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 800 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 60 mm |
| Screw Length | 70 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 60 mm |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Socket Flat Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 38.1 |
| width | 17.78 |
|---|---|
| weight | 1.560200 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M07470.030.0006 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 8.08 | |
| B | M07470.030.0008 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 8.30 | |
| C | M07470.030.0010 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 10.26 | |
| D | M07470.030.0012 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 9.07 | |
| E | M07470.030.0016 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 12.24 | |
| F | M07470.030.0020 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 12.80 | |
| G | M07470.030.0025 | M3 x 0.5 | Fully Threaded | 2 mm | 6.72 mm | 1.86 mm | 800 N/sq. mm | Rockwell C22-C34 | -58°F to +302°F | 14.93 |
