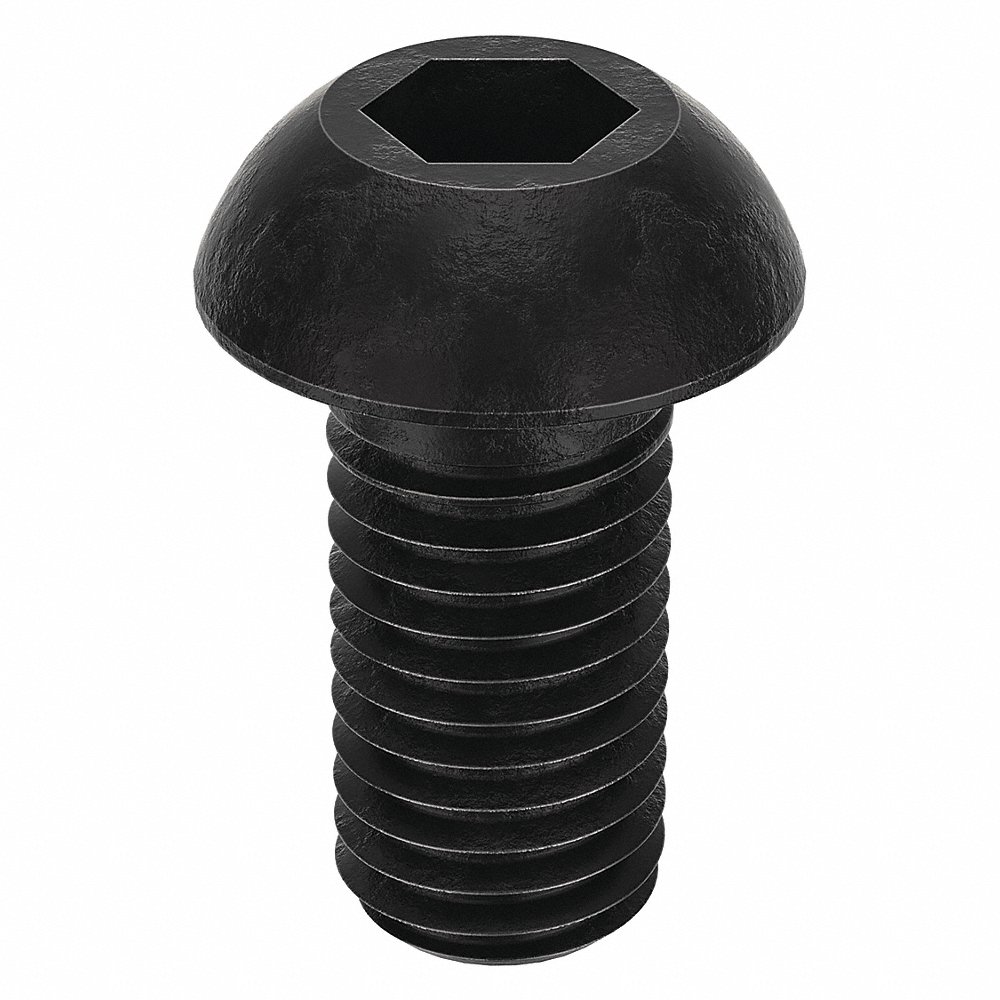

GRAINGER M07150.120.0025 Socket Head Cap Screw, M12x1.75 Thread Size, Button, 25mm Lg., 6.6mm Head Ht., Blk Oxide, Steel, 50PK
Item: AH7UEW
Model: M07150.120.0025
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 10.9 |
|---|---|
| Combined Material & Grade | Class 10.9 Steel |
| Dimensional Standards | Iso 7380-1 |
| Display Qty | 50 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 21 mm |
| Head Height | 6.6 mm |
| Head Type | Button |
| Length | 25 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
|---|---|
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 1200 N/sq. mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 25 mm |
| Screw Length | 25 mm |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Product Details
Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 38.1 |
| width | 17.78 |
|---|---|
| weight | 1.373800 |
Related Products
| Style | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Min. Tensile Strength | Hardness | Temp. Range | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U07150.019.0200 | #10-24 | Fully Threaded | 1/8" | 0.361" | 0.101" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 21.21 | |
| B | U07150.031.0100 | 5/16"-18 | Fully Threaded | 3/16" | 0.547" | 0.166" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 23.71 | |
| C | U07150.037.0150 | 3/8"-16 | Fully Threaded | 7/32" | 0.656" | 0.199" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 18.29 | |
| D | U07150.050.0075 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 16.36 | |
| E | U07150.050.0100 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 17.59 | |
| F | U07150.050.0125 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 14.27 | |
| G | U07150.050.0150 | 1/2"-13 | Fully Threaded | 5/16" | 7/8" | 0.265" | 145000 psi | Rockwell C37-C45 | -50°F to +550°F | 16.69 |
