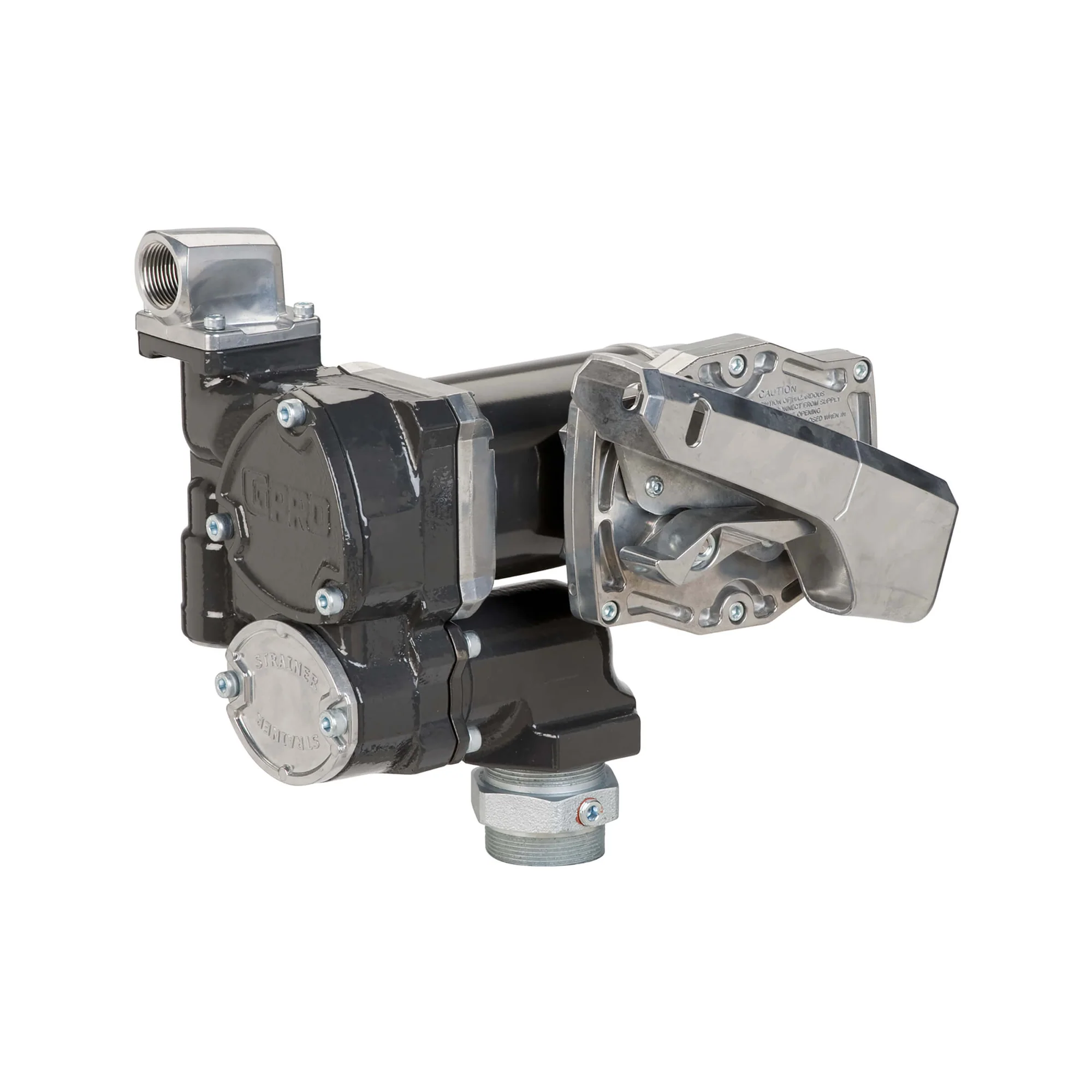

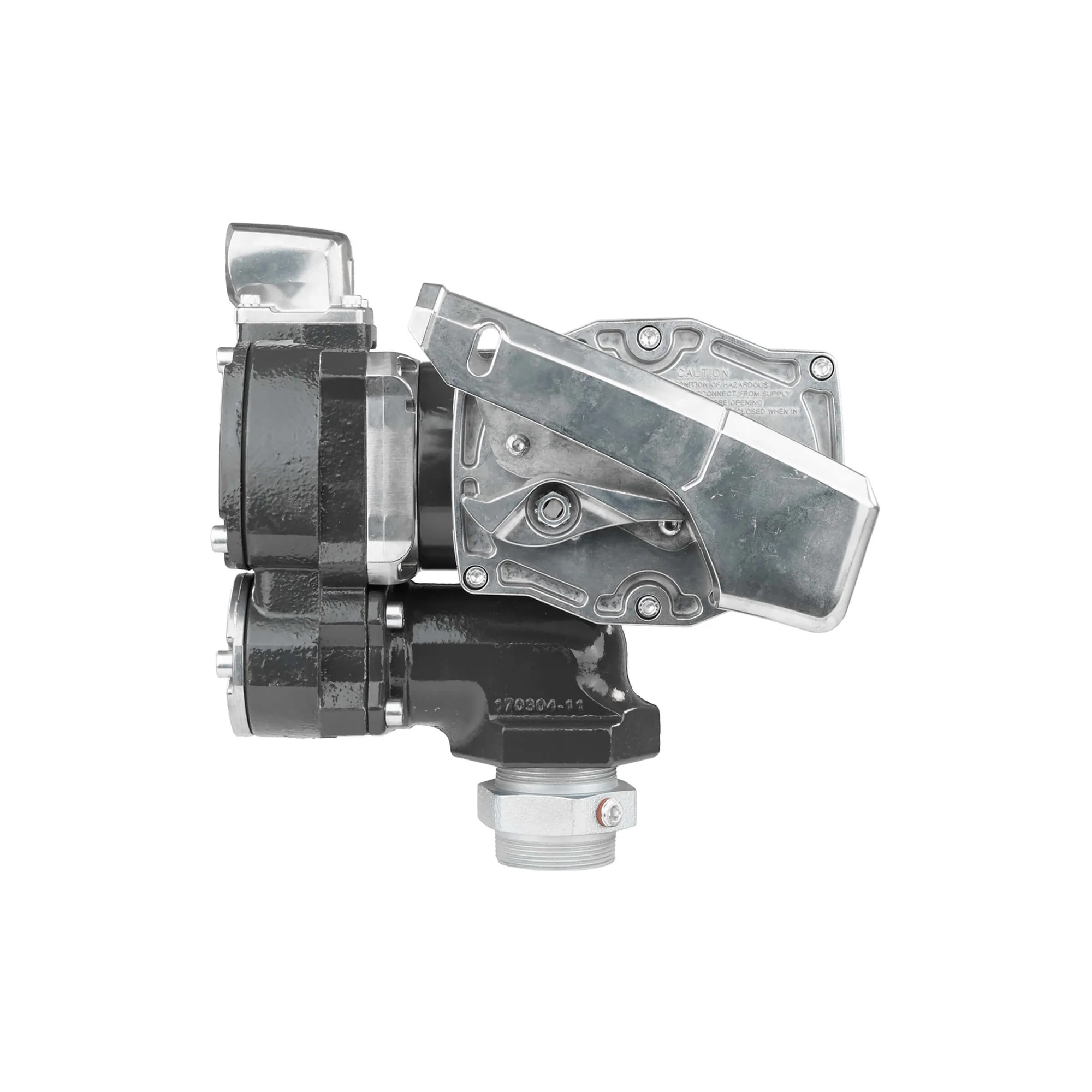

GPI V25-012PO 170000-01 Fuel Transfer Pump, 12 VDC, 25 GPM, Cast Iron

Item: CP6PUB
Model: V25-012PO
In Stock

Get it by Friday, Apr 17

£1397.84
5.00% off
£1327.96/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Agency Compliance Class I Div 2, Culus
Amps Rated 35A
Bearing Type Sealed
Bung Adapter Connection Type MNPT
Bung Adapter Material Aluminum
Bung Connection Diameter 2"
Bypass Valve Yes
Diesel Exhaust Fluid Compatible No
Discharge Connection Type FNPT
Discharge Hose Size Not Included
Discharge Lift Up to 18 ft. (5.5 m) at Sea Level 70°F (21.1°C)
Dispensing Hose Not Included
Duty Cycle 30 min. On/30 min. Off
Explosion Proof Yes

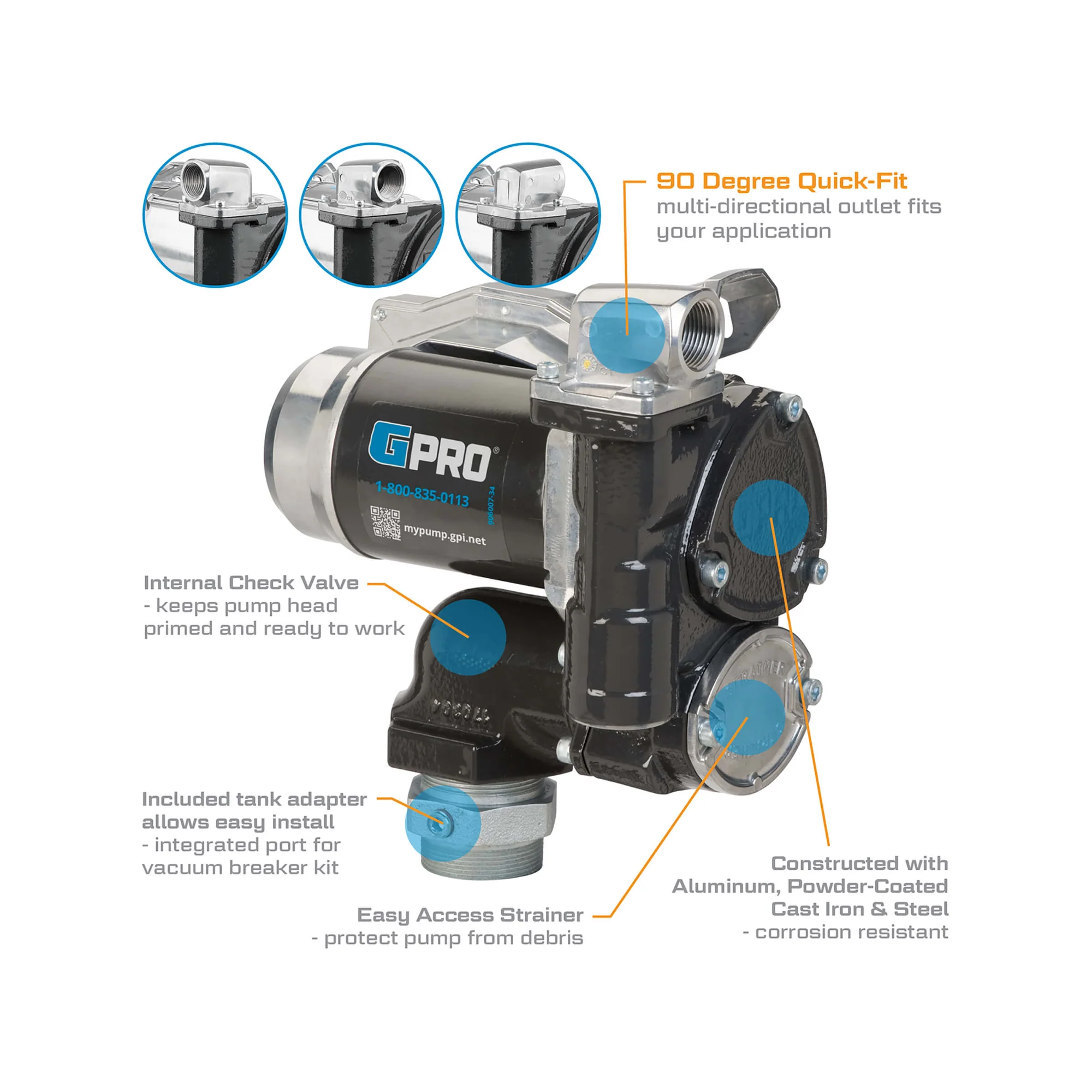

Features Easy Access To Fuel Strainer, Factory Installed Power Cord, Internal Check Valve W/Perfect Prime To Keep Pump Head Primped, Lockable Nozzle Holder To Deter Fuel Theft, Multidirectional 90 Degree Outlet, Quick-Fit Modular Design, Safe Stop Power Down - 30 Minute Auto Power Down With Easy Reset, Explosion Proof Motor, Thermal Overload Protection
Food Grade No
For Container Size 30 gal.
For Media Type Diesel, Gasoline, Kerosene
Frequency (hz) 60 Hz
Full Load Amps 35A
Full Load Current (a) 40A
Height Above Container 13"
Horsepower 41/100 hp
Housing Material Cast Iron
Hp 2 hp, 5 hp

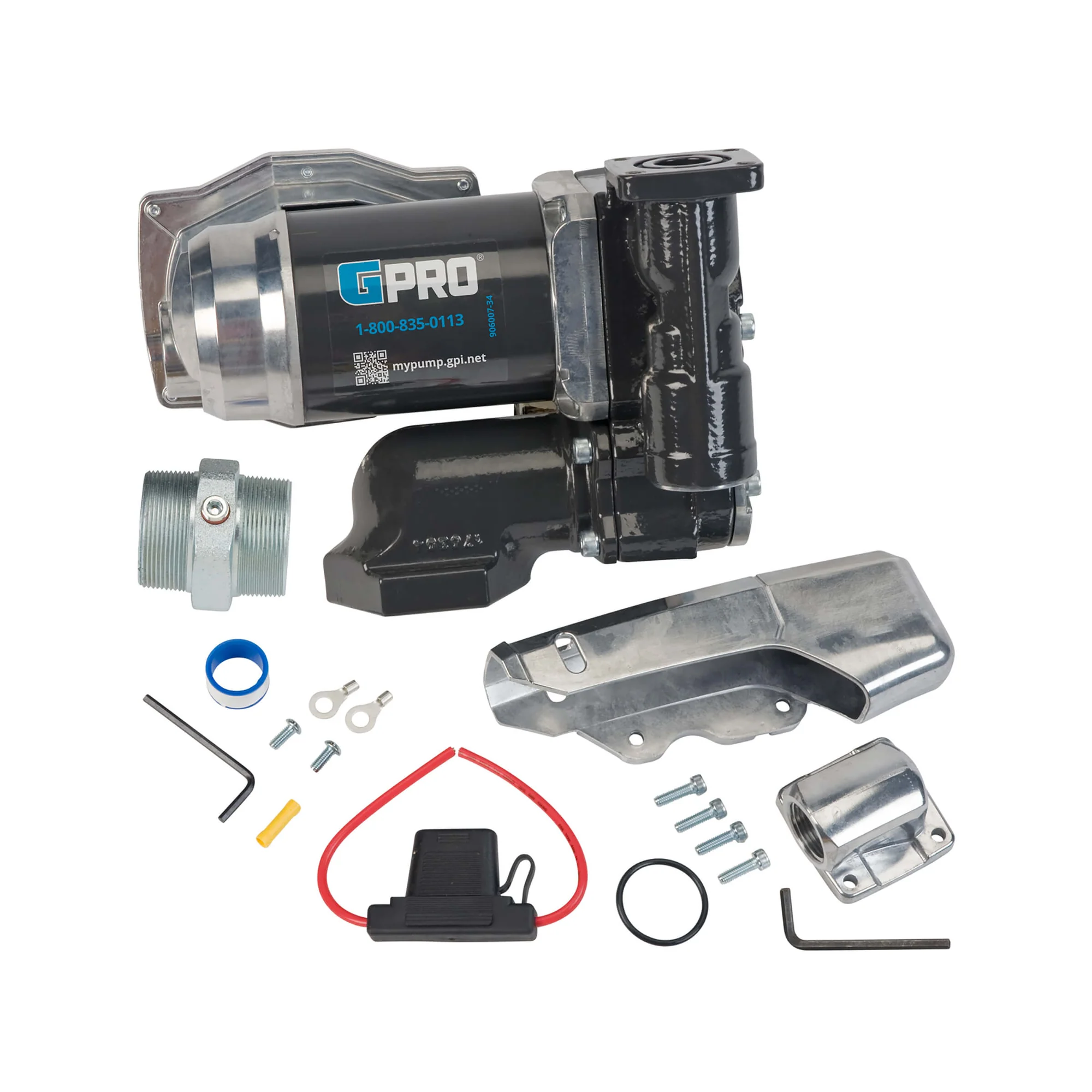

Includes V25-12Po 12V DC 25 Gpm Fuel Transfer Pump, Modular Fitting W/Hardware, Tank Adapter, Fuse Assembly, Owner'S Manual
Includes Bung Adapter Yes
Includes Spout No
Includes Suction Tube Yes
Inlet Size 1"
Inlet Type FNPT , NPT
Max. Discharge Pressure 20 psi
Max. Flow Rate 25 GPM
Maximum Fluid Temperature 125°F
Maximum Head 15 ft.
Maximum Outlet Pressure 20 psi
Maximum Viscosity 50 SUS
Media Type Diesel, Gasoline, Kerosene
Meter Not Included
Metered No
Minimum Fluid Temperature -20°F
Motor Enclosure Explosion Proof
Motor Hp 2/5 hp
Motor Speed 1620 RPM
Mount Type Bung
Mounting Thread Size 2"
Mounting Thread Type MNPT
Mounting Type Direct
Nozzle Not Included
Nozzle Holder Type Lockable With Spout Guard
Nozzle Material Aluminum
Nozzle Type Not Included
Number Of Phases 1
Operating Temp. -20°F to +125°F
Outlet Size 1"
Outlet Type FNPT
Overall Height 13"
Overall Length 12"
Overall Width 13"
Power Cord Not Included
Power Cord Length 18 ft.
Power Source Electric
Pressure 20 psi
Pump Application Stationary Installations, Stationary Locations In Fleet
Pump Connection Type FNPT
Pump Design Rotary Vane
Pump Housing Material Aluminum, Steel, Cast Iron
Pump Kit Type Pump Only
Pump Mount Size 2"
Rated Voltage 12V DC
Runs Dry No
Seal Material Buna N
Seal Type Mechanical
Self Priming Yes
Spout Material Aluminum
Standard Logo Class I Div 1, Culus Listed, Iecex/Atex Zone 1
Suction Lift Up to 15 ft. (4.5m) at Sea Level 70°F (21.1°C)
Suction Pipe Not Included
Suction Tube Length 40"
Technology Sliding Vane
Thermal Protection Yes
Variable Speed No
Voltage Input 12V DC
Wetted Materials Acetal, Aluminum, Carbon, Cast Iron, FKM, NBR, PBT, Polyester, Steel

Product Details

Shipping Information

Height 33.02
Length 30.48
Width 33.02
Country Of Origin US
Weight 18.450000
