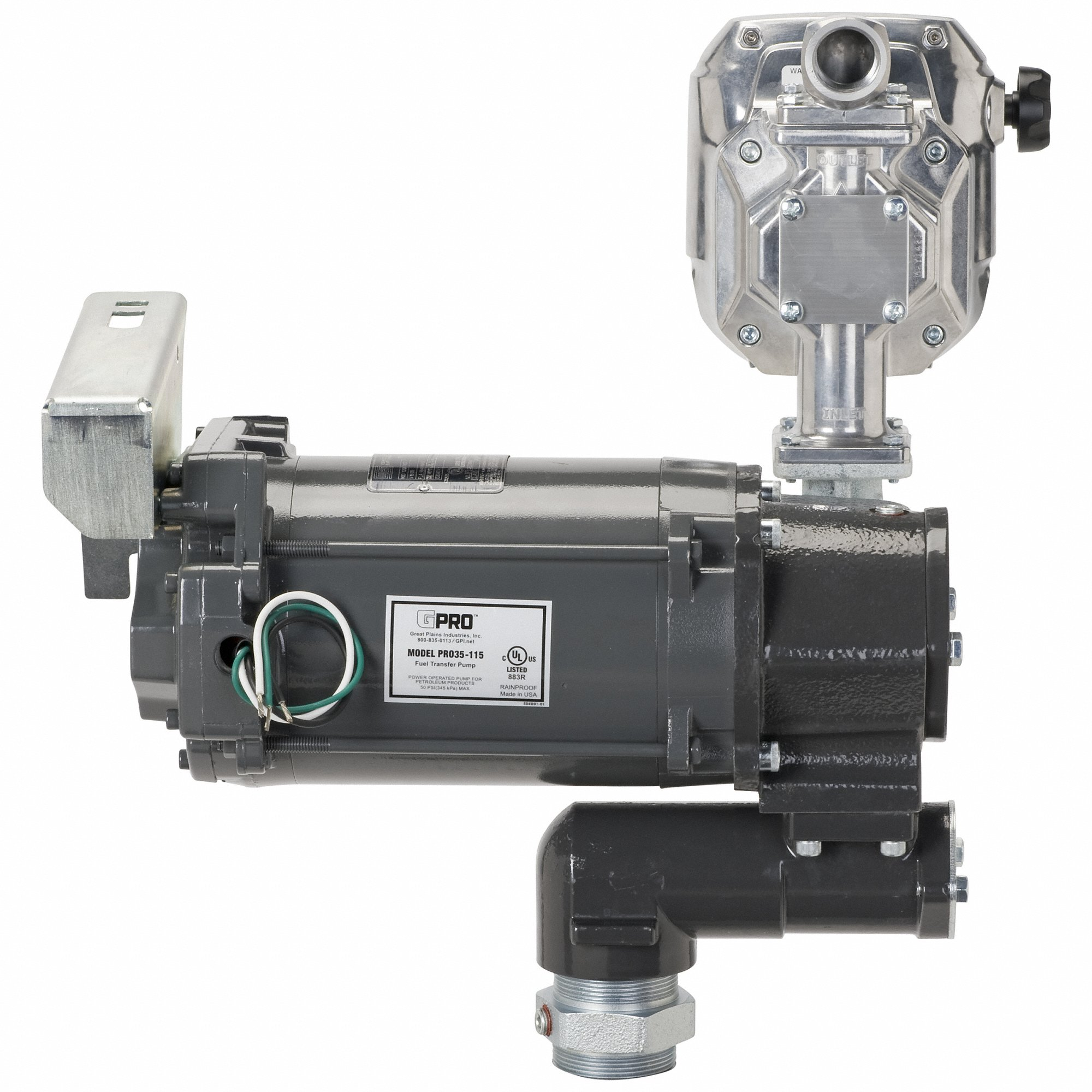

GPI PRO35-115PO/QM40G8N 504000-70 Fuel Transfer Pump, 115 VAC, 35 GPM, Cast Iron

Item: CP6PTR
Model: PRO35-115PO/QM40G8N
In Stock

Get it by Friday, Apr 17

£3,584.78
5.00% off
£3,405.54/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Agency Compliance Atex, Class I Div 1, Culus, Iecex
Bearing Type Sealed
Bung Adapter Connection Type MNPT
Bung Adapter Material Aluminum
Bung Connection Diameter 2"
Bypass Valve Yes
Discharge Connection Type FNPT
Discharge Hose Size Not Included
Duty Cycle 30 min. On/30 min. Off
Explosion Proof Yes
Features Self Priming, Durable Powder-Coated Finish, Explosion Proof Motor, Thermal Overload Protection, Vacuum Breaker Ready
For Container Size 30 gal.
For Media Type Avgas, Diesel, Gasoline, Jet A-1, Kerosene
Frequency (hz) 60 Hz
Full Load Amps 9.8A
Height Above Container 15"
Hose Dia. 1"
Housing Finish Powder Coated
Housing Material Cast Iron
Hp 3/4 hp

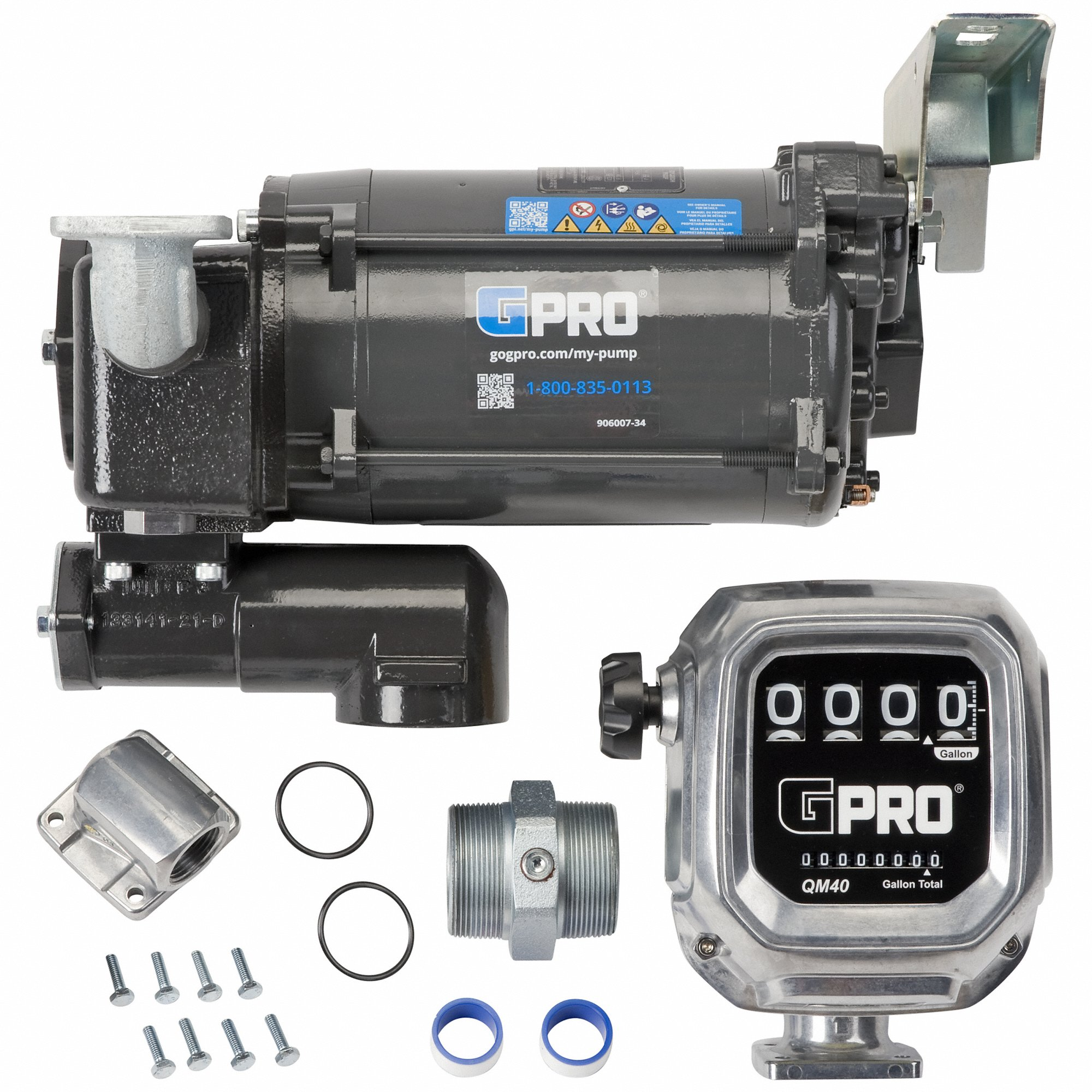

Includes Pro35-115Po/Qm240G8N 115/230V 35 Gpm Pump, Qm Meter - Gallon Register, Tank Adapter, Lockable Nozzle Holder, Owner'S Manual
Includes Bung Adapter Yes
Includes Spout No
Includes Suction Tube No
Inlet Type NPT
Max. Flow Rate 35 GPM
Max. Fluid Temp. 125°F
Max. Head 15 ft.
Max. Outlet Pressure 25 psi
Max. Viscosity 50 SUS
Media Type Diesel, Gasoline, Kerosene
Meter Mechanical(gal.)
Meter Uom Gal.
Metered Yes
Min. Fluid Temperature -20°F
Motor Enclosure Explosion Proof
Motor Hp 3/4 hp
Motor Speed (rpm) 1725 RPM
Mount Type Bung
Nozzle Type Not Included
Number Of Phases 1
Outlet Size 1"
Overall Height 18"
Overall Length 19"
Overall Width 19"
Power Source Electric
Pressure 25 psi
Pump Application Stationary Installations, Stationary Locations In Fleet
Pump Connection Type FNPT
Pump Design Rotary Vane
Pump Kit Type Pump With Meter
Pump Mount Size 2"
Rated Voltage 230V AC
Runs Dry No
Seal Material Buna N
Seal Type Mechanical
Self Priming Yes
Standard Logo Class I Div 1, Culus Listed, Iecex/Atex Zone 1
Thermal Protection Yes
Variable Speed No

Shipping Information

Height 45.72
Length 48.26
Width 48.26
Country Of Origin US
Weight 36.900000
