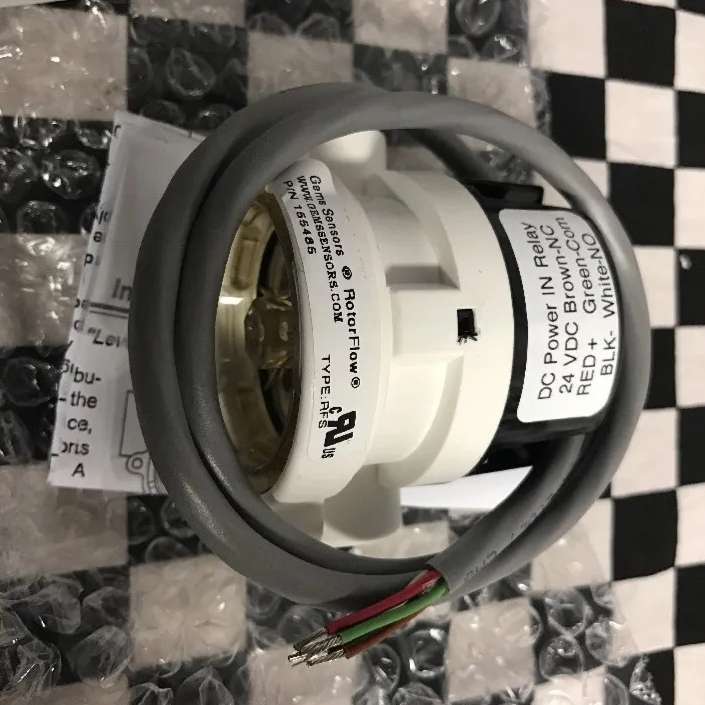

GEMS SENSORS RFS 155485 Liquid Flow Switch Rotor Spdt 35ma/95ma

Item: AA8WUH
Model: RFS 155485
15 In Stock

Ships within 2 days via

£598.64
5.00% off
£568.72/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Body Material Polypropylene
Connection Size 1/2"
Connection Type FNPT
Contact Rating (ac) 45 Ma @ 115V (No Load), 95 Ma @ 115V (Load-Relay Energized)
Contact Rating (dc) 20 mA @ 24V
Dc Contact Rating 20 Ma @ 24V
Filter Rating 150 µm
Filter Rating - Maximum 150 µm
Flow Rate - Maximum 20 GPM
Flow Rate - Minimum 4 GPM
Flow Switch Type Hall Effect
Fluid Connection 1/2" FNPT
Height 2 2/5"
Housing Material Polypropylene
Length 2 2/5"
Max. Ambient Temp. 150°F
Max. Ambient Temperature 180°F
Max. Filter Rating 150 µm
Max. Flow Rate 20 GPM
Max. Media Temp. 180°F
Max. Pressure 100 psi
Media Temp. Range -20°F to +180°F
Min. Ambient Temp. -20°F
Min. Flow Rate 4 GPM
Min. Media Temp. -20°F
Overall Height 2 2/5"
Overall Length 2.4"
Overall Width 3.1"
Series RFS Series
Set Point Configuration Adjustable
Standard Logo ce.png, ul.png
Switch Position Normally Closed, Normally Open
Switch Type SPDT
Type Rotor
Voltage 24V DC
Wetted Material Buna N, Ceramic, Polypropylene, Polysulfone
Width 3.1"
standard CE CERTIFIED, UL LISTED

Product Details

Shipping Information

Height 11.94
Length 9.65
Width 6.86
HS Code 8481809015
Country Of Origin US
Weight 0.157500
