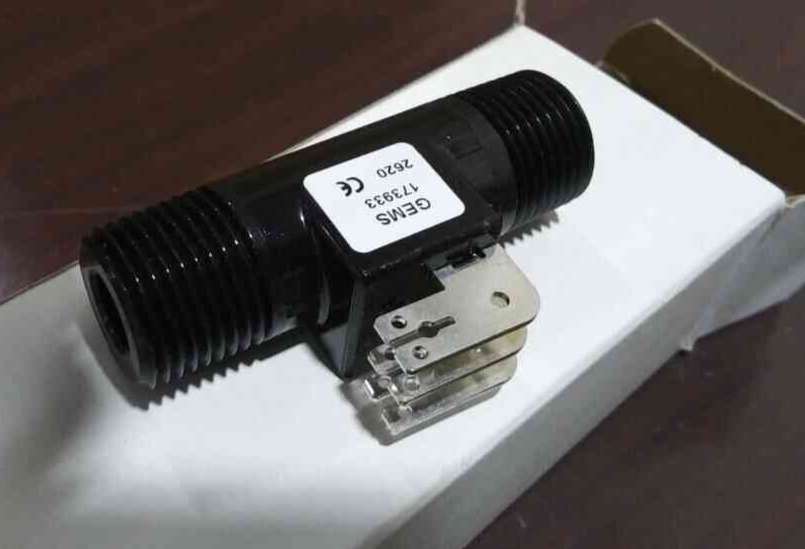

GEMS SENSORS FT-110 173933 Flow Rate Sensor Turbine 2 Gpm Max

Item: AA8WQK
Model: FT-110 173933
27 In Stock

Ships within 2 days via

£329.81
5.00% off
£313.31/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Flow Rate Sensor
Accuracy -3% to +3%
Burst Pressure 2500 psi
Burst Pressure (psi) 2500 psi
Circuit Type NPN
Connection Size 3/8"
Connection Type NPT
Filter Rating 50 µm
Filter Rating - Maximum 50 µm
Flow Rate - Maximum 2 GPM
Flow Rate - Minimum 0.13 GPM
Flow Rate Range 0.13-2 GPM
Flowmeter Type Turbine
Height 1 3/16"
Housing Material Nylon
Includes Spade Terminals
Inlet Size 3/8"
Inlet Type MNPT
Inlet/outlet Connection 3/8"
Inlet/outlet Connection Type NPT
Input Power 5-24V DC
Length 2 1/6"
Max. Flow Rate 2 GPM
Max. Operating Pressure 200 psi
Max. Operating Temp. 212°F
Max. Viscosity 81 SUS
Max. Voltage 24V DC
Min. Flow Rate 0.13 GPM
Operating Pressure 200 psi
Operating Temperature (minimum) -4°F
Outlet Size 3/8"
Outlet Type MNPT
Output Frequency 575 Hz
Output Frequency Range 38-575 Hz
Overall Height 1.2"
Overall Length 2.2"
Overall Height 1 1/5"
Overall Width 0.7"
Pulse Rate 17400 pulses/gal.
Pulses Per Gallon 17400 pulses/gal.
Pulses Per Liter 4600 pulses/L
Recommended Filtration (microns) 24 µm
Repeatability -0.5% to +0.5%
Series FT-100 Series
Standard Logo ce.png,ccsaus.png,rohs.png
Termination Spade terminals
Transistor Circuit Type NPN
Type Turbine
Viscosity - Maximum 81 SUS
Voltage Range 24V DC
Wetted Material Nylon, PTFE Graphite
Wetted Material Nylon, PTFE, Graphite
Width 45/64"
standard CE CERTIFIED, CSAUS CERTIFIED, ROHS

Product Details

    • Output Frequency (Hertz) (38 to 575)
    • Pulses per Liter (4600)

Shipping Information

height 10.92
length 4.57
width 3.81
hs code 9026104000
country of origin CH
weight 0.022500
