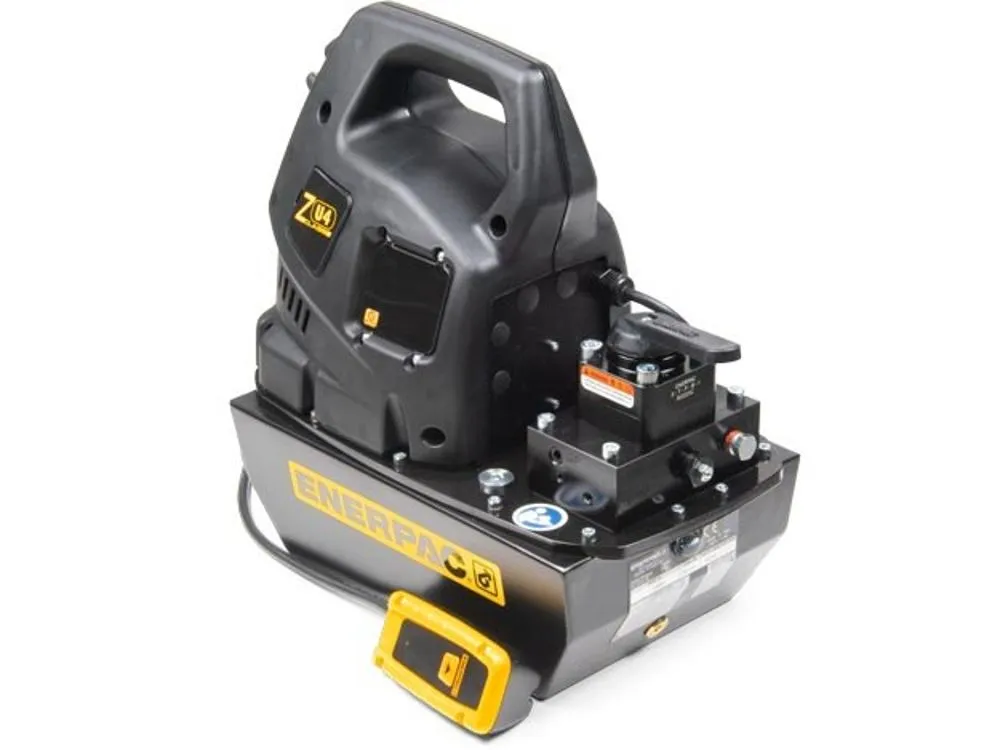

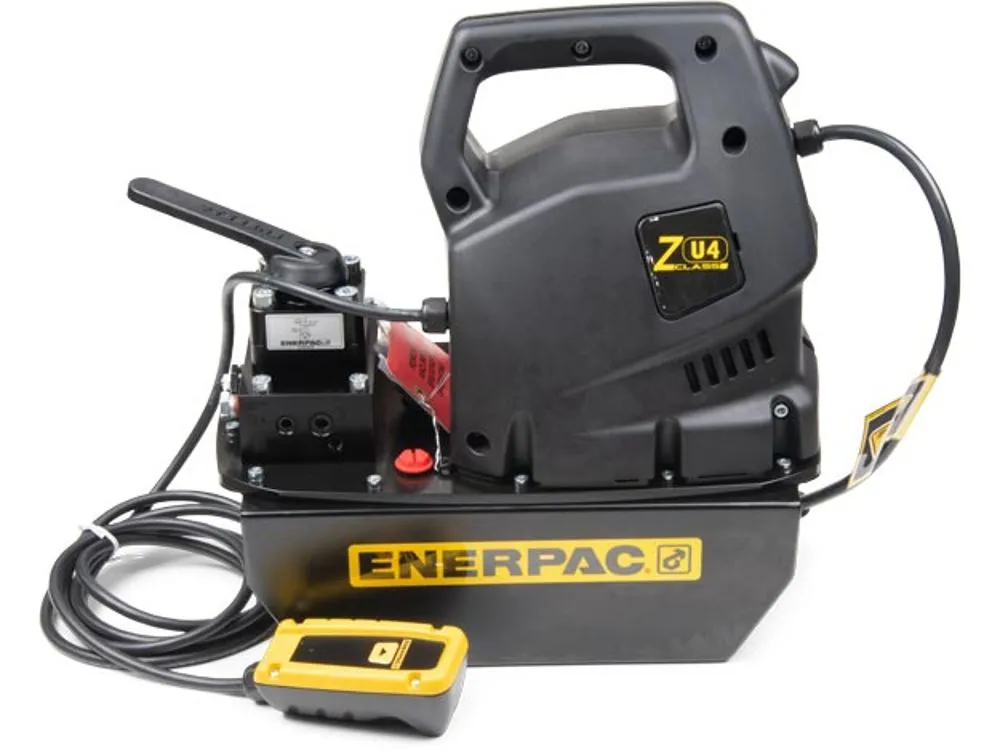

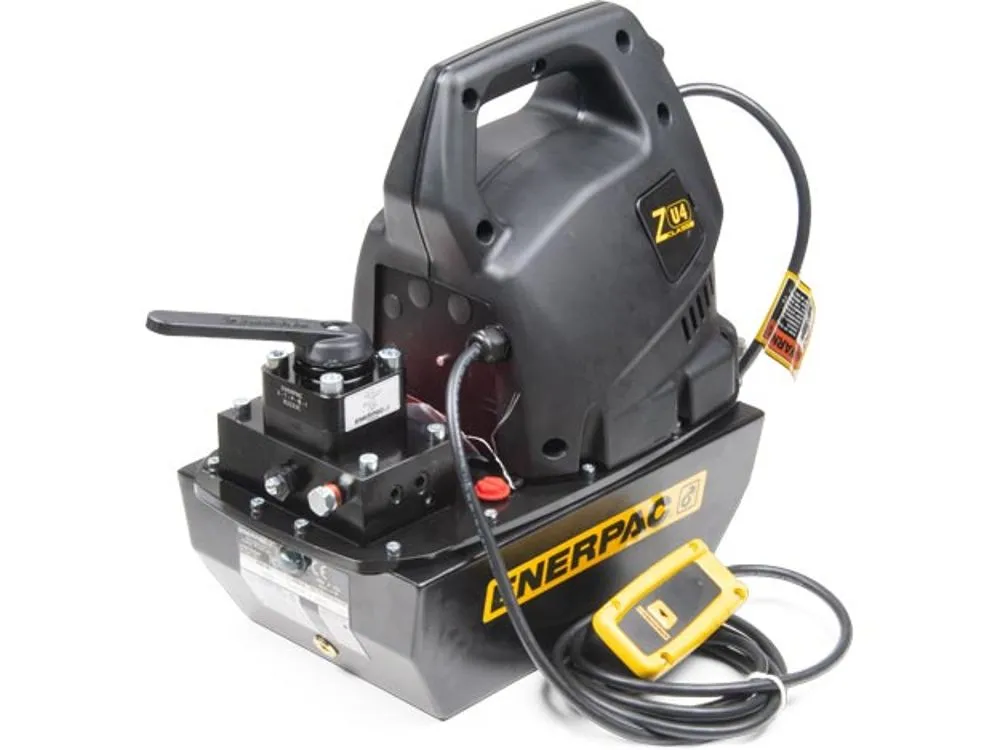

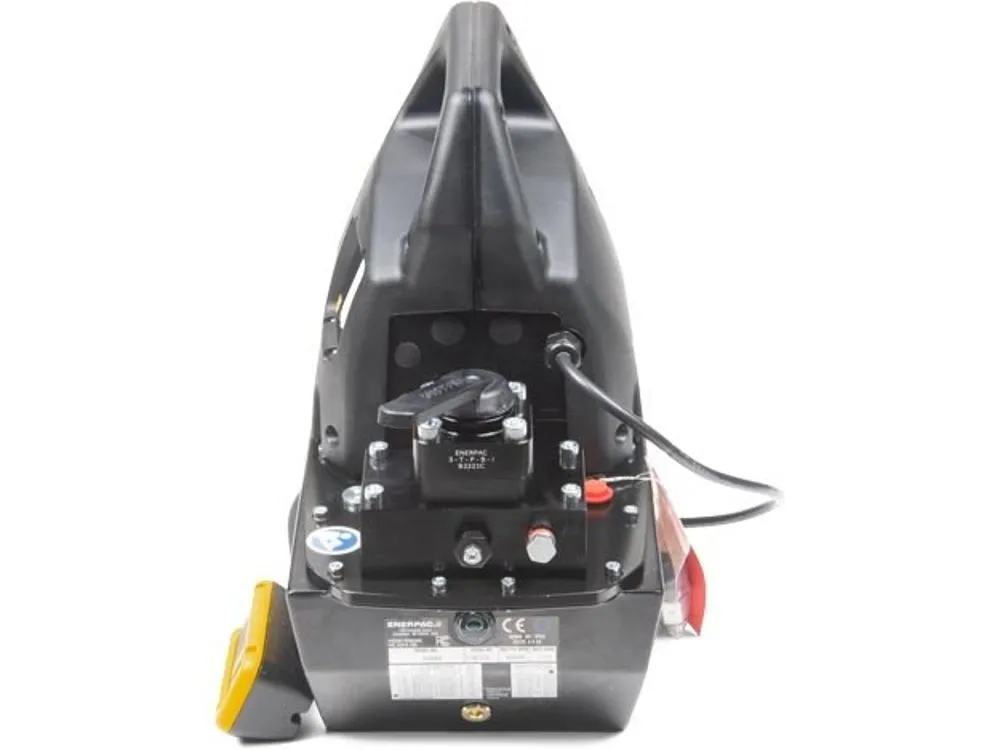

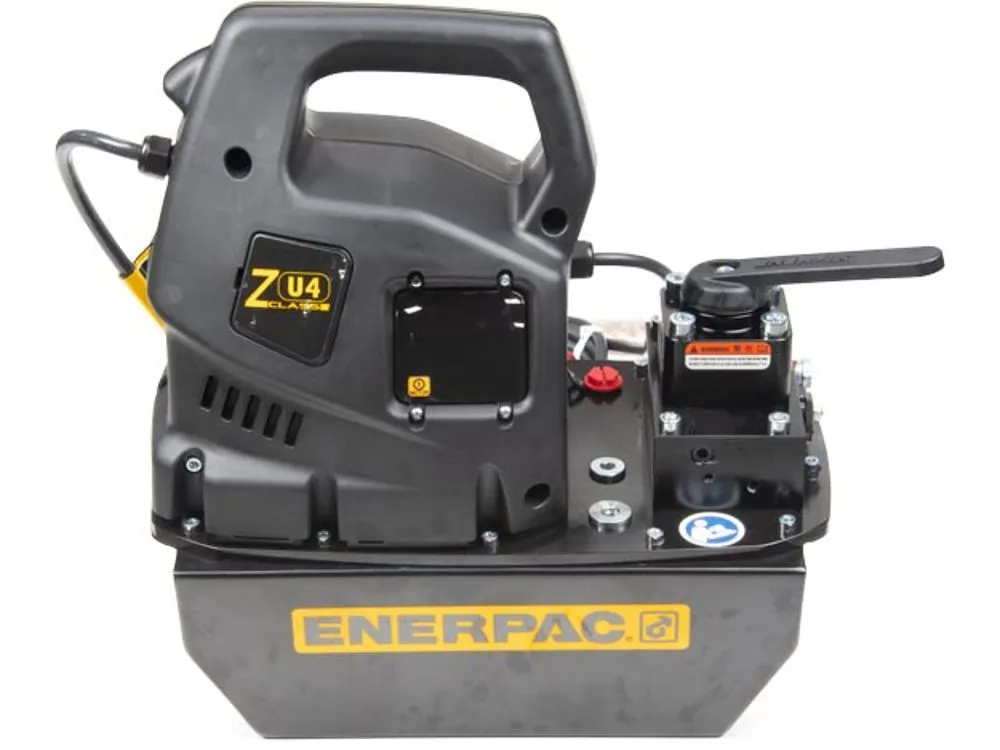

Item | Hydraulic Electric Pump |
Cylinder Compatibility | Single Acting |
Dimension A | 16.7" |
Dimension B | 5.6" |
Dimension C | 11" |
Dimension D | 8.1" |
Duty Cycle | Intermittent |
Frequency | 50/ 60 Hz |
Max. Flow at Rated Pressure | 60 cu. in./min. |
Max. Operating Pressure | 10000 psi |
Motor HP | 1.7 hp |
Output Flow Rate @ 100 psi | 700 cu. in./min. |
Output Flow Rate @ 10000 psi | 60 cu. in./min. |
Output Flow Rate @ 5000 psi | 76 cu. in./min. |
Output Flow Rate @ 700 psi | 535 cu. in./min. |
Phase | 1 |
Power Source | Electric |
Pump Control | Pendant |
Relief Valve Range | 2000 to 10000 psi |
Reservoir Capacity | 416 cu. in. |
Sound Level | 85 to 90 dBA |
Usable Oil Capacity | 2 gal. |
Valve Function | Advance/ Hold/ Retract |
Valve Operation | Manual |
Valve Type | 3-Way, 3-Position, Tandem Center |
Voltage | 115V |
Ship weight (kg) | 37.63 |
Ship height (cm) | 51.18 |
Ship length (cm) | 49.53 |
Ship width (cm) | 30.58 |
HS code | 8413500050 |
Model | Valve Function | Cylinder Compatibility | Dimension A | Valve Operation | Valve Type | Dimension B | Dimension C | Dimension D | Price | |
---|---|---|---|---|---|---|---|---|---|---|
ZU4308MB | Advance/ Hold/ Retract | Single Acting | 16.7" | Manual | 3-Way, 3-Position, Tandem Center | 5.6" | 11" | 8.1" | £9,936.30 | |
ZU4308LB | Advance/ Hold/ Retract | Single Acting | 16.7" | Manual | 3-Way, 3-Position, Tandem Center | 5.6" | 11" | 8.1" | £7,815.26 | |
ZU4104DB | Advance/ Retract | Single Acting | 16.7" | Solenoid | 3-Way, 2-Position | 5.6" | 11" | 6" | £12,863.88 | |
ZU4108DB | Advance/ Retract | Single Acting | 16.7" | Solenoid | 3-Way, 2-Position | 5.6" | 11" | 8.1" | £12,949.36 | |
ZU4120DB | Advance/ Retract | Single Acting | 18.3" | Solenoid | 3-Way, 2-Position | 7.1" | 16.5" | 16.6" | £14,461.79 | |
ZU4204JB | Advance/ Retract | Single Acting | 16.7" | Manual | 3-Way, 2-Position | 5.6" | 11" | 6" | £9,809.81 | |
ZU4204KB | Advance/ Retract | Single Acting | 16.7" | Manual | 3-Way, 2-Position | 5.6" | 11" | 6" | £8,072.18 |
