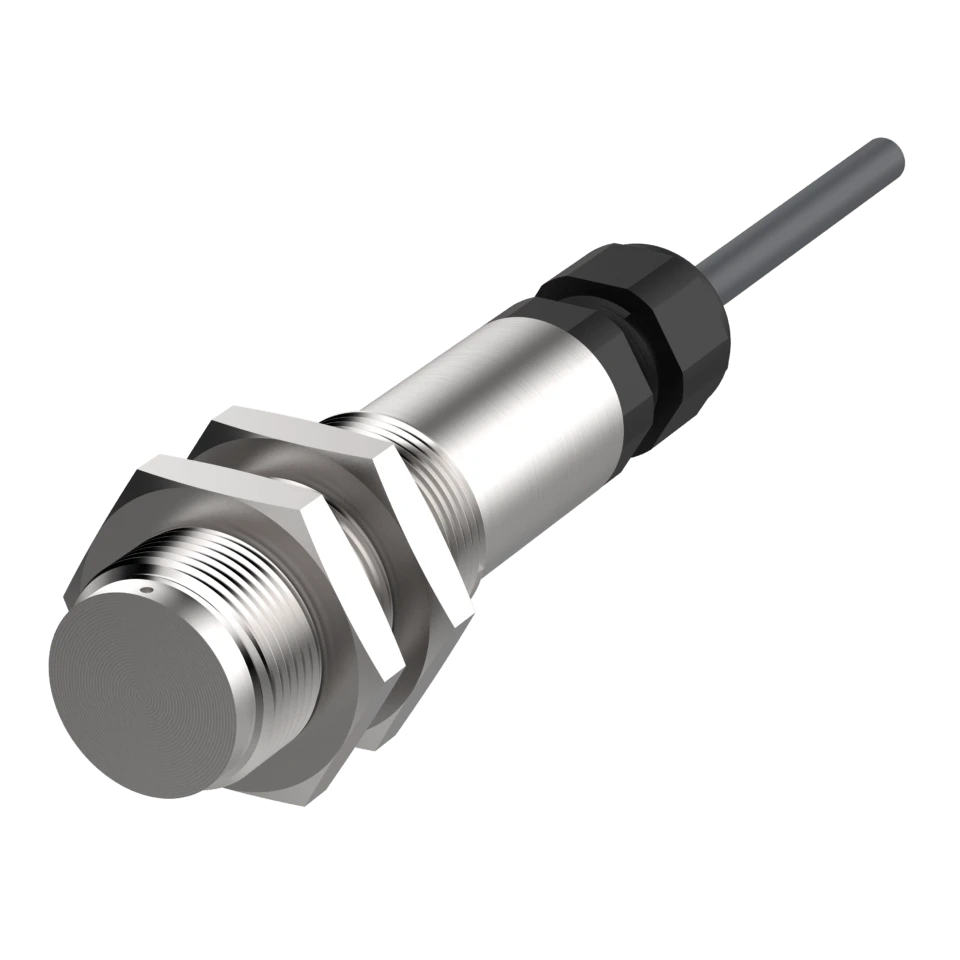

ELOBAU 120V62VY01 Safety Sensor, Magnetically Actuated, N.O/N.C., Built In Connector, M12 Size
Item: CL7MVK
Model: 120V62VY01
In Stock
Get it by Friday, Apr 17
£285.89/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuation Type | Front |
|---|---|
| Assured Switch Off Distance | 18 mm |
| Assured Switching Distance | 4 mm |
| Cannot Be Mounted Flush | Yes |
| Communication Method | Hard Wired |
| Connector Size | M12 x 1 |
| Connector Type | 4 Pin |
| Degree Of Pollution | 3 |
| Detent Present | No |
| Housing Color | Silver |
| Housing Design | Cylindrical |
| Housing Material | Stainless Steel |
| Ip Rating | IP69K |
| Led Display | No |
| Max. Operating Temp. | 75°C |
| Max. Storage Temp. | 75°C |
| Max. Switching Current | 0.1A |
| Max. Switching Power | 3 W |
| Max. Switching Voltage | 28.8V DC |
| Min. Operating Temp. | -25°C |
|---|---|
| Min. Storage Temp. | -25°C |
| Min. Switching Distance | 0.5 mm |
| Min. Switching Voltage | 19.2V DC |
| Mounting Type | Fastening Nut |
| Nut Material | Stainless Steel |
| Operating Voltage | 19.2-28.8V DC |
| Protection Class | Class III |
| Sensing Technology | Reed |
| Series Resistor | 22 ohms |
| Shock Resistance | 30g, 11 ms |
| Standard Logo | din.jpg,en.png |
| Structure | Two Channel |
| Switching Frequency | 5 Hz |
| Switching Principle | Magnetic |
| Technology | Reed |
| Thread Size | M18 x 55 |
| Vibration Resistance | 10-55 Hz |
Product Details
Shipping Information
| Height | 1.19 |
|---|---|
| Length | 5.51 |
| Width | 1.19 |
| Country Of Origin | DE |
|---|---|
| Weight | 0.063000 |
