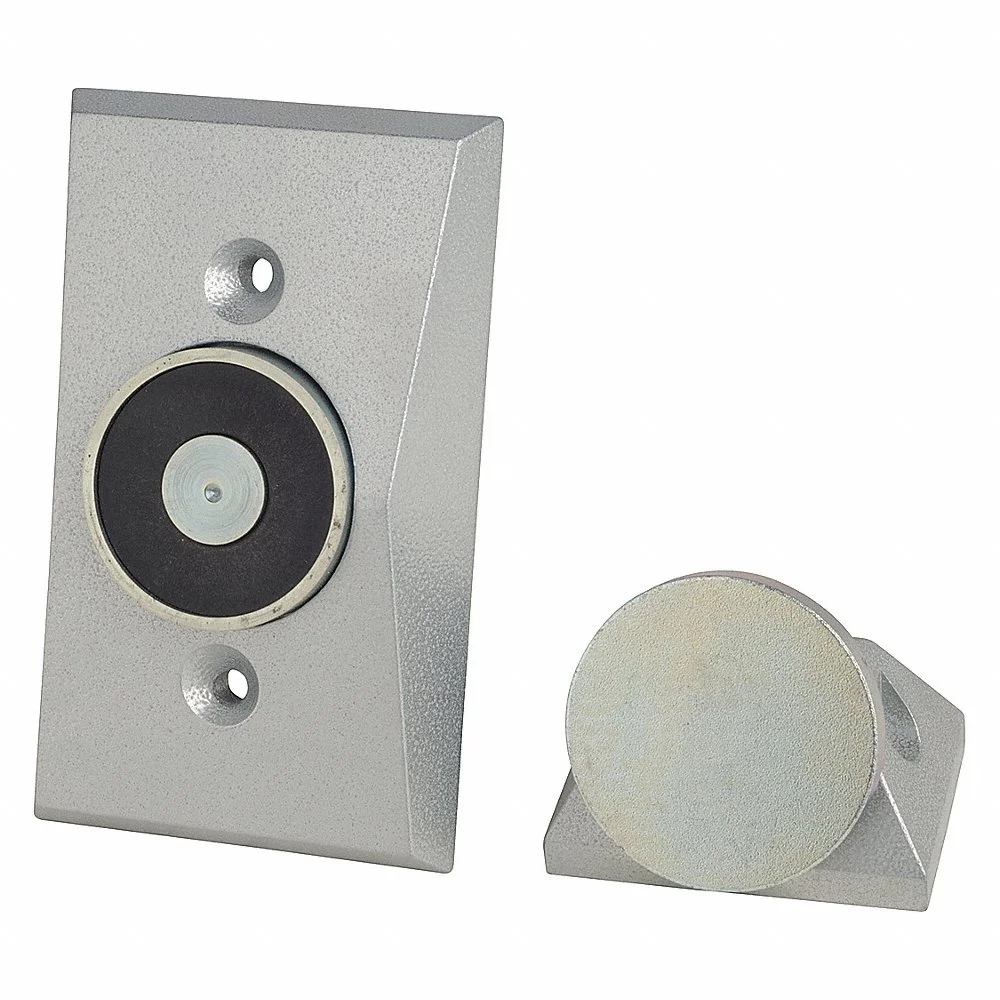

EDWARDS SIGNALING 1505-AQN5 Door Holder, Wall Mount, 24/120V, 0.015A Rating
Item: AC6MDB
Model: 1505-AQN5
12 In Stock
Ships within 2 days via
5.00% off
£163.67/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Door Holder |
|---|---|
| Amp Draw @ 24v | 0.015A |
| Depth | 1 5/8" |
| Failure Mode | Fail Safe |
| Finish | Aluminum Painted |
| Holding Force | 25 lbs. to 50 lbs. |
| Lock Body Depth | 13/16" |
| Lock Body Length | 4 5/8" |
| Lock Body Width | 2 3/4" |
| Material | Die Cast Metal |
| Maximum Holding Force | 25 lbs. |
| Mounting Location | Wall |
| Mounting Style | Magnetic |
| Overall Projection | 2 7/16" |
| Plate Length | 2" |
|---|---|
| Plate Width | 2" |
| Power Required | 0.15A @ 120 V AC, 0.15A @ 24 V AC/DC |
| Power Source | _Ac Power, Dc Power |
| Product Datasheet | edwards-signaling-1509-aqn5.pdf |
| Projection From Wall | 0.812" |
| Series | 1505 |
| Standard Logo | ul.png,fm.png |
| Strike Base Height | 2" |
| Strike Base Width | 2" |
| Strike Projection | 1 5/8" |
| Type | Flush Mount |
| Voltage | 120V AC/24V AC/DC |
| standard | CSFM LISTED, FM APPROVED, UL LISTED |
Product Details
Shipping Information
| Height | 8.13 |
|---|---|
| Length | 20.07 |
| Width | 13.72 |
| HS Code | 8302419045 |
|---|---|
| Country Of Origin | US |
| Weight | 0.967500 |
Related Products
| Style | Model | Finish | Type | Material | Amp Draw @ 24v | Lock Body Width | Lock Body Length | Lock Body Depth | Projection From Wall | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1501-AQN5 | Aluminum Painted | Floor Mount, Single Door | Die Cast Metal | 0.015V AC/DC | 4 5/8" | 4.812" | 3 1/4" | - | 189.33 | |
| B | 1502-AQN5 | Aluminum Painted | Floor Mount, Double Door | Die Cast Metal | 0.015V AC/DC | 4 5/8" | 4 7/8" | - | - | 279.05 | |
| C | 1504-AQN5 | Aluminum Painted | Wall Mount, Recessed | Die Cast Metal | 0.015V AC/DC | 2 3/4" | 4 5/8" | 13/16" | 0.812" | 143.57 | |
| D | 1508-AQN5 | Aluminum Painted | Wall Mount, Surface | Die Cast Metal | 0.015V AC/DC | 2 3/4" | 4 5/8" | 2 7/16" | 2.438" | 147.62 | |
| E | 1509-AQN5 | Powder Epoxy | Wall Mount | Aluminum | 0.015A | 2 3/4" | 4 5/8" | 13/16" | 0.812" | 151.55 |
