EDWARDS SIGNALING

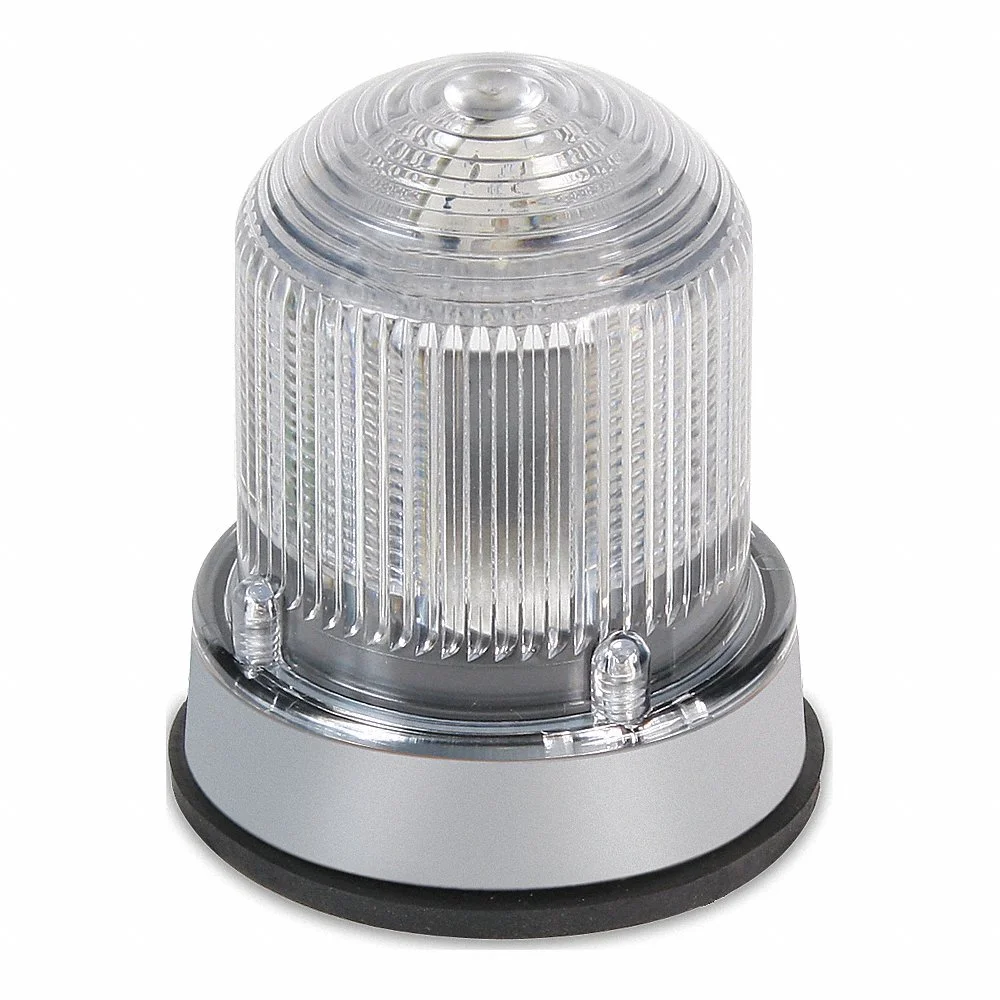

EDWARDS SIGNALING 125XBRIRGA24D Warning Light, Amber/Green/Red, LED, 24 VDC, 148,000 hr Lamp Life, 3 7/8 Inch Height

Item: AA7PTH

Model: 125XBRIRGA24D

26 In Stock

Ships within 2 days via

~~£680.51~~

5.00% off

£646.48/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Amps Drawn	0.15A
Audible Alarm Type	Visual
Color	Amber, Green, Red
Connection Type	Wire Leads
Control Protocol	Direct Wire
Depth	3 1/4"
Dia.	3 1/4"
Diameter	3 1/4"
Features	Multi-Candela Strobe
Flashes Per Minute	65/120/240 FPM
Footprint Diameter	3 1/4"
For Location	Indoor/Outdoor
For Use With	Signaling
Height	3 7/8"
Housing Color	Gray
Housing Material	33% Glass Filled Nylon
Includes	Buna-N 70 Gasket
Includes Mounting Hardware	No Mounting Hardware
Lamp Color	Amber, Green, Red
Lamp Life	148000 hrs.
Lens Color	Clear
Lens Design	Integral Screw Mount
Lens Material	Polycarbonate
Lifespan	148000 hrs.

Light Operating Mode	Flashing
Light Source	LED
Mounting Location	Conduit Mount, Panel Mount
Mounting Mechanism	1/2" FNPT, 3/4" MNPT
Mounting Style	Surface Mount
Mounting Thread Size	1/2" Internal NPT, 3/4" External NPT
Mounting Type	Conduit, Panel
Nema Rating	NEMA 4X
Operating Current	0.15A
Operating Temp.	-31°F to +150°F
Operating Temperature - Maximum	150°F
Operating Temperature - Minimum	-31°F
Operating Voltage	24V DC
Overall Diameter	3 1/4"
Overall Height	3 7/8"
Power Source	Wire
Product Datasheet	edwards-signaling-125xbrirba120ab.pdf
Product Type	Indicator Light
Requires Base	Base Not Required
Standard Logo	ul.png
Standards	Cul Listed, Ul Listed
Voltage	24V DC
Width	3 1/4"

Product Details

Shipping Information

Height	13.34
Length	8.89
Width	10.16

HS Code	8531800050
Country Of Origin	US
Weight	0.315000

Related Products

Style	Model	Voltage	Amps Drawn	Housing Color	Height	Flashes Per Minute	Light Source	Lens Color	Diameter	Price (ex. VAT)
A	125XBRiRGA120AB	120V AC	0.1A	Black	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	622.83
A	125XBRiRGA24DB	24V DC	0.15A	Black	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	675.46
A	125XBRIRGA120A	120V AC	0.1A	Gray	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	700.68
B	125XBRIRBA120AB	120V AC	0.1A	-	3 7/8"	65/120/240 FPM	-	-	-	592.00
B	125XBRIRBA120A	120V AC	0.15A	Gray	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	610.50
B	125XBRIRBA24D	24V DC	0.1A	Gray	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	524.17
B	125XBRIRBA24DB	24V DC	0.15A	Black	3 7/8"	65/120/240 FPM	LED	Clear	3 1/4"	582.92
