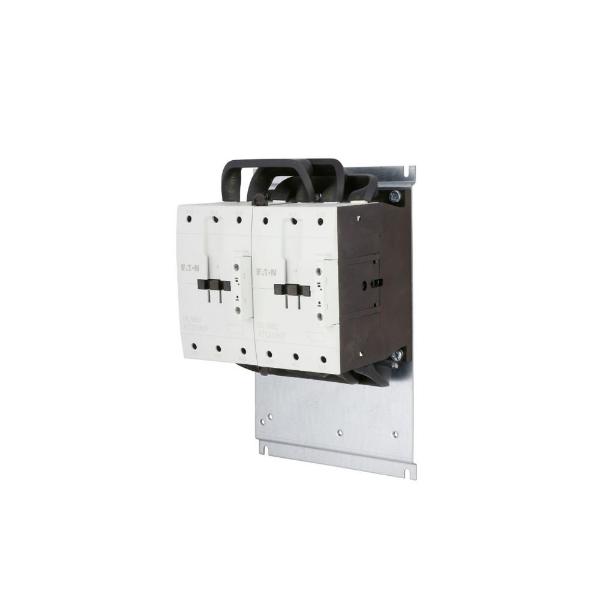

EATON XTCR080F11Y Iec Contactor, Full Voltage, Reversing, 48 VAC V Coil, 80A, 3P
Item: BH8ZHF
Model: XTCR080F11Y
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 80A |
|---|---|
| Coil Voltage | 48V AC |
| Contact Configuration | 1 NC, 1 NO |
| Continuous Amps Rating | 80A |
| Frame Size | 90 mm |
| Frequency | 50 Hz |
| Frequency Rating | 50 Hz |
| Height | 6.142" |
| Length | 5.079" |
| Max. Hp Rating | 7 1/2, 15/ 25, 30, 60, 75 hp (1/3 Phase @ 115, 230/200, 230, 460, 575V) |
| Mfr. Series | XT IEC Series |
|---|---|
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 3 |
| Operation | Reversing |
| Product Name | Eaton XT IEC contactor |
| Standard Logo | csa.png,iec.png,en.png,ul.png |
| Terminals | Screw Terminals |
| Type | Full Voltage Reversing Contactor |
| Warranty | 1 yr. |
| Width | 6.535" |
Product Details
Contactor
Shipping Information
| height | 15.6 |
|---|---|
| length | 12.9 |
| width | 16.6 |
| country of origin | US |
|---|---|
| weight | 4.410000 |
