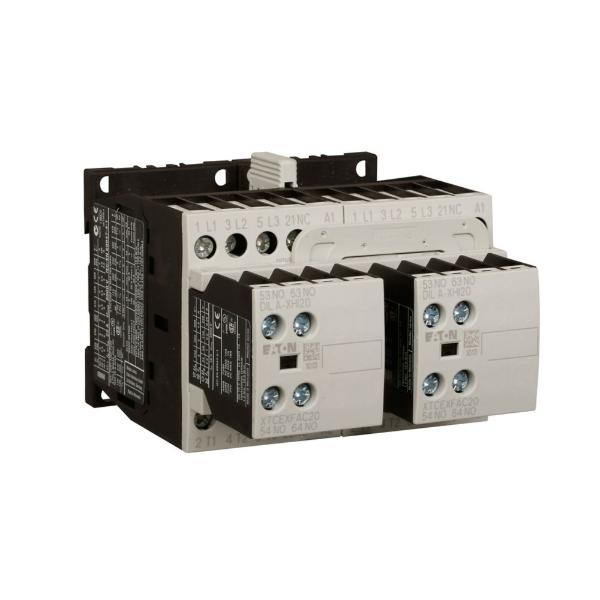

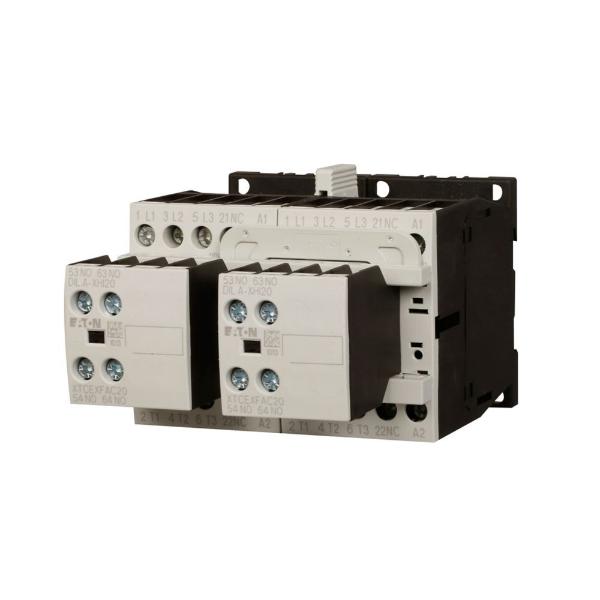

EATON XTCR018C21TD IEC Magnetic Contactor, Reversing, 3 Poles, 18 A, 24 VDC Coil, 2NO/2NC, C Frame Size
Item: BH8ZBF
Model: XTCR018C21TD
29 In Stock
Ships within 2 days via
5.00% off
£1132.54/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 18A |
|---|---|
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 24V DC |
| Contact Configuration | 2 NO, 2 NO |
| Contactor Style | IEC |
| Continuous Amps Rating | 18A |
| Frame Size | C |
| Frequency | 50/60 Hz |
| Full Load Current - Inductive | 18A |
| Full Load Current - Resistive | 40A |
| Height | 4 1/2" |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 5 hp |
| Horsepower @ Three Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 15 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Length | 4 3/4" |
| Main Power Pole Contact Form | 3NO |
| Max. Hp Rating | 2, 3/ 5, 5, 10, 15 hp (1/3 Phase @ 115, 230/200, 230, 460, 575V) |
|---|---|
| Maximum Operating Temperature | 122°F |
| Mfr. Series | XT IEC Series |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 3 |
| Operation | Reversing |
| Overall Depth | 4.75" |
| Overall Height | 4 1/2" |
| Overall Width | 7 1/2" |
| Product Name | Eaton XT IEC contactor |
| Reversing Capability | Reversing |
| Series | Xt Series Series |
| Standard Logo | csa.png,iec.png,en.png,ul.png |
| Terminals | Screw Terminals |
| Type | Full Voltage Reversing Contactor |
| Warranty | 1 yr. |
| Width | 7 1/2" |
| Wire Termination Type | Screw |
| standard | CE, CSA, EN 60947, IEC 60947, ROHS, UL LISTED |
Product Details
Contactor
Shipping Information
| height | 11.43 |
|---|---|
| length | 12.06 |
| width | 19.05 |
| country of origin | US |
|---|---|
| weight | 1.102500 |
