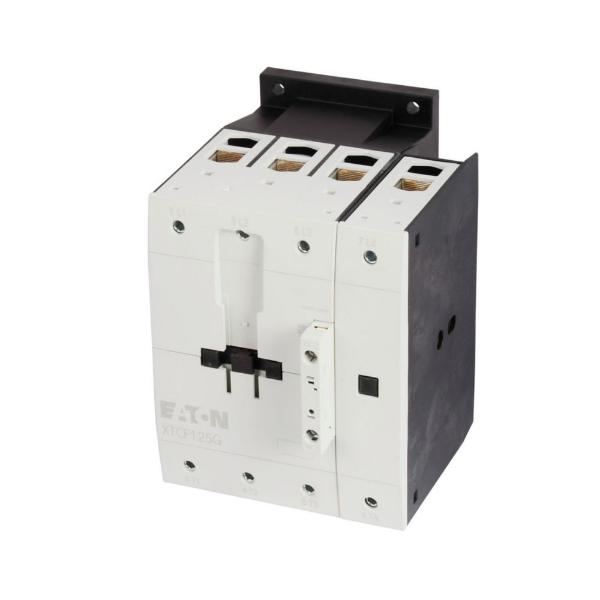

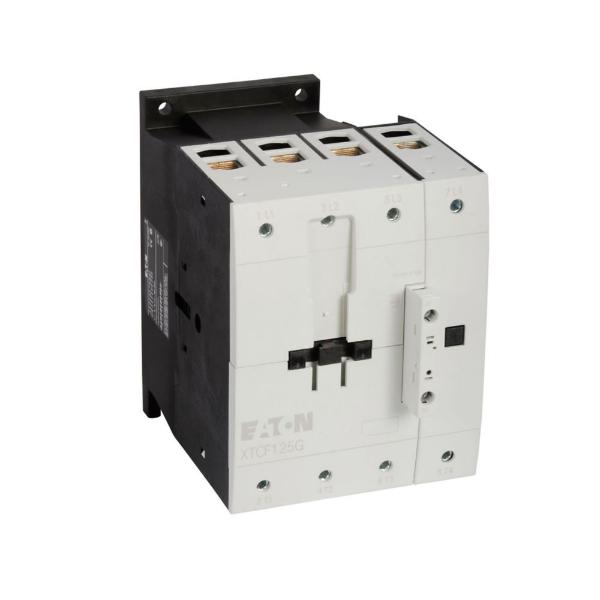

EATON XTCF125G00TD IEC Magnetic Contactor, Non-Reversing, 4 Poles, 80 A, 24 VDC Coil, G Frame Size
Item: BH8YWP
Model: XTCF125G00TD
11 In Stock
Ships within 2 days via
5.00% off
£1588.38/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 125A |
|---|---|
| Auxiliary Contacts Included | None |
| Coil Voltage | 24-27V DC |
| Contact Configuration | 0 NO, 0 NC |
| Contactor Style | IEC |
| Continuous Amps Rating | 125A |
| Frame Size | G |
| Full Load Current - Inductive | 80A |
| Full Load Current - Resistive | 125A |
| Height | 6.693" |
| Horsepower @ Single Phase - 240v Ac | 25 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase - 480v Ac | 60 hp |
| Horsepower @ Three Phase - 600v Ac | 75 hp |
| Includes Auxiliary Contacts | No |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Length | 6.89" |
| Main Power Pole Contact Form | 4NO |
| Max. Hp Rating | 25, 30, 60, 75 hp (3 Phase @ 200, 230, 460, 575V) |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
|---|---|
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | XT IEC Series |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 4 |
| Operation | Non-Reversing |
| Overall Depth | 6.89" |
| Overall Height | 6.69" |
| Overall Width | 5.24" |
| Phase | Three |
| Product Name | Eaton XT IEC contactor |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Standard Logo | csa.png,iec.png,en.png,ul.png |
| Terminals | Screw Terminals |
| Type | Full Voltage Non-reversing Contactor |
| Width | 5.236" |
| Wire Termination Type | Screw |
| standard | CE, CSA, EN 60947, IEC 60947, ROHS, UL LISTED |
Product Details
IEC Magnetic Contactor
Shipping Information
| height | 17 |
|---|---|
| length | 17.5 |
| width | 13.3 |
| country of origin | US |
|---|---|
| weight | 0.277800 |
