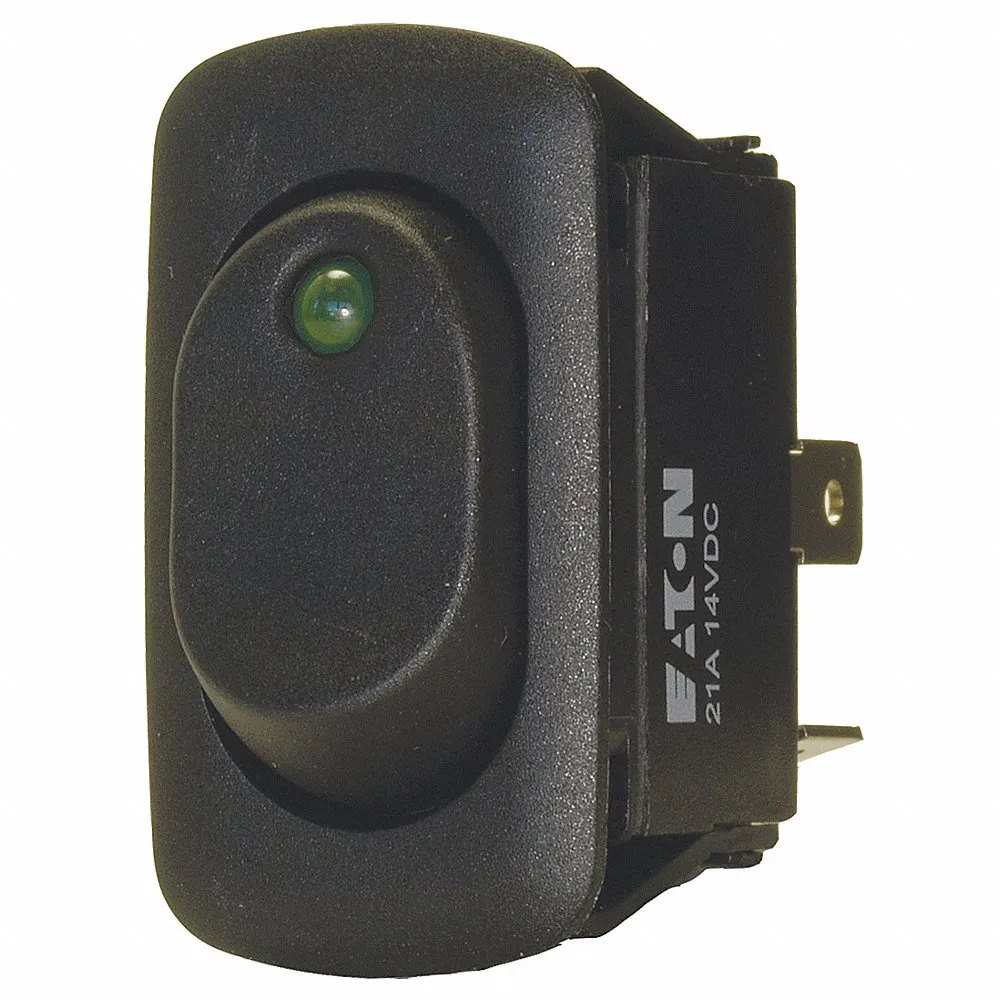

EATON XR3AEX3NV1XX Lighted Rocker Switch, Lighted Rocker Switch, SPST, Off/On, 3 Connections
Item: BH8ANY
Model: XR3AEX3NV1XX
24 In Stock
Ships within 2 days via
5.00% off
£11.02/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 10A @ 277V, 16A @ 125V |
|---|---|
| Contact Form | SPST |
| Features | Nylon Material Frames, Nylon With Glass Fiber Actuators, Plastic Bezel, Silver Plated Brass Terminals |
| Horsepower | 3/4 hp @ 277V |
| Includes Lens | Lens Included |
| Ip Rating | IP56 |
| Lamp Bulb Type | LED |
| Lamp Voltage - Maximum | 125V |
| Lens Color | Amber |
| Mounting Hole Length | 1.46" |
| Mounting Hole Width | 0.83" |
| Number Of Connections | 3 |
| Number Of Positions | 2 |
|---|---|
| Operating Temperature - Maximum | 176°F |
| Operating Temperature - Minimum | -4°F |
| Operator Illumination | Illuminated |
| Overall Depth | 1.87" |
| Overall Height | 1.81" |
| Overall Width | 0.98" |
| Product Type | Rocker Switch |
| Series | X Series |
| Switch Action | Off/On |
| Terminal Connection Type | 0.25" Quick Connect Tab |
| standard | CRUUS, ROHS, UL E2702 |
Product Details
Lighted Rocker Switch
Shipping Information
| height | 2.82 |
|---|---|
| length | 3 |
| width | 2.49 |
| country of origin | CN |
|---|---|
| weight | 0.022500 |
Related Products
| Style | Model | Number Of Connections | Contact Form | Mounting Hole | Ac Contact Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|
| A | XR1AEX2NV1XX | 3 | SPST | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | 9.72 | |
| B | XR1AEX4NV1XX | 3 | - | 0.83" x 1.46" | - | 9.36 | |
| C | XR1BG44NV1XX | 6 | SPDT | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | 12.13 | |
| D | XR1EG33NV1XX | 6 | SPDT | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | - |
RFQ
|
| C | XR1CG44NV1XX | 6 | SPDT | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | 12.13 | |
| D | XR1CG33NV1XX | 6 | SPDT | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | 12.02 | |
| C | XR1EG44NV1XX | 6 | SPDT | 0.83" x 1.46" | 10A @ 277V, 16A @ 125V | 12.13 |
