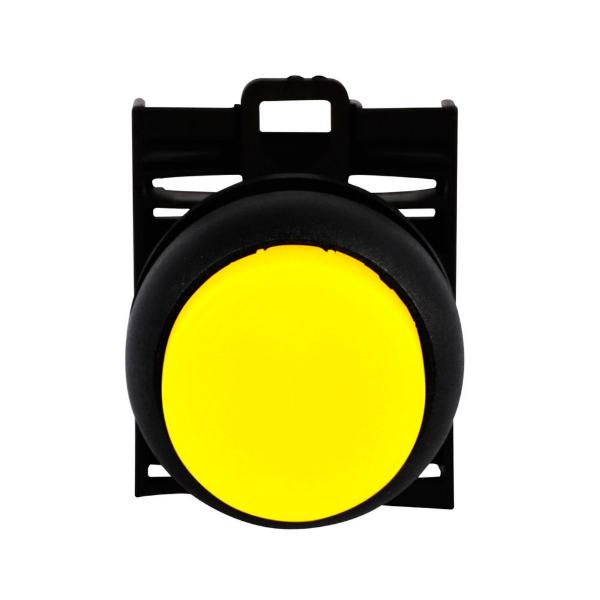

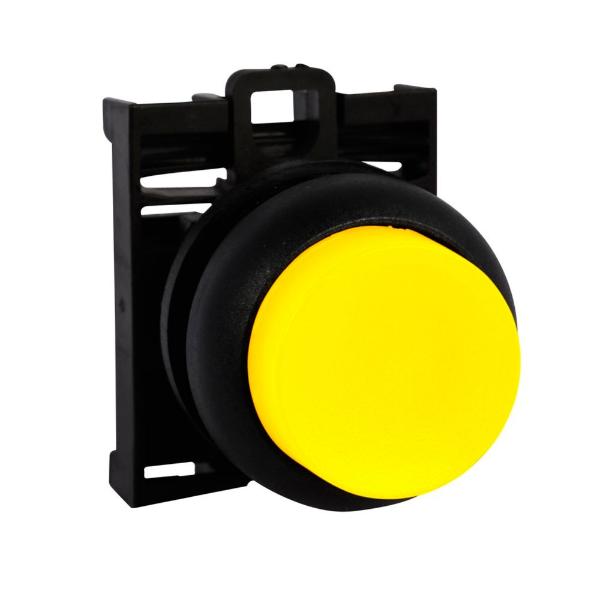

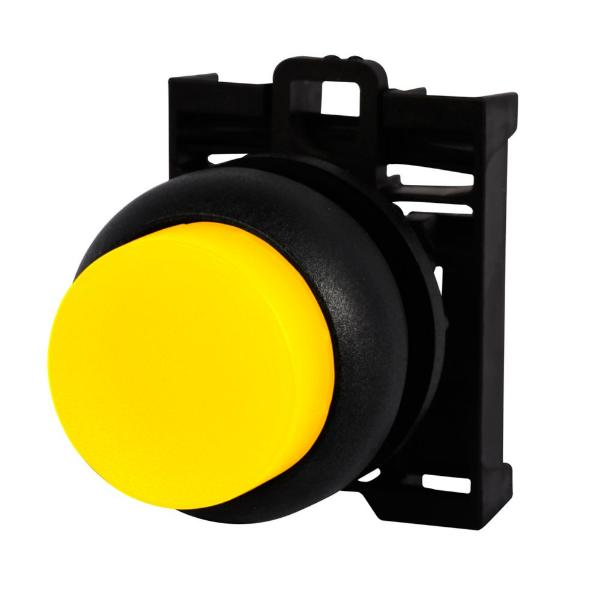

EATON M22S-DRLH-Y Modular Pushbutton, 22.5 mm, Maintained, Illuminated, Black Bezel, Yellow, Ip67, Ip69K
Item: BH4UBJ
Model: M22S-DRLH-Y
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Function | Maintained |
|---|---|
| Actuator Type | Extended, Button |
| Application | Pushbutton |
| Bezel Color | Black |
| Button Color | Yellow |
| Features | M22 Series |
| Height | 0.65" |
| Illumination | Illuminated |
| Ip Rating | IP67, IP69K |
|---|---|
| Length | 1.17" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Operating Cycles | 1 Million |
| Type | 22.5 mm Modular |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Product Details
Shipping Information
| Height | 1.65 |
|---|---|
| Length | 2.97 |
| Width | 2.97 |
| Country Of Origin | US |
|---|---|
| Weight | 0.447800 |
