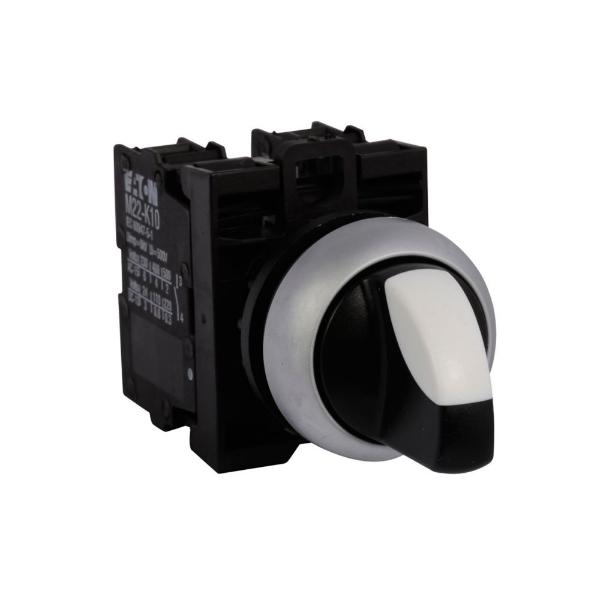

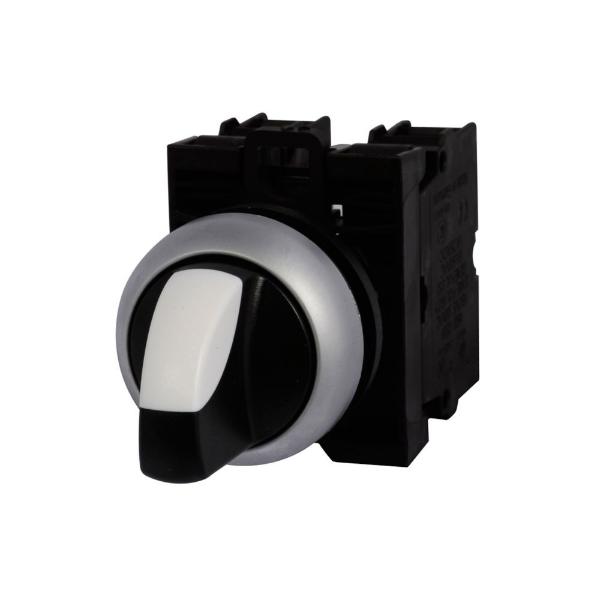

EATON M22-WRK3-K22 Modular Pushbutton, 3-Position, Non-Illuminated, Silver Bezel, Black, 2No-2Nc, Ip67, Ip69K
Item: BH4UUJ
Model: M22-WRK3-K22
10 In Stock
Ships within 2 days via
5.00% off
£134.99/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 6A @ 230V |
|---|---|
| Action | Maintained/Maintained/Maintained |
| Actuator Function | Maintained |
| Actuator Type | Knob |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Black |
| Cam | No Cam Required |
| Contact Block Material | Plastic |
| Contact Configuration | 2 NO, 2 NC |
| Contact Form | 2NO/2NC |
| Dc Contact Rating | 3A @ 24V |
| Hazardous Location Specification | Not Rated |
| Height | 0.1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 1/2" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Positively Driven Contact Blocks. |
| Number Of Positions | 3 |
|---|---|
| Operator Head Color | Black |
| Operator Head Material | Plastic |
| Operator Illumination | Non Illuminated |
| Overall Depth | 2.76" |
| Overall Height | 1" |
| Overall Width | 2" |
| Panel Mounting Hole Diameter | 22 mm |
| Series | M22 Series |
| Standard Logo | gost.png,ce.png |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | Off |
| Switch Function @ 3rd Position | On |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Type | Selector Switch |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1/2" |
| standard | BV, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Pushbutton
Shipping Information
| height | 0.25 |
|---|---|
| length | 1.27 |
| width | 1.27 |
| country of origin | US |
|---|---|
| weight | 0.038300 |
