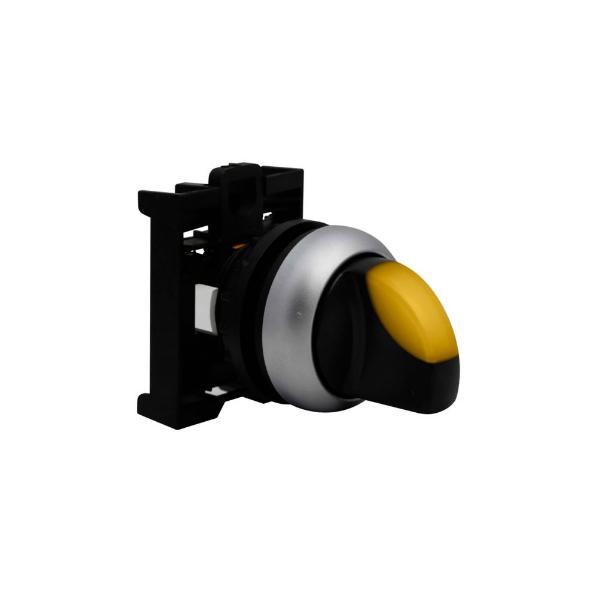

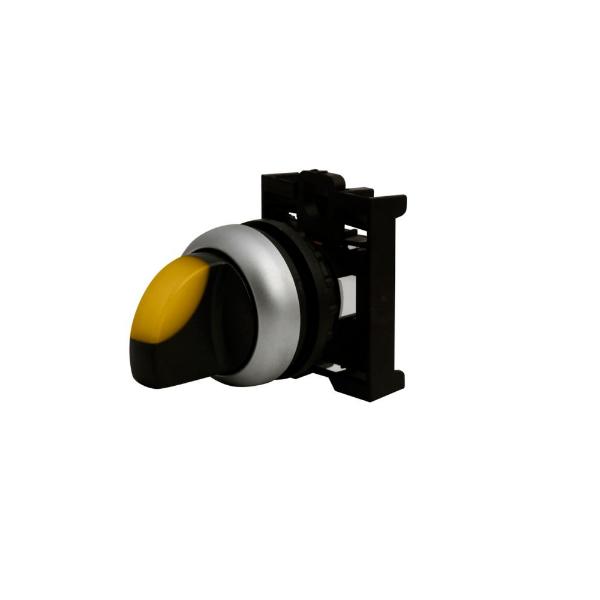

EATON M22-WLKV-Y Modular Pushbutton, 22.5 mm, Illuminated, Silver Bezel, Yellow Button, Ip66
Item: BH4UTG
Model: M22-WLKV-Y
13 In Stock
Ships within 2 days via
5.00% off
£62.03/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action | Momentary/Maintained |
|---|---|
| Actuator Function | Momentary |
| Actuator Type | Knob |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Yellow |
| Cam | No Cam Needed |
| Hazardous Location Specification | Not Rated |
| Height | 1.06" |
| Illumination | Illuminated |
| Ip Rating | IP66, IP67, IP69K |
| Length | 1.17" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. Can Be Converted In The Field To Maintained Operation With The Removal Of A Color Coded Adapter. |
| Number Of Positions | 2 |
| Operating Cycles | Light: 100,000, Button: 100,000 |
| Operator Head Material | Polycarbonate |
| Operator Illumination | Non Illuminated |
|---|---|
| Overall Depth | 2.78" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Series | M22 Series |
| Standard Logo | ccc.png,csa.png |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Color | Black |
| Switch Head Type | Short Lever |
| Type | Selector Switch |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Product Details
Pushbutton
Shipping Information
| height | 2.69 |
|---|---|
| length | 2.97 |
| width | 2.97 |
| country of origin | US |
|---|---|
| weight | 0.022500 |
