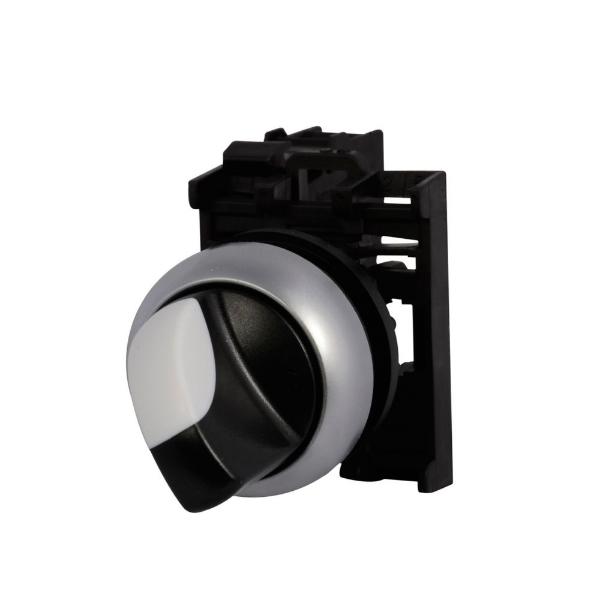

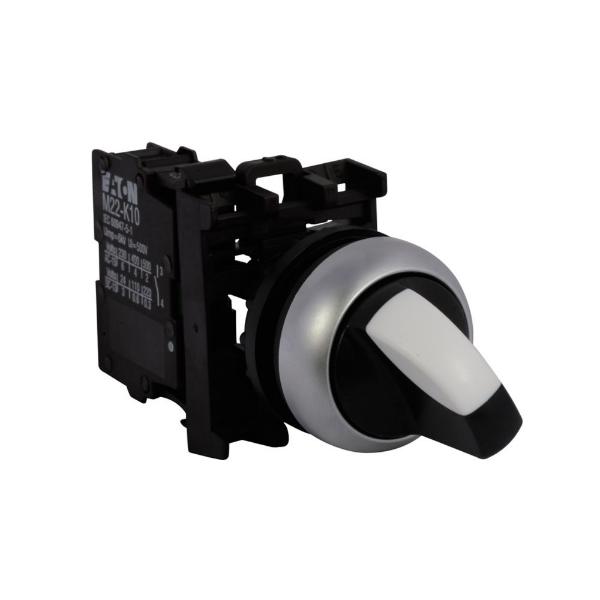

EATON M22-WKV-K11-P Modular Pushbutton, 22.5 mm, Knob, 1No-1Nc, Non-Illuminated, Maintained, Silver Bezel
Item: BH4UTB
Model: M22-WKV-K11-P
21 In Stock
Ships within 2 days via
5.00% off
£93.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 6A @ 230V |
|---|---|
| Action | Maintained/Maintained |
| Actuator Color | Black |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Cam | No Cam Required |
| Contact Block Material | Plastic |
| Contact Configuration | 1 NC, 1 NO |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 3A @ 24V |
| Hazardous Location Specification | Not Rated |
| Height | 1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 5" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 4X, NEMA 13 |
| Number Of Positions | 2 |
| Operating Mode | Maintained |
| Operator Head Color | Black |
|---|---|
| Operator Head Material | Plastic |
| Operator Illumination | Non Illuminated |
| Options | Point-of-purchase Unit |
| Overall Depth | 2.76" |
| Overall Height | 1" |
| Overall Width | 2" |
| Panel Mounting Hole Diameter | 22 mm |
| Series | M22 Series |
| Standard Logo | gost.png,ce.png |
| Switch Function @ 1st Position | On |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Type | Knob |
| Warranty | 1 yr. |
| Width | 4" |
| standard | BV, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Pushbutton
Shipping Information
| height | 2.54 |
|---|---|
| length | 12.7 |
| width | 10.16 |
| country of origin | US |
|---|---|
| weight | 0.067500 |
