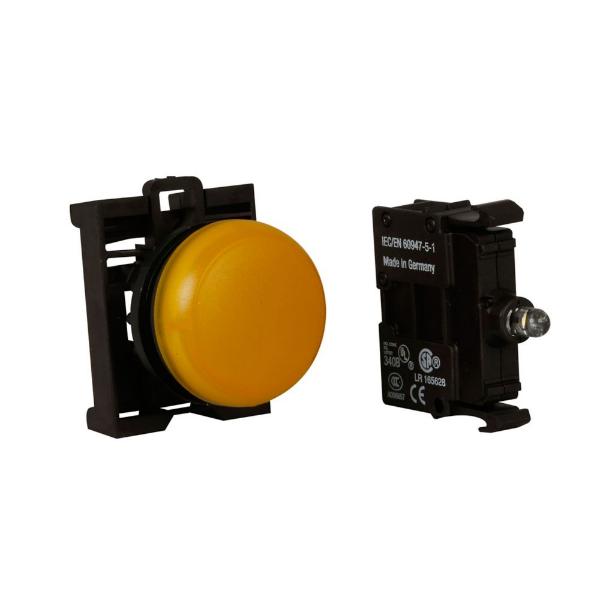

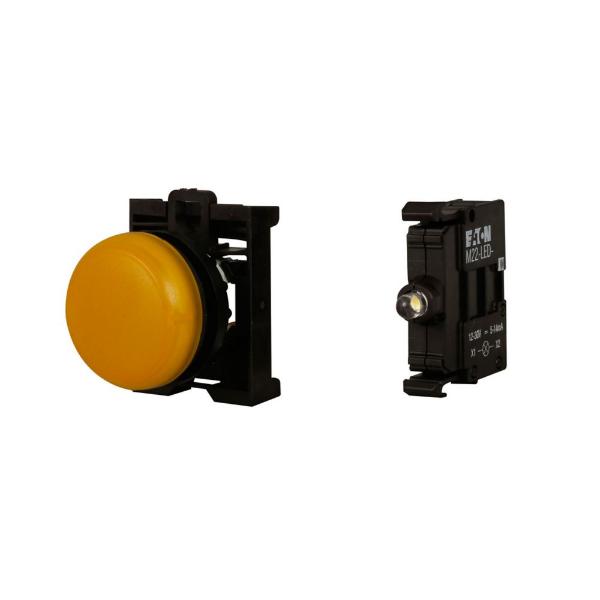

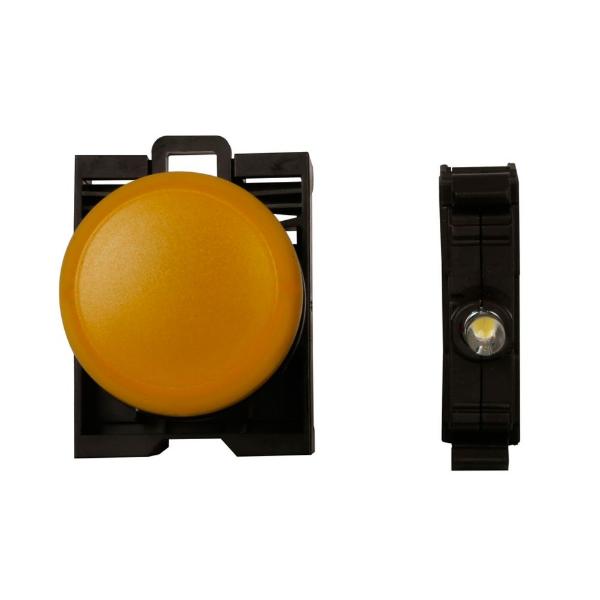

EATON M22-L-Y-230W Modular Pushbutton, Flush Actuator, Ip67, Ip69K, Illuminated, Yellow, White, 85-264 Vac/Dc

Item: BH4RVK
Model: M22-L-Y-230W
17 In Stock

Ships within 2 days via

£104.84
5.00% off
£99.6/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Action Momentary
Actuator Type Flush
Display Qty 1
Head/lens Color Yellow
Height 1"
Illumination Illuminated
Ip Rating IP67, IP69K
Lamp Bulb Type LED
Lamp Voltage - Maximum 264V AC
Length 2"
Lens Color Yellow
Light Color White
Number Of Operators 1
Operating Cycles 10000 Hours Of Operation
Operator Illumination Illuminated
Overall Height 1"
Panel Mounting Hole Diameter 22 mm
Product Type Push Button Operators
Push Button Style Flush
Series M22 Series
Standard Logo ccc.png,csa.png
Type Complete Indicating Light
Voltage Rating 85-264V AC/DC
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 2"

Product Details

Pushbutton

Shipping Information

height 2.54
length 5.08
width 5.08
country of origin US
weight 0.045000
