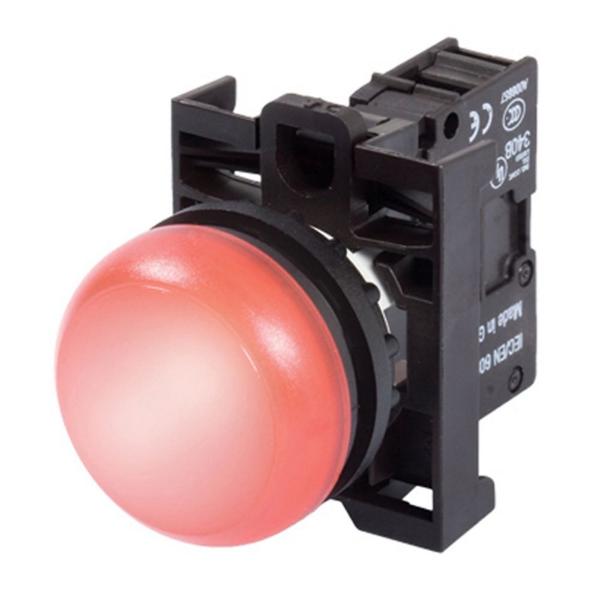

EATON M22-L-R-R Indicating Light, 22.5 mm Panel Mounting Size, Red, LED, 30 V AC/DC Max Volt

Item: BH4RVM
Model: M22-L-R-R
21 In Stock

Ships within 2 days via

£93.94
5.00% off
£89.24/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Actuator Type Flush
Height 1"
Illumination Illuminated
Includes Lamp Module Lamp Module Included
Includes Push-to-test No Push To Test Included
Ip Rating IP67, IP69K
Lamp Bulb Color Red
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Length 2"
Lens Color Red
Lens Material Plastic
Lens Type Domed
Light Color Red
Manufacturer Warranty Length 1 yr.
Max Lamp Bulb Voltage 30V AC/DC
Max Voltage Rating (supply) 30V AC/DC
Nema Enclosure Rating NEMA 13, NEMA 4X
Operating Cycles 10000 Hours Of Operation
Overall Depth 2.26"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 22 mm
Resistance Properties Corrosion Resistant
Series M22 Series
Standard Logo gost.png,ce.png
Terminal Connection Spring Cage
Type Complete Indicating Light
Voltage Rating 12-30V AC/DC
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 2"
standard BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED

Product Details

Pushbutton

Shipping Information

height 2.54
length 5.08
width 5.08
country of origin US
weight 0.045000
